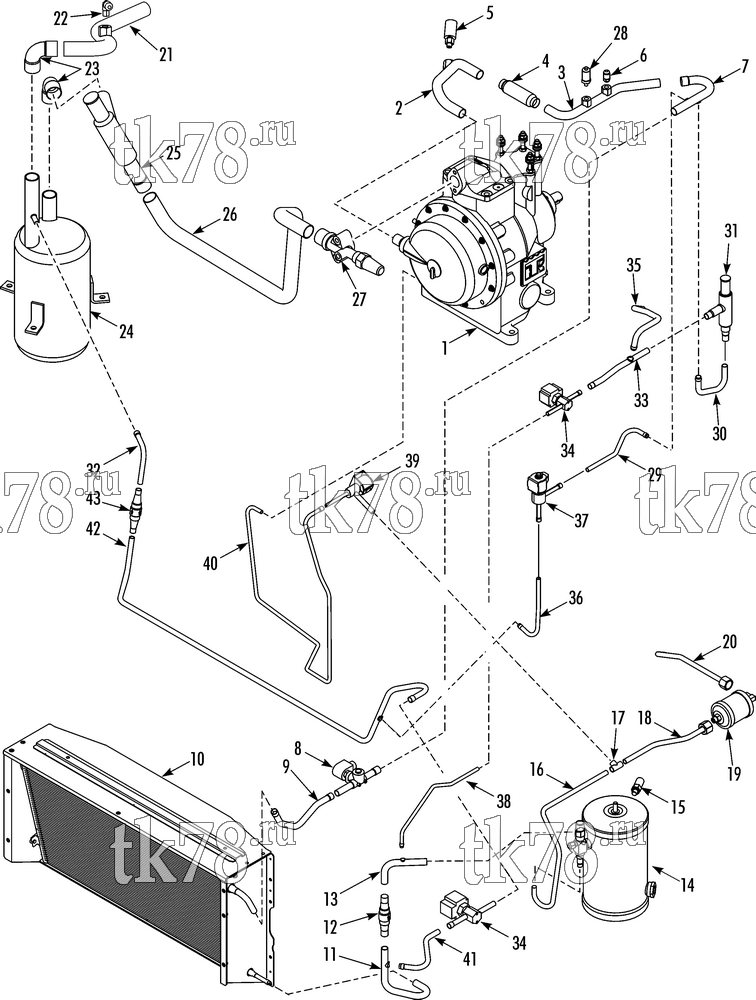

Установкa Thermo King схема REFRIGERATION - CONDENSER (T-1000 SPECTRUM w/ micro-channel coil) – 261A2
Обновление от: 2/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-951 | COMPRESSOR - scroll (see 235H4) | 1 | |
| 2 | 61-4683 | TUBE - compressor to strainer | 1 | |
| 3 | 61-4687 | TUBE - strainer to swage | 1 | |
| 4 | 61-4682 | STRAINER - discharge | 1 | |
| 5 | 41-3847 | SWITCH - hpco | 1 | |
| 41-3845 OEM | Выключатель HPCO, KD-II/MD-II/RD-II/MD-XXX / T/TS-Series | 10 040 ₽ |
|
|
|
PP-41-3847 | Выключатель HPCO, KD-II/MD-II/RD-II/MD-XXX / T/TS-Series | 3 080 ₽ |
|
| 6 | 11-2886 | VALVE | 1 | |
| 7 | 61-6146 | TUBE - joint to condenser valve | 1 | |
| 8 | 61-2950 | VALVE - condenser inlet | 1 | |
| 9 | 61-6067 | TUBE - valve to condenser | 1 | |
| 10 | 67-2726 | COIL - condenser/radiator (see 259E8) | 1 | |
|
10-67-2966 | Конденсатор, T-1000/1200 | 68 440 ₽ |
|
| PP-67-2966 | Конденсатор, T-1000/1200 | 36 500 ₽ |
|
|
| 11 | 61-6068 | TUBE - condenser to check valve | 1 | |
| 12 | 66-5722 | VALVE - check | 1 | |
| 13 | 61-6135 | TUBE - check vale to receiver tank | 1 | |
| 14 | 67-2708 | TANK - receiver (see 235H5) | 1 | |
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 16 | 61-6147 | TUBE - tank to tee | 1 | |
| 17 | 55-3251 | TEE | 1 | |
| 18 | 61-4662 | TUBE - tee to drier | 1 | |
| 19 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 20 | 61-5956 | TUBE - dehydrator to evaporator | 1 | |
| 21 | 61-4709 | TUBE - evaporator to elbow | 1 | |
| 66-3570 | FITTING - saddle | 1 | ||
| 22 | 11-5513 | VALVE - elbow | 1 | |
| 11-7777 | INSERT - valve | 1 | ||
| 55-1983 | CAP - valve | 1 | ||
| 23 | 55-3682 | ELBOW | 2 | |
| 24 | 67-2424 | TANK - accumulator | 1 | |
| 25 | 61-4527 | VALVE - pressure regulator (mechanical) | 1 | |
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| 26 | 61-4679 | TUBE - suction (mechanical valve) | 1 | |
| 27 | 66-3576 | VALVE - suction | 1 | |
| 28 | 41-7962 | TRANSDUCER - discharge | 1 | |
|
42-1312 OEM | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 29 680 ₽ |
|
|
10-42-1312 | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 10 060 ₽ |
|
| 29 | 61-4968 | TUBE - joint to valve | 1 | |
| 30 | 61-4665 | TUBE - joint to DPR valve | 1 | |
| 31 | 61-4526 | VALVE - DPR | 1 | |
| 32 | 61-5718 | TUBE - check valve to accumulator tank | 1 | |
| 33 | 61-4961 | TUBE - DPR to defrost solenoid | 1 | |
| 34 | 66-6384 | VALVE - defrost & purge | 2 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 35 | 61-6148 | TUBE - joint to evaporator | 1 | |
| 36 | 61-6149 | TUBE - hot gas bypass | 1 | |
| 37 | 61-2568 | VALVE - hot gas bypass | 1 | |
| 38 | 61-6150 | TUBE - check valve to receiver tank | 1 | |
| 39 | 61-2954 | VALVE - liquid injection | 1 | |
| 40 | 61-6106 | TUBE - valve to compressor | 1 | |
| 41 | 61-5960 | TUBE - joint to solenoid | 1 | |
| 42 | 61-6151 | TUBE - solenoid to check valve | 1 | |
| 43 | 61-5725 | VALVE - check | 1 |
