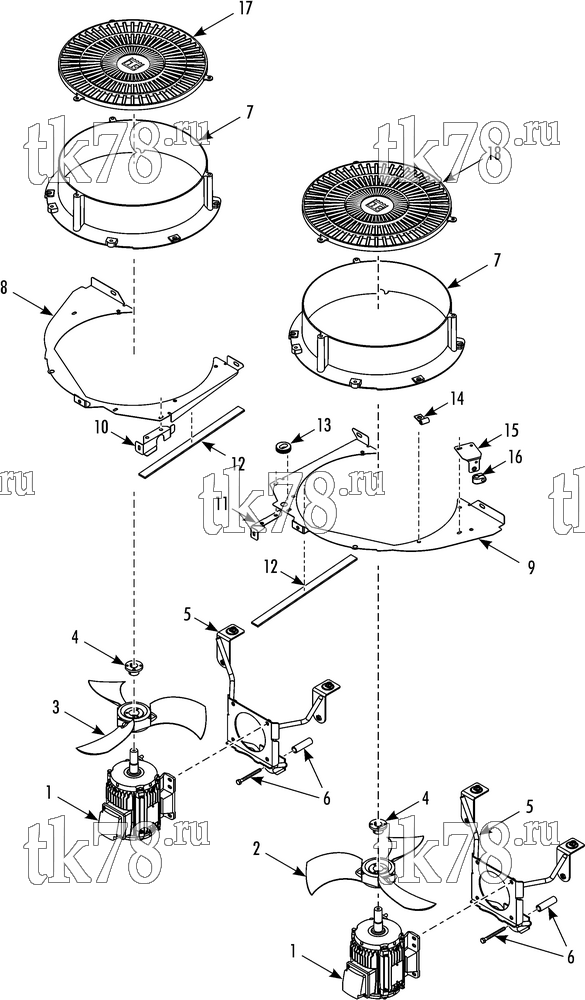

Установкa Thermo King схема CONDENSER FANS GROUP – 261A0
Обновление от: 8/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-804 | MOTOR - condenser | 2 | |
| 42-1280 | PROTECTOR - thermal | 1 | ||
| 51-2222 | SCREW - motor | 8 | ||
| 2 | 78-1879 | FAN - condenser (roadside, CCW) | 1 | |
| 3 | 78-1825 | FAN - condenser (curbside, CW) | 1 | |
| 4 | 77-3073 | BUSHING - fan | 2 | |
| 51-2222 | SCREW - bushing | 4 | ||
| 5 | 93-774 | BRACKET - motor (condenser) | 2 | |
| 51-2221 | SCREW - bracket | 8 | ||
| 6 | 51-2593 | BUSHING - bulkhead | 2 | |
| 51-891 | SCREW - bushing (90 mm) | 2 | ||
| 51-2594 | WASHER | 2 | ||
| 7 | 78-1841 | ORIFICE - fan | 2 | |
| 51-2596 | SCREW - orifice | 8 | ||
| 108-1850 | WASHER | 8 | ||
| 8 | 93-1217 | PANEL - fan (top, curbside) | 1 | |
| 9 | 93-1218 | PANEL - fan (top, roadside) | 1 | |
| 51-2199 | SCREW - panel (16 mm) | 5 | ||
| 51-2221 | SCREW - panel (20 mm) | 4 | ||
| 51-953 | WASHER | 9 | ||
| 10 | 92-9672 | SHIELD - condenser (curbside) | 1 | |
| 11 | 92-9671 | SHIELD - condenser (roadside) | 1 | |
| 51-2199 | SCREW - shield | 4 | ||
| 12 | 99-8562 | STRIP - sealing (25 ft, cut to length) | A/R | |
| 13 | 33-4923 | GROMMET | 1 | |
| 14 | 51-176 | CLAMP | 1 | |
| 15 | 93-235 | BRACKET - sensor | 1 | |
| 51-2199 | SCREW - bracket | 1 | ||
| 16 | 55-6388 | CLAMP - sensor | 1 | |
| 51-2198 | SCREW - clamp | 1 | ||
| 17 | 92-9673 | GRILLE - fan guard (curbside, CW) | 1 | |
| 18 | 93-395 | GRILLE - fan guard (roadside, CCW) | 1 | |
| 51-2596 | SCREW - grille | 6 |
