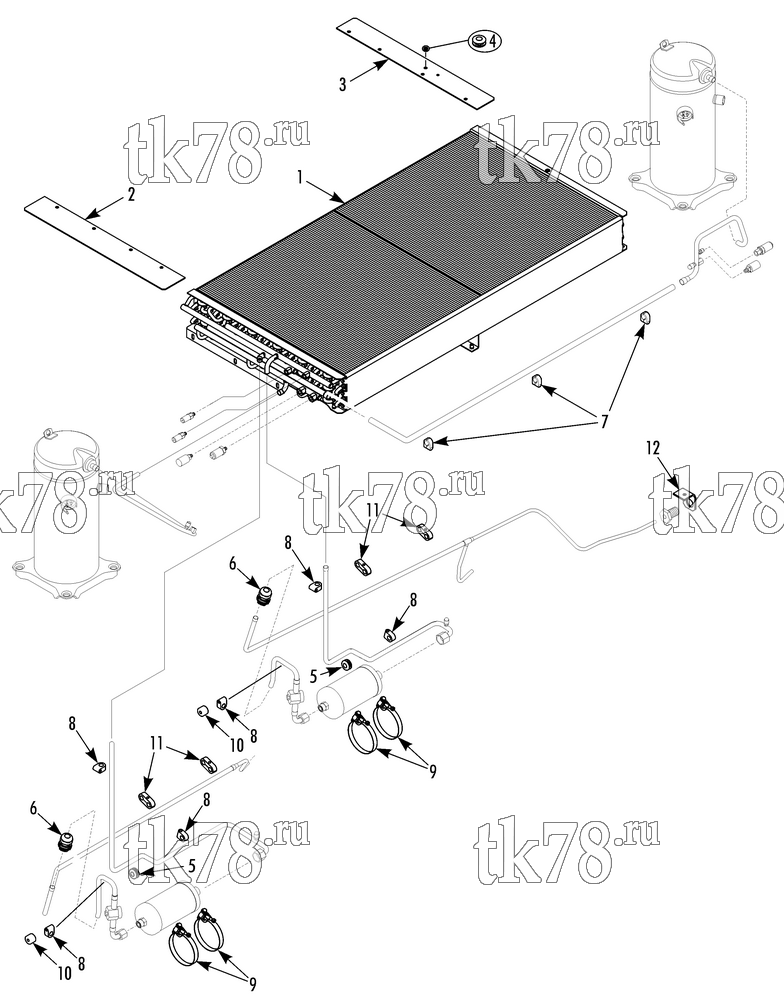

Установкa Thermo King схема CONDENSER MOUNTING & CLAMPS – 260C9
Обновление от: 5/1/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2692 | COIL - condenser | 1 | |
| 203-412 | SEALER - polyurethane | A/R | ||
| 92-2310 | SEALER - tape (1 in wide) | A/R | ||
| 2 | 92-9919 | PLATE - support (roadside) | 1 | |
| 3 | 92-8742 | PLATE - support (curbside) | 1 | |
| 55-2957 | SCREW - plate | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 4 | 33-558 | GROMMET (.250 id) | 1 | |
| 5 | 33-1809 | GROMMET (.50 id) | 2 | |
| 6 | 41-4817 | CONNECTOR - liquid tite | 2 | |
| 55-2635 | NUT | 2 | ||
| 41-5359 | WASHER - sealing | 2 | ||
| 7 | 91-758 | CLAMP - tube (.625 dia) | 3 | |
| 8 | 91-759 | CLAMP - tube (.50 dia) | 6 | |
| 55-4811 | SCREW - clamp (2.5 in long) | 4 | ||
| 55-7976 | SCREW - clamp (2.75 in long) | 2 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 9 | 55-7800 | CLAMP - dehydrator | 4 | |
| 10 | 51-2091 | SPACER | 2 | |
| 11 | 91-445 | CLAMP (2 tube) | 4 | |
| 12 | 92-8547 | BRACKET - liquid line | 1 | |
| 55-3565 | SCREW - bracket | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 |
