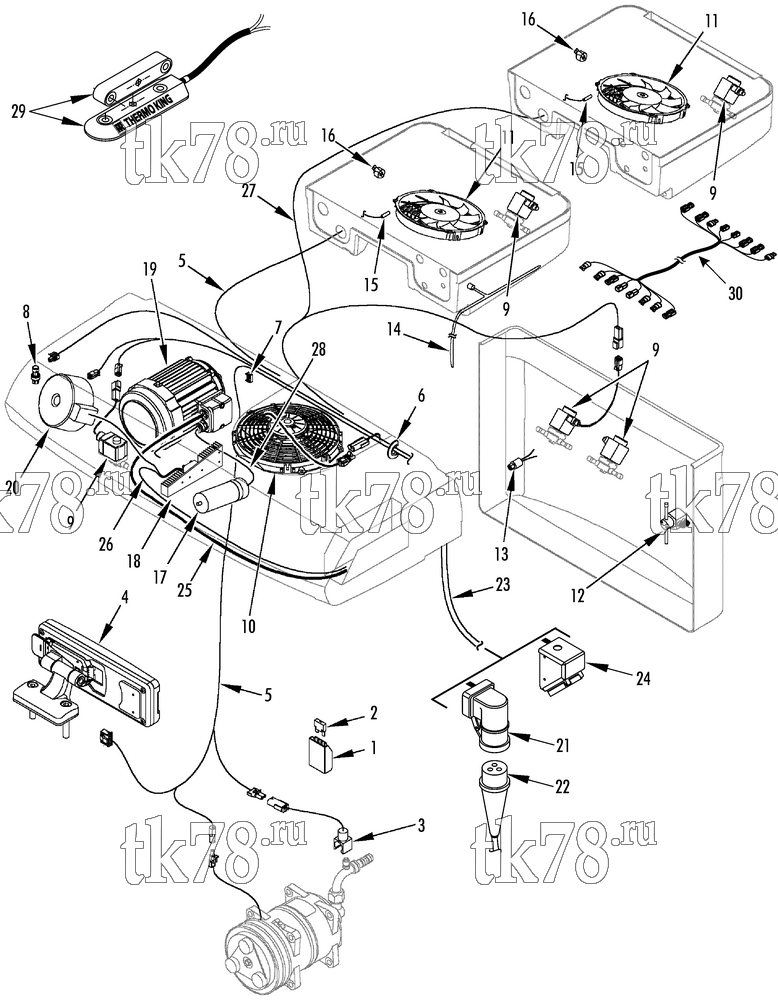

Установкa Thermo King схема ELECTRIC COMPONENTS (V-200/300 SPECTRUM 50) – 259G0
Обновление от: 6/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5785 | HOLDER - fuse | 1 | |
| 2 | 41-5786 | FUSE (40 amp) | 1 | |
| 3 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 4 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 5 | 42-852 | HARNESS - condenser (see 240C2) | 1 | |
| 6 | 33-2656 | GROMMET - harness | 2 | |
| 7 | 55-8212 | HOLDER - bandwrap | 2 | |
| 55-9915 | RIVET - holder | 2 | ||
| 55-2330 | BANDWRAP (3/4 dia) | A/R | ||
| 55-2332 | BANDWRAP (3/4 dia) | A/R | ||
| 8 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 9 | NSS | VALVE - solenoid (before Jul 12, see 193A5) | 5 | |
| NSS | VALVE - solenoid (Jul 12 & after, see 269A7) | 5 | ||
| 10 | 78-1375 | FAN - condenser (12V, draw) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1376 | FAN - condenser (24V, draw) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 11 | 78-1373 | FAN - evaporator (12V, blow) | 2 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V, blow) | 2 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 670 ₽ |
|
| 12 | 61-6116 | VALVE - solenoid (jet cool, see 269A7) | 1 | |
| 13 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 14 | 42-230 | HARNESS - drain heater (12V) | 1 | |
| 41-3156 | HARNESS - drain heater (24V) | 1 | ||
| 15 | 41-5784 | SENSOR - temperature | 2 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 16 | 41-3136 | SWITCH - defrost termination | 2 | |
| 51-2071 | SCREW - switch | 2 | ||
| 17 | 41-3785 | CAPACITOR - motor (50 Hz, 40UF, see 191C2) | 1 | |
| 41-3785 | CAPACITOR - motor (60 Hz, 40UF, see 191C2) | 1 | ||
| 18 | 41-9315 | RECTIFIER & RADIATOR assembly (12V) | 1 | |
| 41-9316 | RECTIFIER & RADIATOR assembly (24V) | 1 | ||
| 19 | NSS | MOTOR - standby (see 191C2) | 1 | |
| 20 | 41-7942 | TRANSFORMER | 1 | |
| 51-800 | SCREW - transformer | 1 | ||
| 51-799 | WASHER | 1 | ||
| 21 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-8941 | RECEPTACLE - power (400/3/50 - 5 pole, mates w/ 41-8942) | 1 | ||
| 41-3667 | RECEPTACLE - power (220/1/50, mates w/ 41-972) | 1 | ||
| 55-9502 | SCREW - receptacle | 4 | ||
| 22 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 41-972 | PLUG - power (220/1/50, mates w/ 41-3667) | 1 | ||
| 41-8942 | PLUG - power (400/3/50 - 5 pole, mates w/ 41-8941) | 1 | ||
| 23 | 41-5806 | CABLE - mains, 3 ph 50Hz (power socket to unit) | 1 | |
| 41-9126 | CABLE - mains, 3 ph 60Hz (power socket to unit) | 1 | ||
| 41-5809 | CABLE - mains, 1 ph 50Hz (power socket to unit) | 1 | ||
| 24 | NSS | RECEPTACLE BOX (60 Hz, see 162A3) | 1 | |
| 25 | 41-5826 | CABLE - power, 3 ph 50Hz (control box to motor) | 1 | |
| 41-7943 | CABLE - power, 3 ph 60Hz (control box to motor) | 1 | ||
| 41-5970 | CABLE - power (1 ph 50/60Hz, control box to motor) | 1 | ||
| 26 | 41-7356 | HARNESS - rectifier (12V) | 1 | |
| 41-7702 | HARNESS - rectifier (24V) | 1 | ||
| 27 | 41-5856 | HARNESS - multi temperature (DSR II, 20/50) | 1 | |
| 42-1067 | HARNESS - multi temperature (DSR III, 20/50) | 1 | ||
| 28 | 41-5971 | CABLE - extension (motor to capacitor, 1 ph, 50/60 Hz) | 1 | |
| 29 | 40-907 | SWITCH - door (see 212G7) | 1 | |
| 30 | 41-9911 | HARNESS - evaporator extension (2M) | 1 | |
| 42-984 | HARNESS - evaporator extension (5M) | 1 |
