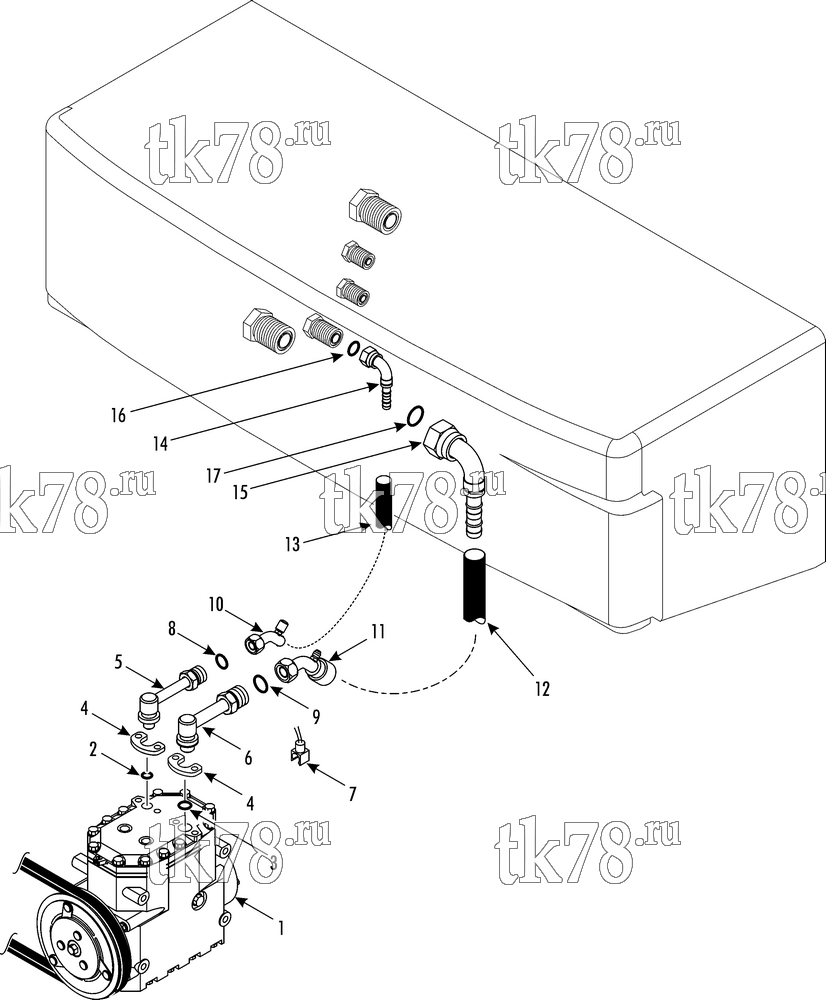

Установкa Thermo King схема HOSE GROUP V-500 MAX Plus – 259C1
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-799 | COMPRESSOR - TK 312R (12V, tube-O, see 200A7) | 1 | |
| 102-824 | COMPRESSOR - TK 312R (24V, tube-O, see 200A7) | 1 | ||
| 203-515 | OIL - compressor (solest 120,1 liter) | A/R | ||
| 203-505 | OIL - compressor (8 oz) | A/R | ||
| 2 | 33-3721 | O-RING - discharge | 1 | |
| 3 | 33-3720 | O-RING - suction | 1 | |
| 4 | 22-1176 | FLANGE - compressor | 2 | |
| 51-376 | SCREW - flange | 4 | ||
| 5 | 22-1321 | CONNECTOR - discharge (tube-O) | 1 | |
| 6 | 22-1320 | CONNECTOR - suction (tube-O) | 1 | |
| 7 | 44-9020 | SWITCH - thermo | 1 | |
| 8 | 33-2350 | O-RING - discharge (7/16 id) | 1 | |
| 9 | 33-672 | O-RING - suction (9/16 id) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 10 | 51-2444 | FITTING - 45 deg (tube-O, w/ charging port, #10) | 1 | |
| 11 | 51-1781 | FITTING - hose (45 deg, #16) | 1 | |
| 12 | 61-3048 | HOSE - refrigeration (compressor suction, #16 x 30 ft) | 1 | |
| 67-2192 | HOSE - refrigeration (compressor suction, #16 x 300 ft) | A/R | ||
| 13 | 61-637 | HOSE - refrigeration (compressor discharge, #10) | 1 | |
| 14 | 51-1807 | FITTING - discharge (90 deg, #10 hose, #8 fitting) | 1 | |
| 15 | 51-2498 | FITTING - suction (90 deg, #16 hose, #12 fitting) | 1 | |
| 16 | 33-566 | O-RING (1/2 id, #8) | 1 | |
| 17 | 33-1222 | O-RING (3/4 id, #12) | 1 |
