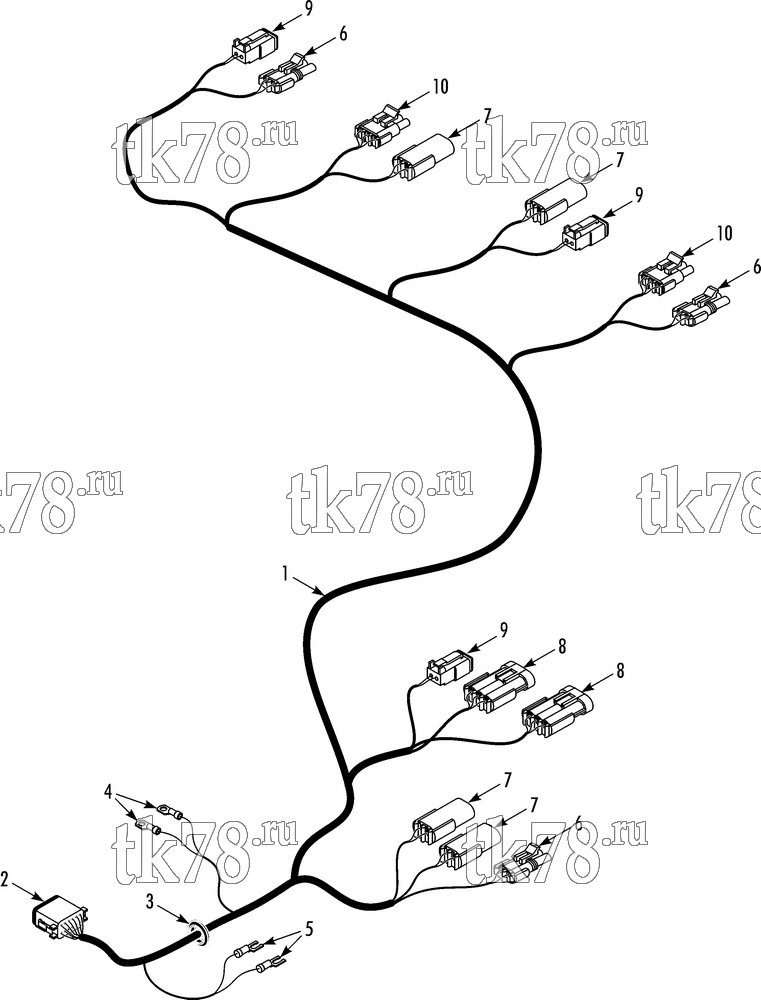

Установкa Thermo King схема MAIN HARNESS EXTENSION – 259B3
Обновление от: 12/27/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-368 | HARNESS - main (addition) | 1 | |
| 2 | 44-9600 | PLUG (12-pin) | 1 | |
| 44-9601 | WEDGE | 1 | ||
| 44-9587 | SOCKET (18 ga) | 7 | ||
| 3 | 33-3539 | GROMMET | 1 | |
| 4 | 44-2792 | TERMINAL - ring (yellow #10, 12-10 ga) | 2 | |
| 5 | 41-280 | TERMINAL - fork (red #6, 22-16 ga) | 2 | |
| 6 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 6 | ||
| 7 | 44-5835 | CONNECTOR - shroud (2-pin) | 4 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 8 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 8 | ||
| 8 | 44-9569 | CONNECTOR - shroud (3-pin) | 2 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 8 | ||
| 9 | 44-9585 | PLUG (2-pin) | 3 | |
| 44-9586 | WEDGE | 3 | ||
| 44-9587 | SOCKET (18 ga) | 6 | ||
| 10 | 44-6959 | CONNECTOR - tower (3-pin) | 2 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 6 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 6 |
