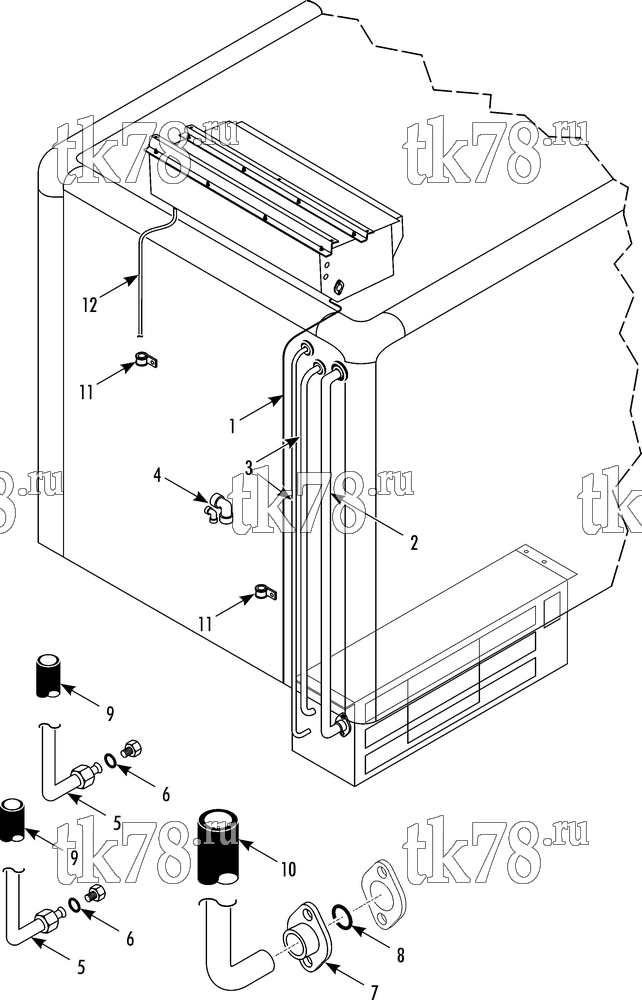

Установкa Thermo King схема UTSE INSTALLATION – 259A7
Обновление от: 5/16/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8061 | HARNESS - evaporator | 1 | |
| 2 | N/A | TUBE - suction (1-3/8, dealer supplied) | 1 | |
| 3 | N/A | TUBE - liquid & hot gas (1/2, dealer supplied) | 1 | |
| 4 | 55-1464 | ELBOW - hot gas (street 1/2 ftg 1/2 sld) | 1 | |
| 55-8812 | ELBOW - hot gas (solder 1/2x1/2) | 5 | ||
| 55-3094 | ELBOW - suction (solder 1-3/8x1-3/8) | 6 | ||
| 5 | 61-5882 | TUBE - liquid & hot gas (ORS fitting) | 2 | |
| 6 | 33-566 | O-RING - liquid & hot gas (1/2, #6) | 2 | |
| 7 | 66-3687 | FLANGE - suction (1-3/8) | 1 | |
| 55-129 | SCREW - flange | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-289 | NUT | 2 | ||
| 8 | 33-728 | O-RING - suction (1-5/8) | 1 | |
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 9 | 92-4439 | TUBE - rubber (liquid & hot gas) | 6 | |
| 10 | 98-4836 | TUBE - rubber (suction, 1-3/8 id) | 3 | |
| 11 | 55-546 | CLAMP (.25 dia) | A/R | |
| 55-2239 | CLAMP (.38 dia) | A/R | ||
| 55-548 | CLAMP (.43 dia) | A/R | ||
| 55-3065 | CLAMP (.5 dia) | A/R | ||
| 55-3598 | CLAMP (1.4 dia) | A/R | ||
| 55-2666 | CLAMP (1.44 dia) | A/R | ||
| 55-6531 | SCREW - clamp | A/R | ||
| 12 | 92-1442 | TUBE - defrost drain | 2 |
