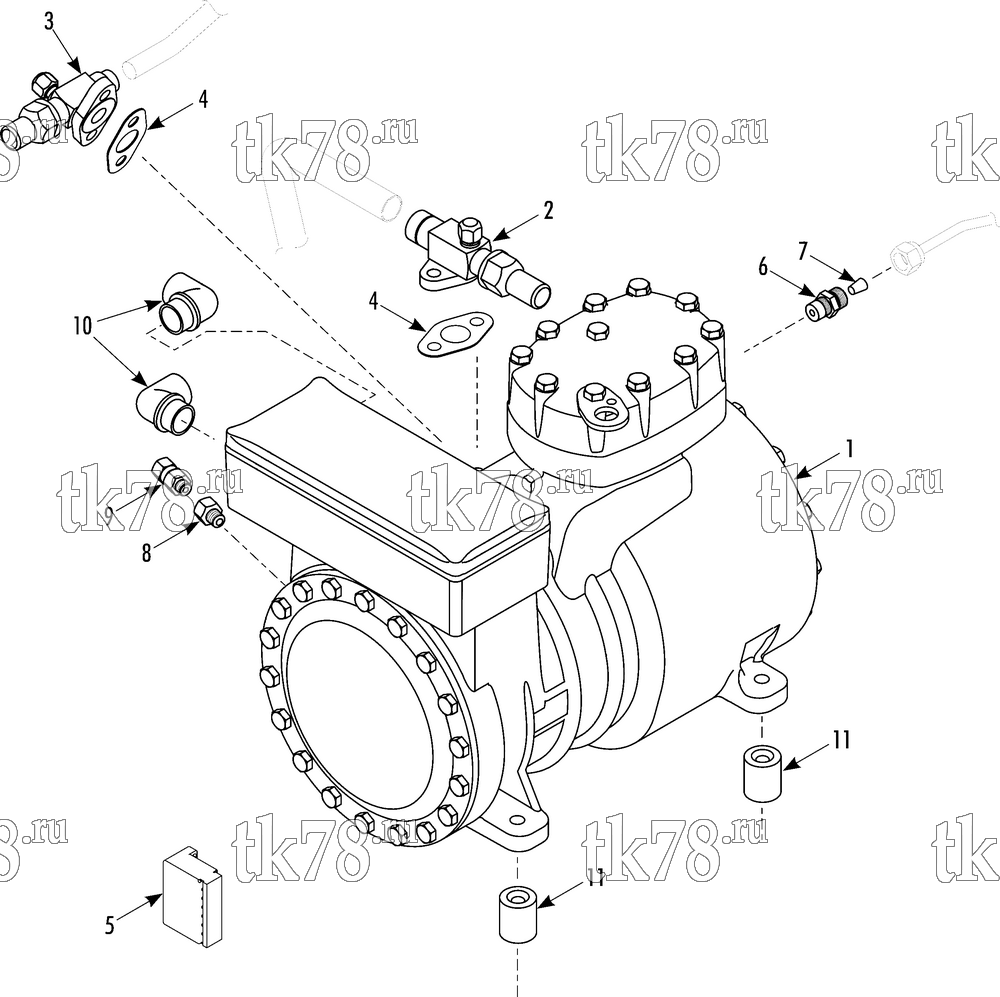

Установкa Thermo King схема COMPRESSOR GROUP (20 & 50 units) – 259A6
Обновление от: 8/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-858 | COMPRESSOR (D2 11, 230/3/60, see 201C1) | 1 | |
| 102-860 | COMPRESSOR (D2 11, 230/1/60, see 201C1) | 1 | ||
| 203-515 | OIL - compressor (solest 120,1 liter) | A/R | ||
| 2 | 61-1425 | VALVE - suction | 1 | |
| 3 | 61-5562 | VALVE - discharge | 1 | |
| 4 | 33-3625 | GASKET - valve | 2 | |
| 5 | 41-901 | MODULE - control | 1 | |
| 6 | 55-9617 | FITTING - oil tube (#4) | 2 | |
| 33-1461 | O-RING | 2 | ||
| 7 | 61-2694 | FILTER - Jet Cool | 1 | |
| 8 | 61-2060 | ADAPTER - valve | 1 | |
| 9 | 61-1193 | VALVE - relief | 1 | |
| 10 | 51-828 | ELBOW - power cable | 2 | |
| 51-826 | PACKING | 2 | ||
| 33-3945 | SEAL | 2 | ||
| 51-827 | NUT | 2 | ||
| 11 | 51-1565 | SPACER - compressor | 4 | |
| 55-6987 | SCREW - compressor | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-9485 | LOCKWASHER | 4 | ||
| 55-7339 | NUT | 4 |
