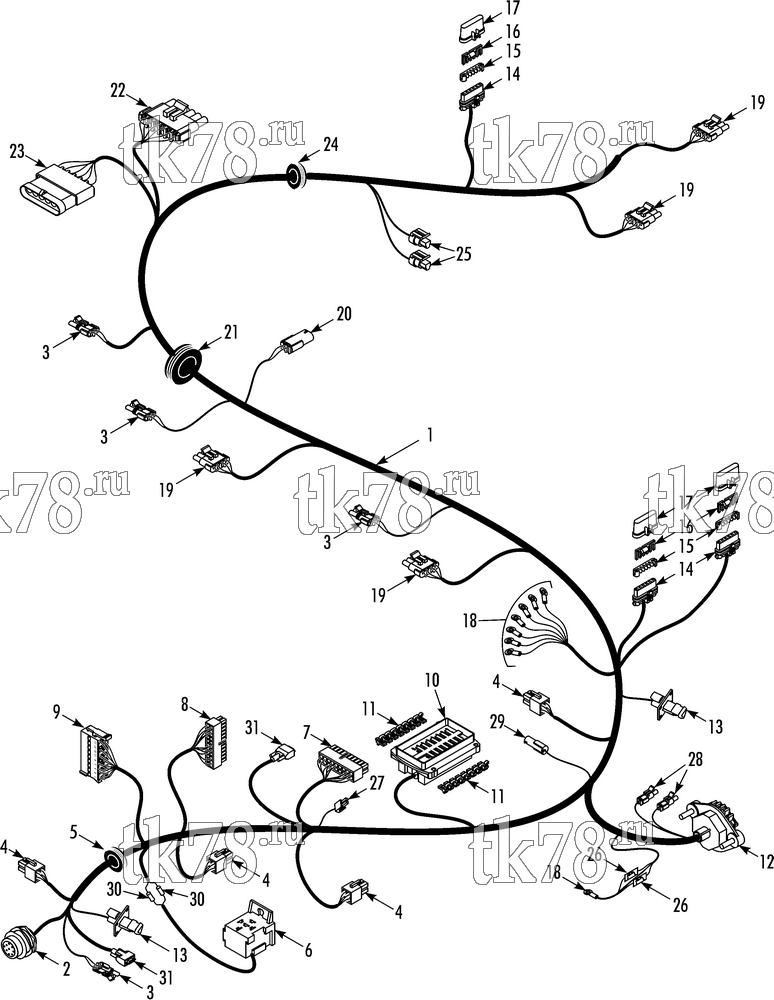

Установкa Thermo King схема MAIN HARNESS - IntelligAIRE III – 258C8
Обновление от: 1/20/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-381 | HARNESS - main IntelligAIRE III | 1 | |
| 2 | 41-9446 | RECEPTACLE (9-pin) | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 6 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 41-9447 | LOCKWASHER | 1 | ||
| 41-9448 | NUT | 1 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 4 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 4 | 41-654 | CONNECTOR - in line (4-pin) | 4 | |
| 41-1807 | SOCKET (18-24 ga) | 16 | ||
| 5 | 33-4807 | GROMMET (1.25 id) | 1 | |
| 6 | 44-5537 | SOCKET - relay | 1 | |
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 4 | ||
| 7 | 41-656 | CONNECTOR - male (24-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 24 | ||
| 8 | 41-650 | CONNECTOR - male (18-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 18 | ||
| 9 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (.5 mm) | 11 | ||
| 10 | 42-145 | FUSE - panel (20 pole, w/cover) | 1 | |
| 41-8841 | TERMINAL - fuse (14-16 awg) | 20 | ||
| 11 | 41-6723 | FUSE - holder lock | 5 | |
| 12 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 2 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 20 | ||
| 44-8681 | SEAL - cable (red) | 20 | ||
| 44-7812 | PLUG - cavity (green) | 2 | ||
| 13 | 41-7082 | RECEPTACLE (3-pin, w/square flange) | 2 | |
| 44-9545 | WEDGE | 2 | ||
| 41-8832 | PIN (gold, 18 ga) | 4 | ||
| 44-9602 | PIN - sealing | 2 | ||
| 14 | 41-1789 | CONNECTOR (6-pin) | 3 | |
| 41-4229 | TERMINAL - female (16 ga) | 20 | ||
| 44-8681 | SEAL - cable (red) | 20 | ||
| 15 | 41-1790 | LOCK - secondary | 3 | |
| 16 | 41-1788 | BUSBAR | 3 | |
| 17 | 41-1787 | COVER | 3 | |
| 18 | 44-5089 | TERMINAL - ring (yellow 3/8, 12-10 ga) | 5 | |
| 44-2786 | TERMINAL - ring (blue 3/8, 16-14 ga) | 3 | ||
| 19 | 44-7881 | CONNECTOR - tower (4-pin) | 4 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 16 | ||
| 44-8681 | SEAL - cable (red) | 16 | ||
| 20 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 1 | ||
| 44-5836 | TERMINAL - male (16-14 ga) | 1 | ||
| 44-6324 | SEAL - cable (blue) | 1 | ||
| 44-8681 | SEAL - cable (red) | 1 | ||
| 21 | 33-3608 | GROMMET (1-1/8 id) | 1 | |
| 22 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 6 | ||
| 44-6324 | SEAL - cable (blue) | 6 | ||
| 23 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 6 | ||
| 44-6324 | SEAL - cable (blue) | 6 | ||
| 24 | 33-810 | GROMMET (3/4 id) | 1 | |
| 25 | 41-2328 | CONNECTOR (3-pin) | 2 | |
| 44-9240 | TERMINAL - female (20-16 ga) | 6 | ||
| 44-5840 | BANDWRAP - red (.75 dia) | 1 | ||
| 44-4303 | BANDWRAP - blue (.75 dia) | 1 | ||
| 26 | 41-9468 | RESISTOR (1500 ohm) | 2 | |
| 41-9445 | HEATSHRINK (2.25 in long) | A/R | ||
| 55-2330 | BANDWRAP - black (1.75 dia) | A/R | ||
| 41-7681 | HEATSHRINK (1.5 in long) | A/R | ||
| 27 | 41-1507 | CONNECTOR (2-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 2 | ||
| 28 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 44-6324 | SEAL - cable (blue) | 2 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 29 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 1 | ||
| 44-6324 | SEAL - cable (blue) | 1 | ||
| 30 | 44-5763 | DIODE | 2 | |
| 41-9445 | HEATSHRINK (2.25 in long) | 4 | ||
| 31 | 42-383 | CABLE - download | 1 |
