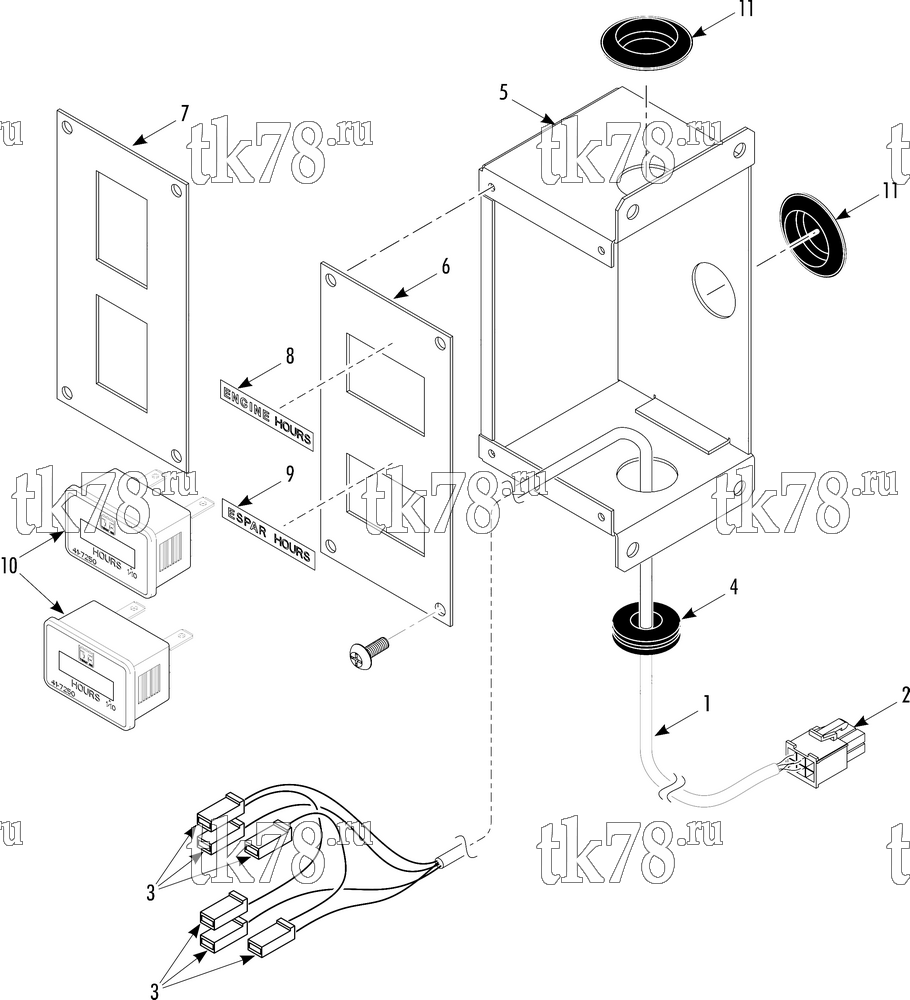

Установкa Thermo King схема HOURMETER GROUP (Optional, After 2/12) – 258A2
Обновление от: 6/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-334 | HARNESS - hourmeter | 1 | |
| 2 | 41-6258 | PLUG (6-pin) | 1 | |
| 41-4750 | SOCKET (20-16 awg) | 4 | ||
| 3 | 44-6381 | CONNECTOR - female (1-pin) | 6 | |
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 4 | ||
| 55-7702 | TERMINAL - fingrip (16-18 ga) | 2 | ||
| 4 | 33-1105 | GROMMET | 1 | |
| 5 | 92-6199 | CASE - hourmeter | 1 | |
| 55-4829 | SCREW - case | 4 | ||
| 6 | 92-6197 | PLATE - hourmeter (horizontal) | 1 | |
| 7 | 92-6198 | PLATE - hourmeter (vertical) | 1 | |
| 8 | 92-6200 | NAMEPLATE - Engine Hours | 1 | |
| 9 | 92-6201 | NAMEPLATE - Espar Hours | 1 | |
| 10 | 41-7250 | HOURMETER | 2 | |
| 11 | 55-7667 | PLUG - button | 2 |
