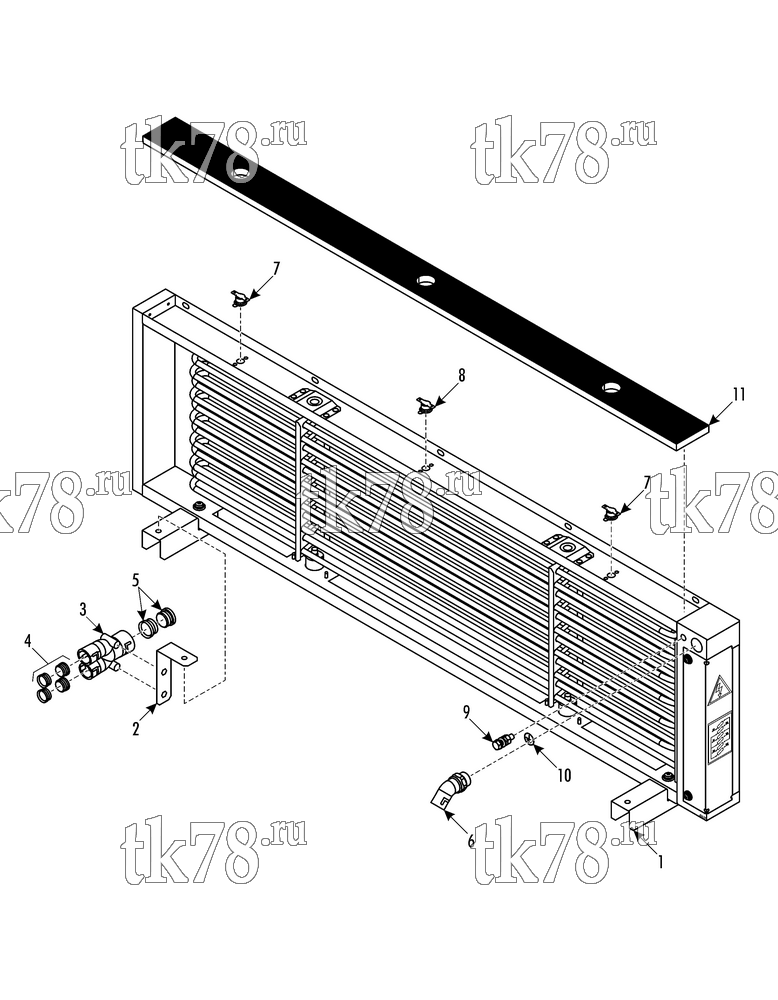

Установкa Thermo King схема HEATER – 257H5
Обновление от: 12/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2414 | HEATER | 1 | |
| 2 | 93-326 | HOLDER | 1 | |
| 55-6994 | SCREW - heater & holder | 7 | ||
| 55-9190 | WASHER - spring | 7 | ||
| 55-8893 | FLATWASHER | 7 | ||
| 3 | 92-7461 | COUPLER - 3 way | 1 | |
| 55-7027 | SCREW - coupler | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-9837 | NUT - captive | 2 | ||
| 4 | 41-7977 | INSERT - seal | 4 | |
| 5 | 41-8135 | INSERT - seal | 2 | |
| 6 | 51-709 | BUSHING - cable | 1 | |
| 41-5619 | WASHER - sealing | 1 | ||
| 55-9711 | LOCKNUT | 1 | ||
| 7 | 41-5937 | SWITCH - temperature, 70 deg C | 2 | |
| 8 | 41-3790 | SWITCH - temperature, 140 deg C | 1 | |
| 55-9195 | SCREW - switches | 6 | ||
| 55-7750 | LOCKWASHER | 6 | ||
| 55-8410 | FLATWASHER | 6 | ||
| 9 | 55-6987 | SCREW - grounding | 1 | |
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 10 | 92-783 | LABEL - ground | 1 | |
| 11 | 92-9184 | INSULATION | 1 |
