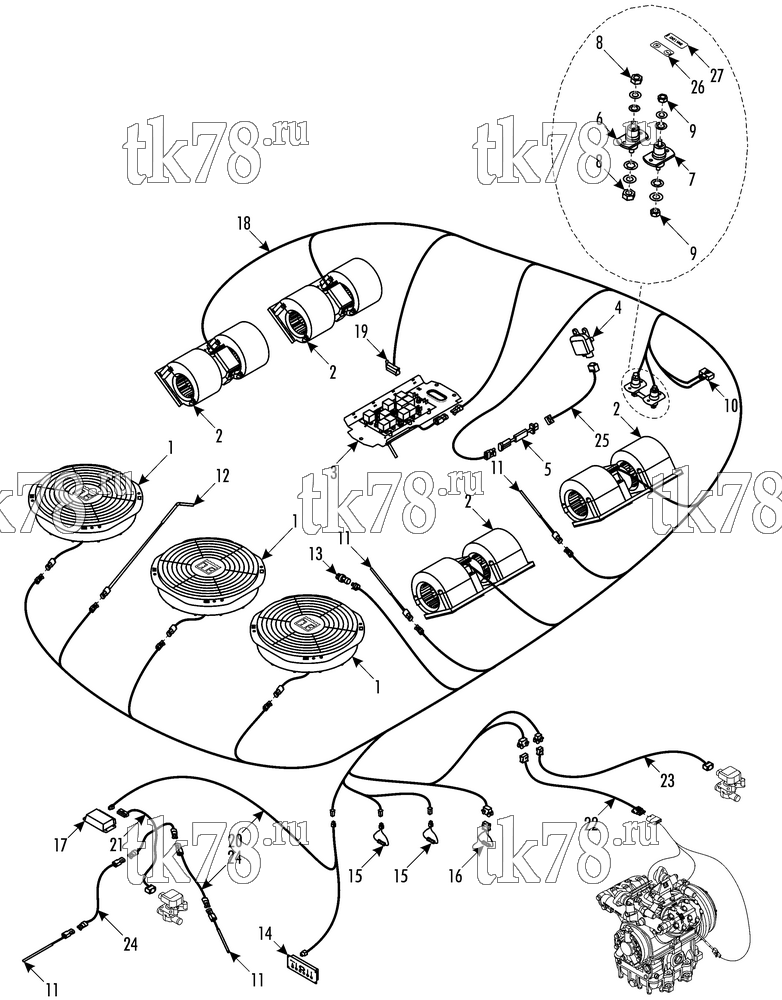

Установкa Thermo King схема ELECTRICAL COMPONENTS – 257E9
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN - assembly | 3 | |
| 2 | 78-1297 | BLOWER | 4 | |
| 55-7696 | SCREW - blower | 16 | ||
| 55-7861 | LOCKWASHER | 16 | ||
| 55-7697 | FLATWASHER | 16 | ||
| 55-7866 | NUT - captive | 16 | ||
| 3 | NSS | CONTROL PANEL (see 257E8) | 1 | |
| 4 | 41-3255 | SERVOMOTOR | 1 | |
| 5 | 41-7190 | CONTROLLER - servomotor | 1 | |
| 6 | 41-9742 | CONNECTOR (M8, positive) | 1 | |
| 7 | 41-9743 | CONNECTOR (M10, positive) | 1 | |
| 55-6994 | SCREW - connectors | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 8 | 305-1653 | NUT (M8) | 2 | |
| 55-8955 | FLATWASHER | 2 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 9 | 55-9189 | NUT (M10) | 2 | |
| 55-448 | FLATWASHER | 2 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 10 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 55-7863 | SCREW - supressor | 1 | ||
| 55-7830 | FLATWASHER | 2 | ||
| 55-7864 | NUT | 1 | ||
| 11 | 41-4157 | SENSOR - temperature | 4 | |
| 12 | 41-4335 | SENSOR - temperature | 1 | |
| 13 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 14 | 41-8403 | ClimaAIRE I D | 1 | |
| 15 | 41-8787 | TERMINATOR - CAN | 2 | |
| 16 | 41-9798 | TERMINATOR - CAN | 1 | |
| 17 | 41-8142 | MODULE - floor, CAN | 1 | |
| 18 | 42-566 | HARNESS - X500/X700 CANAIRE | 1 | |
| 19 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 20 | 42-563 | HARNESS - CAN, CA I D x unit (9m, for connectors see 252E9) | 1 | |
| 42-559 | HARNESS - CAN, CA I D x unit (12m, for connectors see 252E9) | 1 | ||
| 21 | 42-561 | HARNESS - floor water valve (2m, for connectors see 252E9) | 1 | |
| 22 | 42-558 | HARNESS - compressor (10.5m, for connectors see 252E9) | 1 | |
| 23 | 42-560 | HARNESS - control panel x water valve (15.5m, for connectors see 252E9) | 1 | |
| 24 | 42-564 | HARNESS - extension temperature sensor (9m, for connectors see 252E9) | 2 | |
| 25 | 42-562 | HARNESS - servomotor extension (7m, for connectors see 252E9) | 1 | |
| 26 | 91-7509 | NAMEPLATE - Positive/Negative | 1 | |
| 27 | 91-7543 | NAMEPLATE - 24VDC | 1 |
