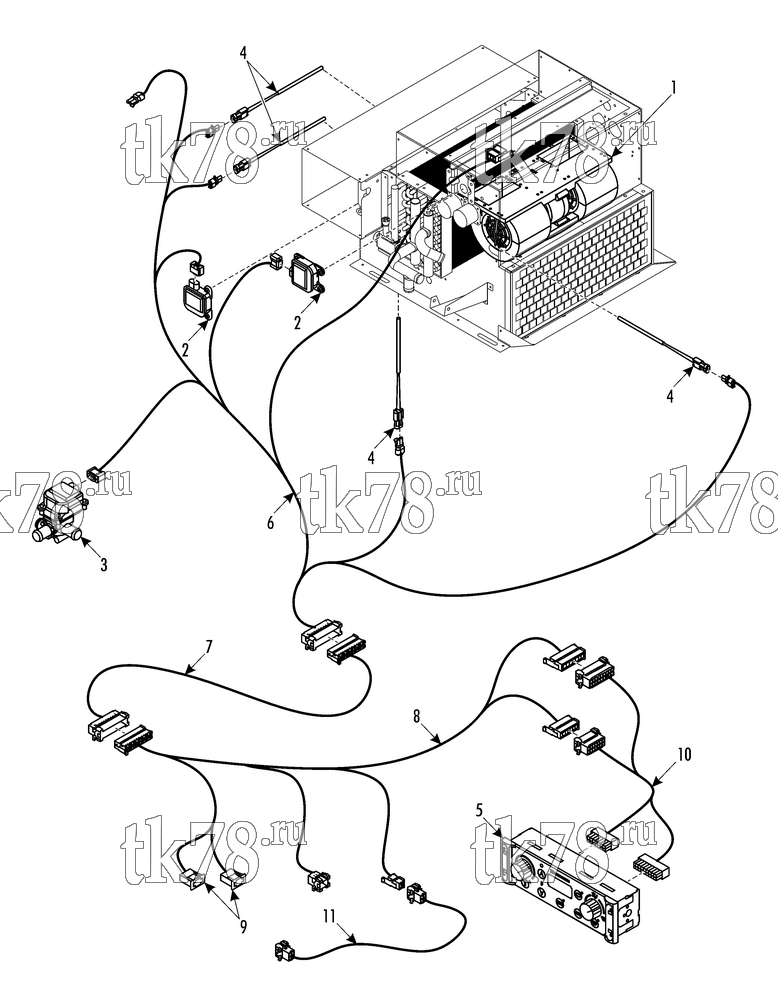

Установкa Thermo King схема ELECTRICAL COMPONENTS – 257E5
Обновление от: 6/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1679 | BLOWER | 1 | |
| 2 | 41-3255 | SERVOMOTOR | 2 | |
| 3 | 41-5649 | VALVE - water | 1 | |
| 4 | 41-4157 | SENSOR - temperature | 4 | |
| 5 | 45-2129 | FrontAIRE II | 1 | |
| 6 | 42-567 | HARNESS - front box brushless (for connectors see 257E6) | 1 | |
| 7 | 41-7332 | HARNESS - control panel - front box, 5 m | 1 | |
| 8 | 41-7337 | HARNESS - control FA II dependent (for connectors see 257E6) | 1 | |
| 9 | 41-4965 | HOLDER - fuse | 2 | |
| 41-1292 | FUSE (5 amp, 32 V) | 1 | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp, 32 V) | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 10 | 41-7339 | HARNESS - control panel x driver panel (heat, cool dependent, 5 m, for connectors see 257E6) | 1 | |
| 11 | 41-7348 | HARNESS - control panel (liquid solenoid valve, 6 m, for connectors see 257E6) | 1 |
