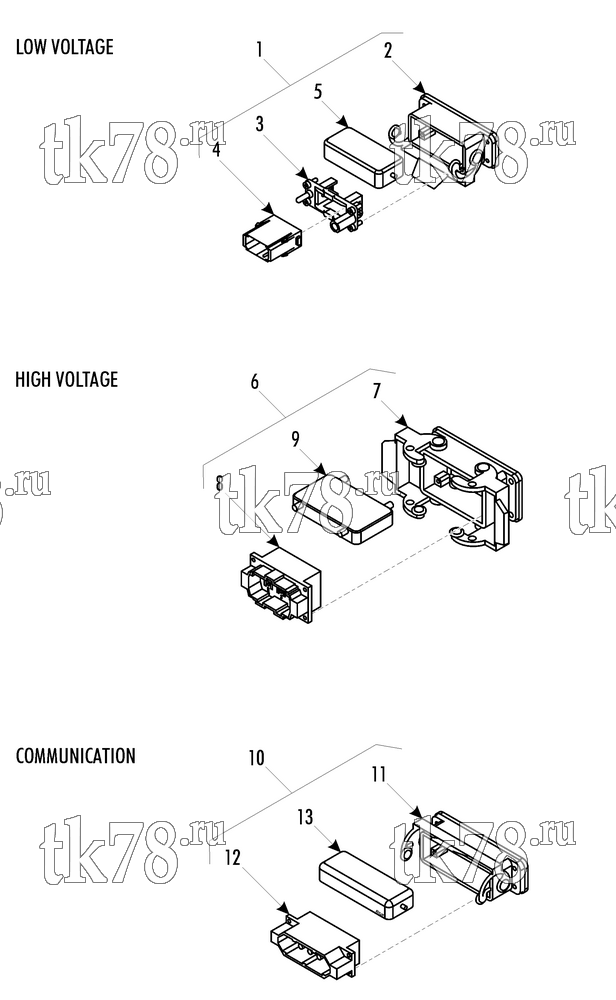

Установкa Thermo King схема MAIN UNIT CONNECTORS – 257A8
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8033 | CONNECTOR - low voltage | 1 | |
| 2 | 41-6919 | HOUSING - connector | 1 | |
| 3 | 41-5928 | FRAME - fixing | 1 | |
| 4 | 41-5300 | COVER - connector, male | 1 | |
| 5 | 41-6920 | CAP - connector | 1 | |
| 6 | 41-8032 | CONNECTOR - high voltage | 1 | |
| 7 | 41-5579 | HOUSING - connector | 1 | |
| 8 | 41-5580 | CORE - connector (3-pin) | 1 | |
| 9 | 41-5581 | CAP - connector | 1 | |
| 10 | 41-8034 | CONNECTOR - communication | 1 | |
| 11 | 41-6914 | HOUSING - connector | 1 | |
| 12 | 41-6915 | CORE - connector (25-pin) | 1 | |
| 13 | 41-6916 | CAP - connector | 1 | |
| 55-8382 | SCREW - connectors | 12 | ||
| 55-7750 | LOCKWASHER | 24 | ||
| 55-7749 | NUT | 12 |
