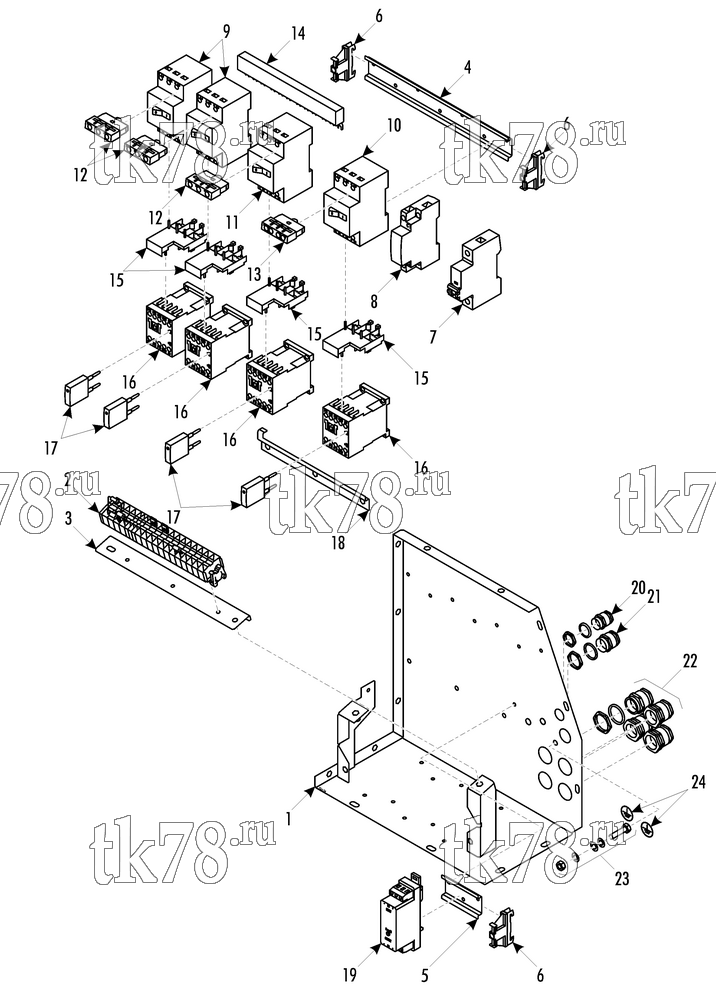

Установкa Thermo King схема CONTROL BOX BOARD – 257A7
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-5193 | BASE | 1 | |
| 51-190 | NUT - captive | 7 | ||
| 2 | NSS | TERMINAL (see 206G9) | 1 | |
| 3 | 41-6926 | SUPPORT - terminal | 1 | |
| 55-7366 | SCREW - support | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 51-190 | NUT - captive | 2 | ||
| 4 | 92-5194 | RAIL (DIN) | 1 | |
| 5 | 92-5195 | RAIL (DIN) | 1 | |
| 51-1183 | RIVET - rail | 10 | ||
| 6 | 91-6465 | CLAMP | 3 | |
| 7 | 41-5602 | BREAKER - circuit (6 amp) | 1 | |
| 8 | 41-3811 | RELAY - shunt-release | 1 | |
| 9 | 41-5601 | BREAKER - circuit (0.5 amp) | 2 | |
| 10 | 41-3806 | BREAKER - circuit (10 amp) | 1 | |
| 11 | 41-3809 | BREAKER - circuit (6.3 amp) | 1 | |
| 12 | 41-2931 | BLOCK - contact, auxiliary | 3 | |
| 13 | 41-5266 | BLOCK - contact, auxiliary | 1 | |
| 14 | 41-3801 | BUSBAR | 1 | |
| 15 | 41-3807 | ELEMENT - coupling | 4 | |
| 16 | 41-3802 | CONTACTOR (3kW) | 4 | |
| 17 | 41-3812 | MODULE - suppressor | 4 | |
| 18 | 92-5196 | BRACKET - breaker | 1 | |
| 55-7407 | SCREW - bracket | 3 | ||
| 55-7171 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 51-190 | NUT - captive | 3 | ||
| 19 | 41-5727 | ARRESTER - overvoltage | 1 | |
| 20 | 51-711 | BUSHING - cable | 1 | |
| 51-895 | WASHER - sealing | 1 | ||
| 51-712 | LOCKNUT | 1 | ||
| 21 | 55-9554 | BUSHING | 1 | |
| 51-843 | WASHER - sealing | 1 | ||
| 55-9558 | LOCKNUT | 1 | ||
| 22 | 55-9710 | BUSHING | 4 | |
| 41-5619 | WASHER - sealing | 4 | ||
| 55-9711 | LOCKNUT | 4 | ||
| 23 | 55-7035 | SCREW - ground | 1 | |
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 24 | 92-783 | LABEL - ground | 2 |
