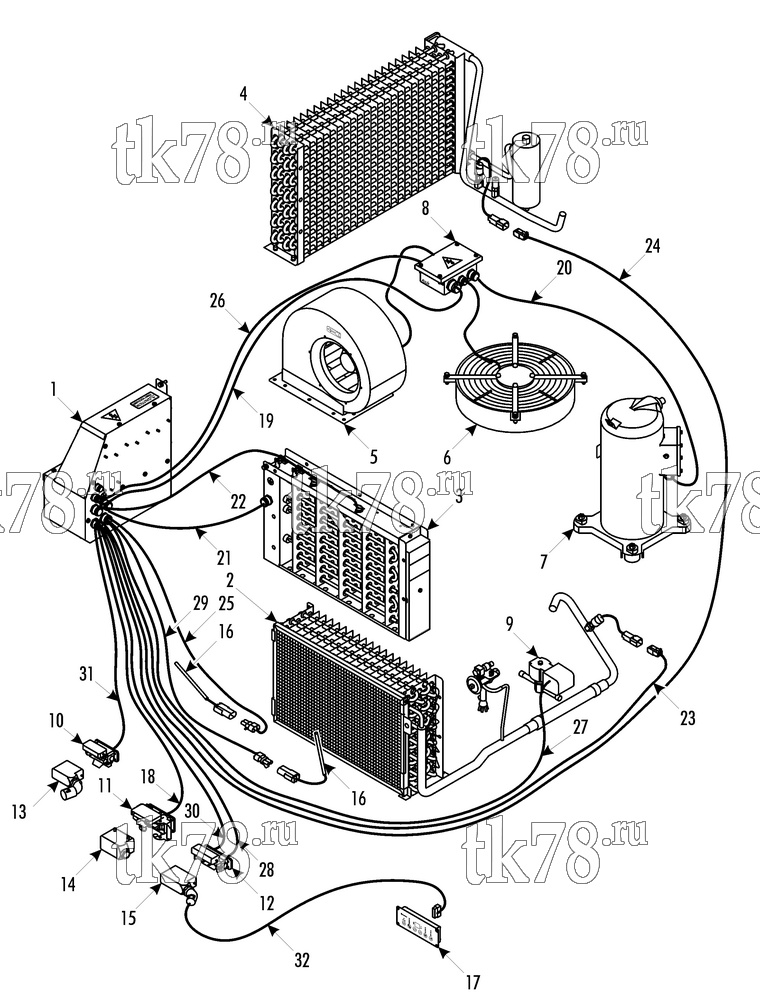

Установкa Thermo King схема ELECTRICAL COMPONENTS – 257A5
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL BOX (see 257A6) | 1 | |
| 2 | NSS | EVAPORATOR (see 257A4) | 1 | |
| 3 | NSS | HEATER (see 206G5) | 1 | |
| 4 | NSS | CONDENSER (see 257A4) | 1 | |
| 5 | NSS | BLOWER (see 198H4) | 1 | |
| 6 | NSS | FAN (see 186F5) | 1 | |
| 7 | NSS | COMPRESSOR (see 186G8) | 1 | |
| 8 | NSS | JUNCTION BOX (see 186G7) | 1 | |
| 9 | 61-382 | SOLENOID (see 257A4) | 1 | |
| 10 | 41-8033 | CONNECTOR - low voltage (see 257A8) | 1 | |
| 11 | 41-8032 | CONNECTOR - high voltage (see 257A8) | 1 | |
| 12 | 41-8034 | CONNECTOR - communication (see 257A8) | 1 | |
| 13 | 42-385 | CONNECTOR - low voltage (see 257A9) | 1 | |
| 14 | 40-1039 | CONNECTOR - high voltage (see 257A9) | 1 | |
| 15 | 40-1040 | CONNECTOR - communication (see 257A9) | 1 | |
| 16 | 41-4157 | SENSOR - temperature (connector incl.) (for connectors see 257A0) | 2 | |
| 17 | 41-7211 | ClimaAIRE I D | 1 | |
| 18 | 41-6923 | HARNESS - power input | 1 | |
| 19 | 41-6370 | CABLE - power supply | 1 | |
| 20 | 41-6371 | CABLE - compressor supply | 1 | |
| 21 | 41-6954 | HARNESS - heater supply | 1 | |
| 22 | 41-6955 | HARNESS - heater temperature switches | 1 | |
| 23 | 41-6372 | CABLE - low pressure switch (for connectors see 257A0) | 1 | |
| 24 | 41-6373 | CABLE - high pressure switch (for connectors see 257A0) | 1 | |
| 25 | 41-6374 | CABLE - temperature sensor, RTS (for connectors see 257A0) | 1 | |
| 26 | 41-6952 | CABLE - condenser fan overload | 1 | |
| 27 | 41-6956 | CABLE - solenoid | 1 | |
| 28 | 41-6924 | CABLE - temperature sensor, CTS & RTS | 1 | |
| 29 | 41-6377 | CABLE - temperature sensor, CTS (for connectors see 257A0) | 1 | |
| 30 | 41-6957 | HARNESS - unit control | 1 | |
| 31 | 41-6921 | HARNESS - low voltage outlet supply | 1 | |
| 32 | 42-386 | HARNESS - low voltage control outlet | 1 |
