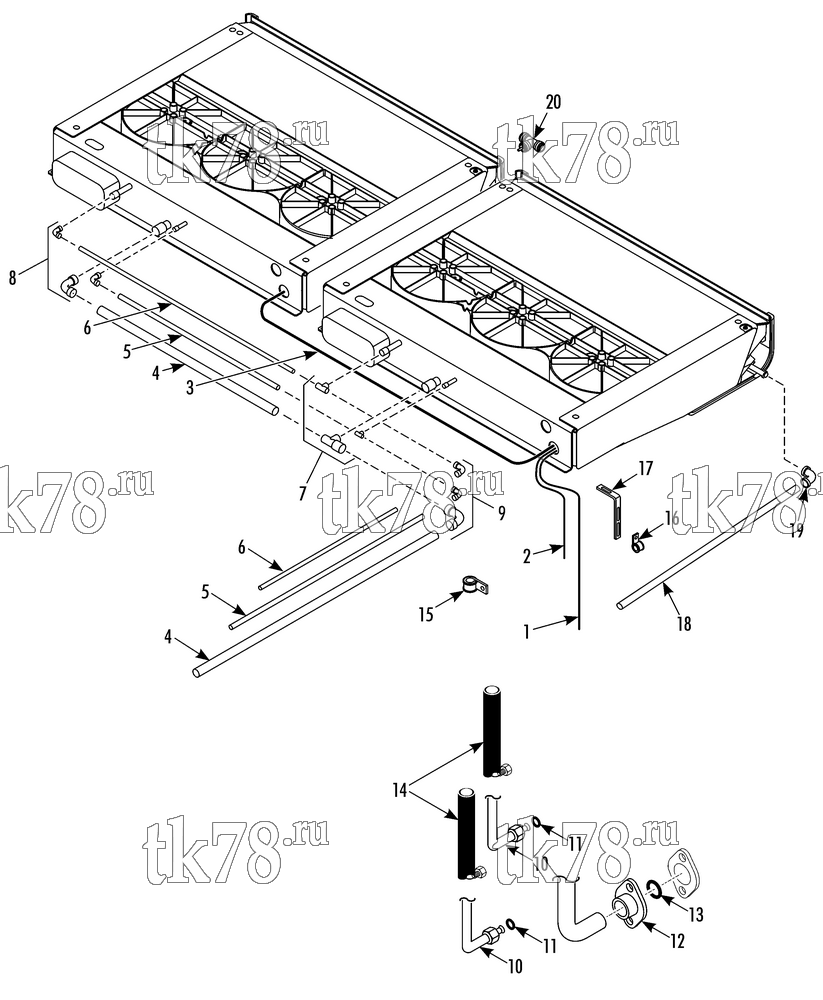

Установкa Thermo King схема S-3 INSTALLATION – 256H5
Обновление от: 6/5/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8860 | HARNESS - sensor | 1 | |
| 2 | 41-8053 | HARNESS - fan 1 | 1 | |
| 41-2617 | HARNESS - fan 2 | 1 | ||
| 41-2618 | HARNESS - fan 3 | 1 | ||
| 3 | N/A | HARNESS - interconnection (not supplied by TK) | 1 | |
| 4 | N/A | TUBE - suction (1-3/8, dealer supplied) | 1 | |
| 5 | N/A | TUBE - suction (7/8, dealer supplied) | 1 | |
| 6 | N/A | TUBE - liquid & hot gas (1/2, dealer supplied) | 1 | |
| 7 | 55-7211 | TEE - suction (1-3/8x7/8x7/8) | 1 | |
| 55-2296 | TEE - hot gas (1/2x1/2x1/2) | 1 | ||
| 55-6218 | TEE - liquid (1/2x3/8x3/8) | 1 | ||
| 8 | 55-3250 | ELBOW - liquid (street 3/8 ftg 3/8 sld) | 1 | |
| 55-1464 | ELBOW - hot gas (street 1/2 ftg 1/2 sld) | 1 | ||
| 55-3325 | ELBOW - suction (street 7/8 ftg 7/8 sld) | 1 | ||
| 9 | 55-8812 | ELBOW - hot gas (solder 1/2x1/2) | 5 | |
| 55-3326 | ELBOW - suction (solder 7/8x7/8) | 3 | ||
| 55-3094 | ELBOW - suction (solder 1-3/8x1-3/8) | 6 | ||
| 66-8365 | COUPLING - suction (1-3/8x7/8) | 1 | ||
| 10 | 61-5882 | TUBE - liquid & hot gas (ORS fitting) | 2 | |
| 11 | 33-566 | O-RING - liquid & hot gas (1/2, #6) | 2 | |
| 12 | 66-3687 | FLANGE - suction (1-3/8) | 1 | |
| 55-129 | SCREW - flange | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-289 | NUT | 2 | ||
| 13 | 33-728 | O-RING - suction (1-5/8) | 1 | |
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 14 | 92-4439 | TUBE - rubber (liquid & hot gas) | 6 | |
| 98-4836 | TUBE - rubber (suction, 1-3/8 id) | 3 | ||
| 15 | 55-546 | CLAMP (.25 dia) | A/R | |
| 55-2239 | CLAMP (.38 dia) | A/R | ||
| 55-548 | CLAMP (.43 dia) | A/R | ||
| 55-3065 | CLAMP (.5 dia) | A/R | ||
| 55-3598 | CLAMP (1.4 dia) | A/R | ||
| 55-2666 | CLAMP (1.44 dia) | A/R | ||
| 55-6531 | SCREW - clamp | A/R | ||
| 16 | 55-3741 | CLAMP - defrost tube | 2 | |
| 17 | 92-2238 | BRACKET - defrost tube | 2 | |
| 18 | 92-1442 | TUBE - defrost drain | 2 | |
| 19 | 55-9767 | ELBOW - defrost drain | 1 | |
| 20 | 51-249 | TEE - defrost drain | 2 |
