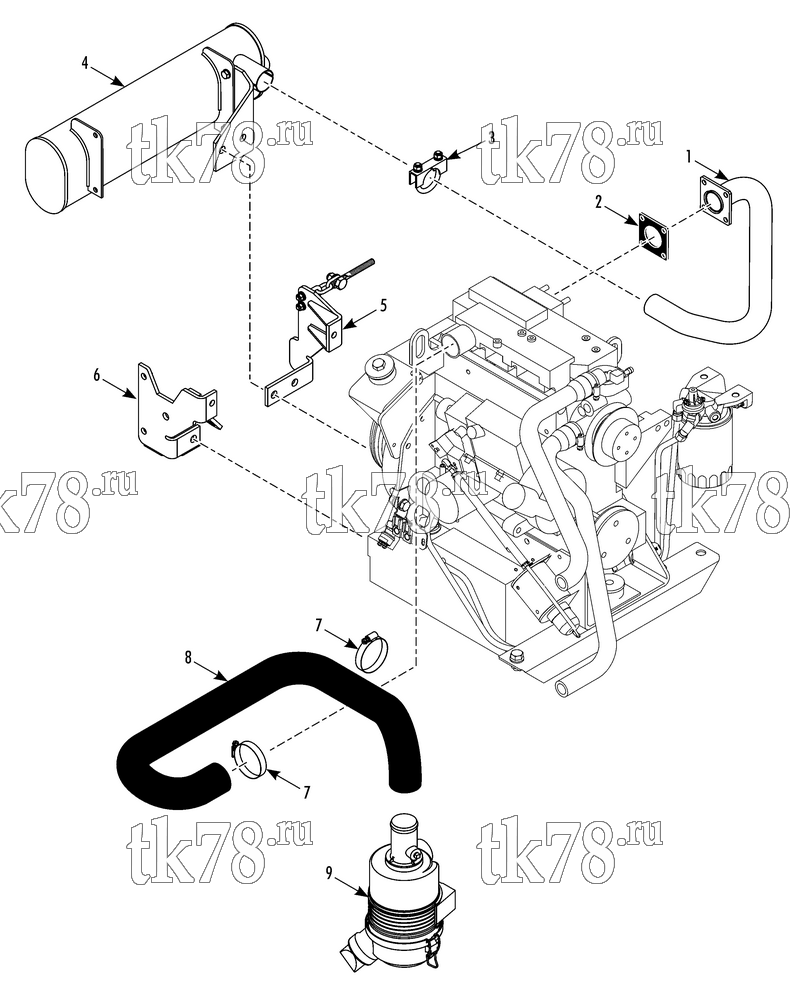

Установкa Thermo King схема AIR CLEANER AND MUFFLER GROUP – 256G2
Обновление от: 6/5/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1162 | TUBE - exhaust | 1 | |
| 2 | 33-1907 | GASKET | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 55-6186 | NUT - exhaust tube to engine | 4 | ||
| 3 | 99-496 | CLAMP - exhaust tube | 1 | |
| 4 | 12-970 | MUFFLER | 1 | |
| 55-8559 | SCREW - muffler | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 5 | 92-6147 | BRACKET - muffler (inner) | 1 | |
| 6 | 92-9390 | BRACKET - muffler (outer) | 1 | |
| 55-7004 | SCREW - bracket | 4 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 55-6573 | NUT | 4 | ||
| 7 | 55-4979 | CLAMP - hose | 2 | |
| 8 | 13-1171 | HOSE - air filter | 1 | |
| 9 | 13-1170 | FILTER - air cleaner | 1 | |
| 11-9059 | ELEMENT - air filter | 1 | ||
|
US-11-9059 | Фильтр воздушный, MD/T-Series | 2 410 ₽ |
|
|
10-11-9059 | Фильтр воздушный, MD/T-Series | 740 ₽ |
|
| 55-8559 | SCREW - mount | 2 | ||
| 55-7085 | FLATWASHER | 2 |
