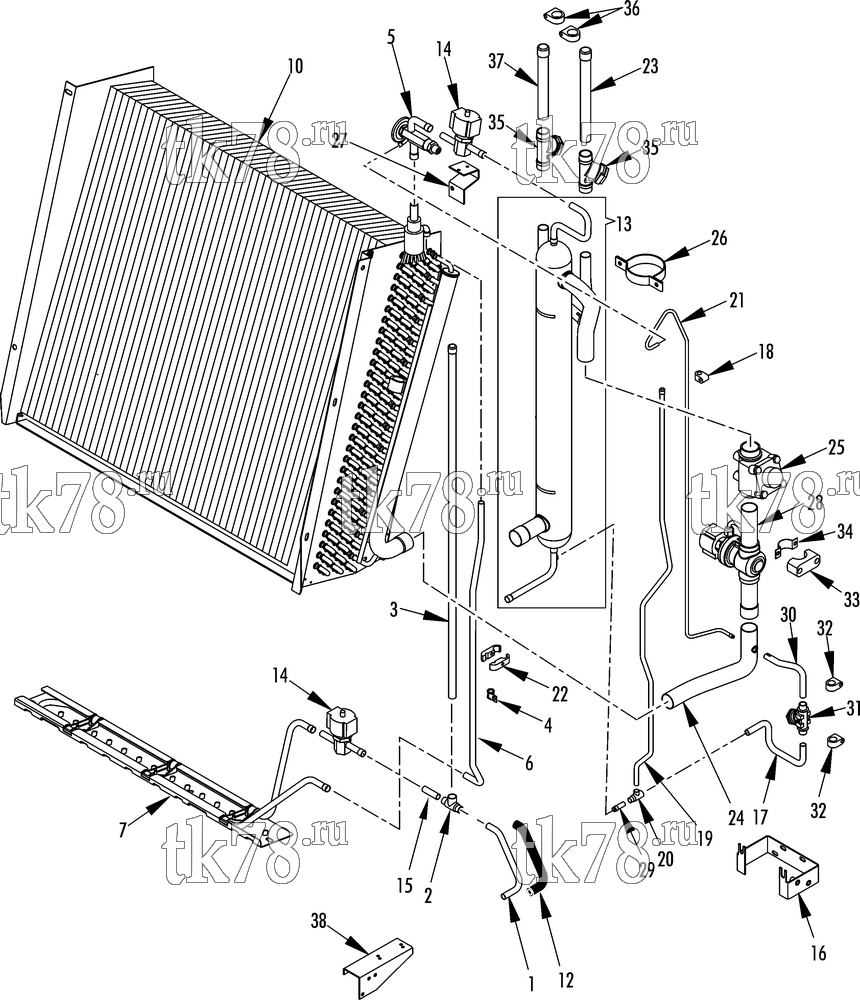

Установкa Thermo King схема REFRIGERATION - EVAPORATOR (w/ ETV) – 256E0
Обновление от: 12/2/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5789 | TUBE - defrost | 1 | |
| 2 | 66-5212 | TEE | 1 | |
| 3 | 61-3609 | TUBE - hot gas | 1 | |
| 4 | 55-2240 | CLAMP - tube | 1 | |
| 5 | 61-6283 | VALVE - expansion | 1 | |
| 66-3650 | ELEMENT - power | 1 | ||
| 203-428 | TAPE - cork | A/R | ||
| 66-4453 | SCREEN - filter (outlet) | 1 | ||
| 6 | 61-4305 | TUBE - defrost to distributor | 1 | |
| 7 | 61-5790 | TUBE - defrost heater | 1 | |
| 92-4707 | PLATE - defrost tube | 1 | ||
| 51-321 | RIVET - clamp | 6 | ||
| 8 | 67-1557 | COIL - evaporator (30s) | 1 | |
| 67-1630 | COIL - evaporator (50s) | 1 | ||
| 9 | 67-2683 | TUBE - outlet (hot gas bypass) | 1 | |
| 10 | 66-5374 | VALVE - solenoid (hot gas bypass, see 138A7) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 11 | 61-5791 | TUBE - inlet (hot gas bypass) | 1 | |
| 12 | 11-4748 | HOSE | 1 | |
| 13 | 67-2225 | HEAT EXCHANGER | 1 | |
| 14 | 61-3401 | VALVE - defrost & liquid | 2 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 44-3931 | COIL (12VDC) | 2 | ||
| 60-294 | KIT - repair | 2 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 15 | 66-8501 | TUBE - tee to solenoid | 1 | |
| 16 | 92-5761 | BRACKET - tube support | 1 | |
| 17 | 61-3605 | TUBE - check valve to exchanger | 1 | |
| 18 | 55-6388 | CLAMP - tube (3/8) | 1 | |
| 55-7013 | CLAMP - tube (7/8) | 1 | ||
| 55-3675 | SCREW - clamp (1/4-20 x 1.75) | 1 | ||
| 55-4811 | SCREW - clamp (1/4-20 x 2.50) | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 19 | 61-3629 | TUBE - liquid | 1 | |
| 20 | 55-6218 | TEE | 1 | |
| 21 | 61-3610 | TUBE - equalizer | 1 | |
| 22 | 55-9755 | CLAMP - tube | 4 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 23 | 66-6556 | TUBE - suction | 1 | |
| 24 | 61-3630 | TUBE - coil to exchanger | 1 | |
| 25 | 66-4594 | VALVE - check (see 106C14) | 1 | |
| 26 | 91-2689 | BRACKET - heat exchanger | 2 | |
| 55-1587 | SCREW - clamp | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 27 | 92-2941 | BRACKET - valve | 1 | |
| 28 | 61-3844 | VALVE - suction (see 138B13) | 1 | |
| 29 | 61-3604 | TUBE - fitting to tee | 1 | |
| 30 | 61-3606 | TUBE - exchanger to check valve | 1 | |
| 31 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 32 | 91-759 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 33 | 55-6020 | CLAMP - tube (plastic) | 1 | |
| 34 | 91-1779 | CLAMP - tube (stainless steel) | 1 | |
| 55-4811 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 35 | 66-6179 | VALVE - check (see 106C14) | 2 | |
| 36 | 55-7013 | CLAMP - tube | 2 | |
| 55-2977 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 37 | 66-6796 | TUBE - suction | 1 | |
| 38 | 92-9391 | BRACKET - solenoid | 1 |
