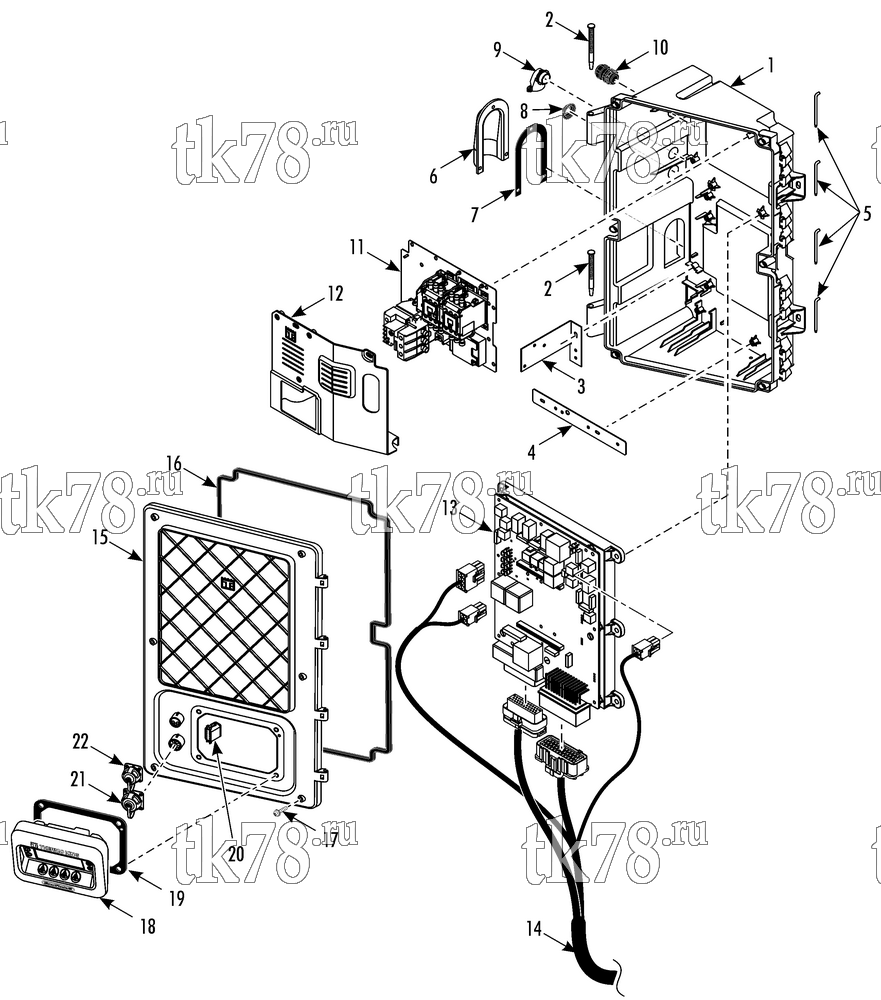

Установкa Thermo King схема CONTROL BOX (plastic box, SLX 300 Ferry) – 256D4
Обновление от: 1/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8373 | CONTROL BOX - plastic | 1 | |
| 51-2014 | INSERT - threaded (M4) | 26 | ||
| 51-2015 | INSERT - threaded (M6) | 9 | ||
| 2 | 92-8311 | PIN - hinge | 2 | |
| 51-2019 | SCREW - control box to frame | 5 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 3 | 51-2016 | BRACKET - cable tie | 1 | |
| 4 | 92-8314 | BRACKET - cable tie | 1 | |
| 55-9694 | SCREW - bracket | 3 | ||
| 5 | 92-8312 | PIN - door hinge | 4 | |
| 6 | 92-8365 | COVER - harness | 1 | |
| 55-9761 | SCREW - cover | 2 | ||
| 7 | 33-4630 | GASKET - cover | 1 | |
| 8 | 55-6010 | PLUG - button | 1 | |
| 9 | 55-6141 | CONNECTOR - harness grip (90 degrees) | 1 | |
| 10 | 55-9129 | CONNECTOR - harness grip (straight) | 1 | |
| 55-2635 | NUT - connector | 1 | ||
| 11 | NSS | TRAY - high voltage (see 256D0) | 1 | |
| 55-9694 | SCREW - tray | 4 | ||
| 12 | 92-7975 | COVER - high voltage tray | 1 | |
| 55-9694 | SCREW - cover | 4 | ||
| 13 | 45-2446 | BOARD - controller - SR-3 | 1 | |
| 14 | 41-7965 | HARNESS - main | 1 | |
| 15 | 98-8374 | DOOR - control box | 1 | |
| 16 | 33-4629 | GASKET - control box door | 1 | |
| 17 | 51-2019 | SCREW - door | 6 | |
| 18 | 45-2372 | CONTROLLER - HMI-3 (w/ gasket) | 1 | |
| 55-3018 | SCREW - controller | 4 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 19 | 33-3628 | GASKET - controller | 1 | |
| 20 | 92-6511 | HARNESS - communication | 1 | |
| 21 | 92-3283 | CAP - dust (6-pin) | 1 | |
| 22 | 92-3067 | CAP - dust (5-pin) | 1 |
