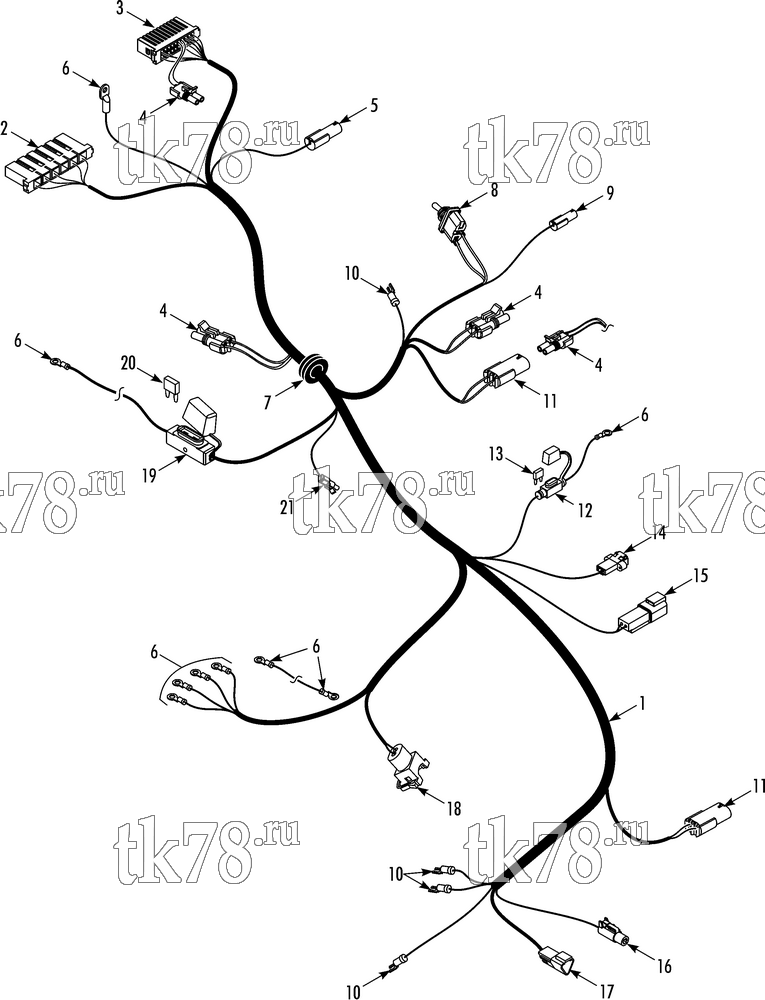

Установкa Thermo King схема MAIN HARNESS (2/12 & After) – 255H9
Обновление от: 12/2/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-323 | HARNESS - main | 1 | |
| 2 | 41-8383 | RECEPTACLE (main high power, 6-pin) | 1 | |
| 41-8370 | CONTACT (12-10 awg) | 3 | ||
| 41-8369 | CONTACT (16-14 awg) | 2 | ||
| 3 | 41-8385 | RECEPTACLE (main low power, 20-pin) | 1 | |
| 41-8266 | CONTACT (16-14 awg) | 12 | ||
| 4 | 44-5838 | CONNECTOR - tower (2-pin) | 4 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 6 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 44-7812 | PLUG - cavity (green) | 2 | ||
| 5 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 1 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 1 | ||
| 6 | 41-6710 | TERMINAL - ring ( #10, 8 awg) | 1 | |
| 44-2786 | TERMINAL - ring (blue 3/8, 16-14 ga) | 3 | ||
| 44-5089 | TERMINAL - ring (yellow 3/8, 10-12 ga) | 3 | ||
| 41-8853 | TERMINAL - ring (#10, 6 awg) | 1 | ||
| 41-8854 | TERMINAL - ring (1/4, 8 awg) | 1 | ||
| 41-8311 | TERMINAL - ring (3/8, 6 awg) | 1 | ||
| 7 | 33-4337 | GROMMET (1.5 id) | 1 | |
| 8 | 41-7419 | SWITCH - on/off | 1 | |
| 44-9591 | PIN (18 ga) | 2 | ||
| 9 | 42-335 | CONNECTOR (compressor clutch) | 1 | |
| 10 | 41-9022 | TERMINAL - fork (blue #8, 16-14 ga) | 3 | |
| 41-4407 | TERMINAL - fork (yellow #8, 12-10 ga) | 1 | ||
| 11 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 4 | ||
| 12 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 13 | 41-3077 | FUSE (3 amp) | 1 | |
| 30-41-3077 | Предохранитель 32V 3А | 520 ₽ |
|
|
| 14 | 41-7619 | CONNECTOR (starter) | 1 | |
| 41-7620 | TERMINAL | 1 | ||
| 41-8822 | SEAL - connector | 1 | ||
| 15 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 44-9590 | WEDGE (2-pin) | 1 | ||
| 44-9591 | PIN (18 ga) | 2 | ||
| 16 | 41-4857 | PLUG (glow plug, 1pin) | 1 | |
| 42-336 | PIN | 1 | ||
| 17 | 44-9631 | PLUG (3-pin) | 1 | |
| 44-9536 | WEDGE (3-pin) | 1 | ||
| 44-9593 | SOCKET (14-16 ga) | 3 | ||
| 18 | 44-9607 | CONNECTOR - female (alternator) | 1 | |
| 41-277 | TERMINAL - female | 2 | ||
| 19 | 41-3665 | HOLDER - fuse | 1 | |
| 20 | 41-7420 | FUSE (50 amp) | 1 | |
|
30-41-7420 | Предохранитель 50А | 840 ₽ |
|
| 21 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 203-524 | GREASE - anti corrosion | A/R | ||
| 55-2332 | BANDWRAP (.75 dia) | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia) | A/R | ||
| 55-2331 | BANDWRAP (4.0 dia) | A/R | ||
| 41-7681 | HEATSHRINK (1.5 inch) | A/R | ||
| 41-9445 | HEATSHRINK (2.25 inch) | A/R |
