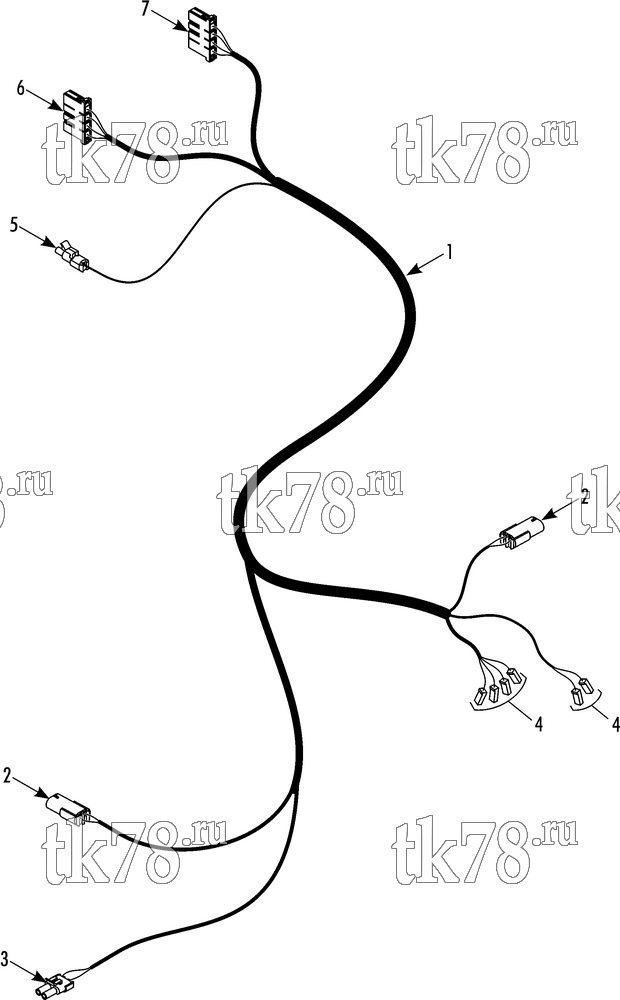

Установкa Thermo King схема AC HARNESS (2/12 & After) – 255H0
Обновление от: 12/2/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-324 | HARNESS - A/C | 1 | |
| 2 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 44-5836 | TERMINAL - male (16-14 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 4 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 3 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 7 | ||
| 4 | 44-6381 | CONNECTOR - female (1-pin) | 6 | |
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 5 | ||
| 55-7702 | TERMINAL - fingrip (16-18 ga) | 1 | ||
| 5 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 1 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 1 | ||
| 6 | 42-331 | RECEPTACLE - evaporator fan (4-pin) | 1 | |
| 41-8369 | CONTACT (16-14 awg) | 4 | ||
| 7 | 42-332 | RECEPTACLE - condenser (4-pin) | 1 | |
| 41-8369 | CONTACT (16-14 awg) | 4 | ||
| 55-2332 | BANDWRAP (.75 dia) | A/R |
