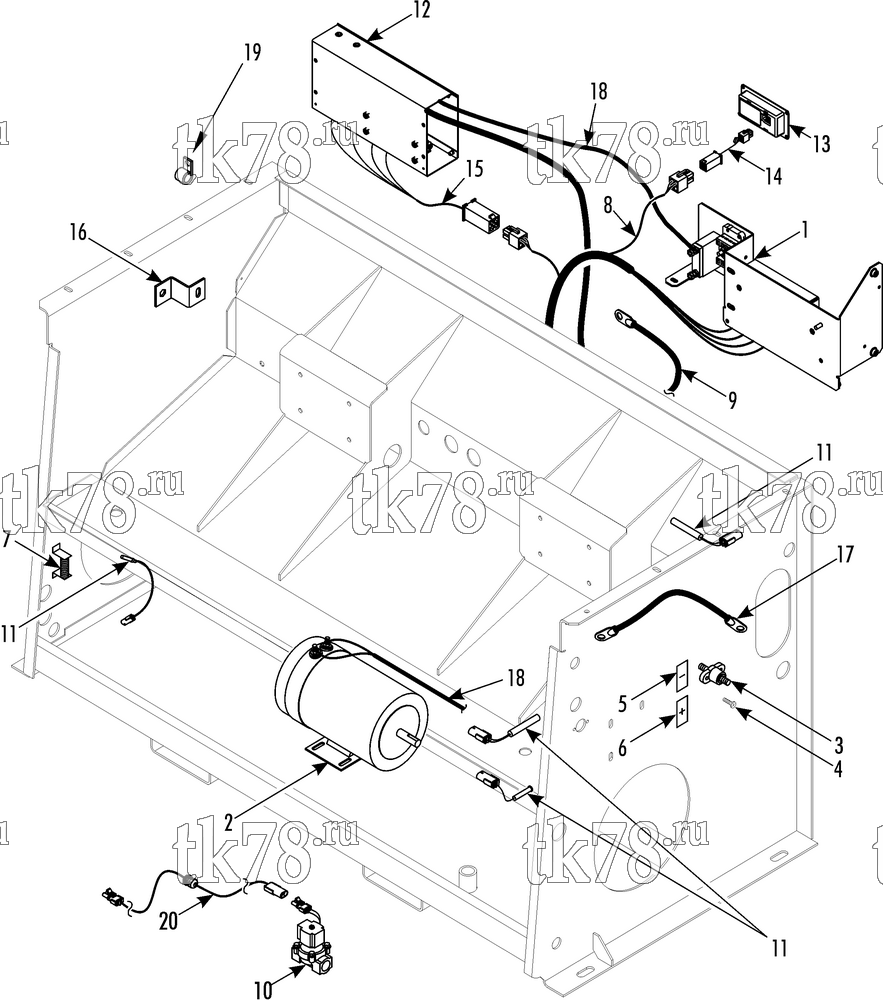

Установкa Thermo King схема ELECTRICAL COMPONENTS – 255F2
Обновление от: 10/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE III (see 247G0) | 1 | |
| 2 | 104-323 | MOTOR - evaporator blower (see 76C1) | 1 | |
| 3 | 55-9551 | STUD - terminal (black) | 1 | |
| 4 | 55-2269 | SCREW - junction block | 2 | |
| 55-671 | NUT - junction block | 2 | ||
| 55-3066 | LOCKWASHER | 1 | ||
| 55-448 | FLATWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6348 | RESISTOR (.9 ohm, evap blower) | 2 | |
| 8 | 41-9846 | HARNESS - main, IntelligAIRE III (see 247H2) | 1 | |
| 9 | 41-4913 | CABLE - battery power | 1 | |
| 41-8267 | TERMINAL - lug (5/16, 1 awg) | 1 | ||
| 41-9479 | TERMINAL - lug (1/4, 1 awg) | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 10 | 41-5610 | VALVE - solenoid (see 173F5) | 1 | |
| 11 | 41-4157 | SENSOR - temperature | 4 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 4 | ||
| 12 | NSS | PANEL - solenoid (see 247H4) | 1 | |
| 13 | 45-2339 | CONTROLLER - IntelligAIRE III (see 246A8) | 1 | |
| 14 | 41-9432 | HARNESS - controller (IntelligAIRE III, see 246A8) | 1 | |
| 15 | 41-9847 | HARNESS - contactor | 1 | |
| 16 | 92-5407 | BRACKET - support | 1 | |
| 17 | 41-9476 | CABLE - chassis ground strap | 1 | |
| 41-8311 | TERMINAL - lug (3/8, 6 awg) | 1 | ||
| 41-9480 | TERMINAL - lug (1/4, 6 awg) | 1 | ||
| 41-9475 | CABLE - chassis ground (ch) | 1 | ||
| 41-9477 | TERMINAL - lug (3/8, 1 awg) | 1 | ||
| 41-9478 | TERMINAL - lug (1/2, 1 awg) | 1 | ||
| 18 | 41-9848 | CABLE - single wire (CH, 12.5 feet) | 1 | |
| 41-8255 | CONNECTOR - harness grip | 1 | ||
| 33-4410 | WASHER - sealing | 1 | ||
| 55-2836 | NUT - lock | 1 | ||
| 41-6731 | CABLE - single wire(34A, 90 inches | 1 | ||
| 41-6736 | CABLE - single wire (35A, 26 inches) | 1 | ||
| 41-6733 | CABLE - single wire (32B, 5 inches) | 1 | ||
| 41-6734 | CABLE - single wire (32B, 82 inches) | 1 | ||
| 19 | 51-2109 | CLAMP (.125 dia) | 1 | |
| 51-2110 | CLAMP (.437 dia) | 1 | ||
| 51-147 | CLAMP (.437 dia) | 1 | ||
| 55-9423 | CLAMP (.5 dia) | 1 | ||
| 55-9703 | CLAMP (.75 dia) | 1 | ||
| 55-9311 | CLAMP (1.0 dia) | 1 | ||
| 20 | 41-9947 | HARNESS - coolant valve extension (see 115D14 for connectors) | 1 | |
| 51-2054 | CONNECTOR - harness grip | 1 |
