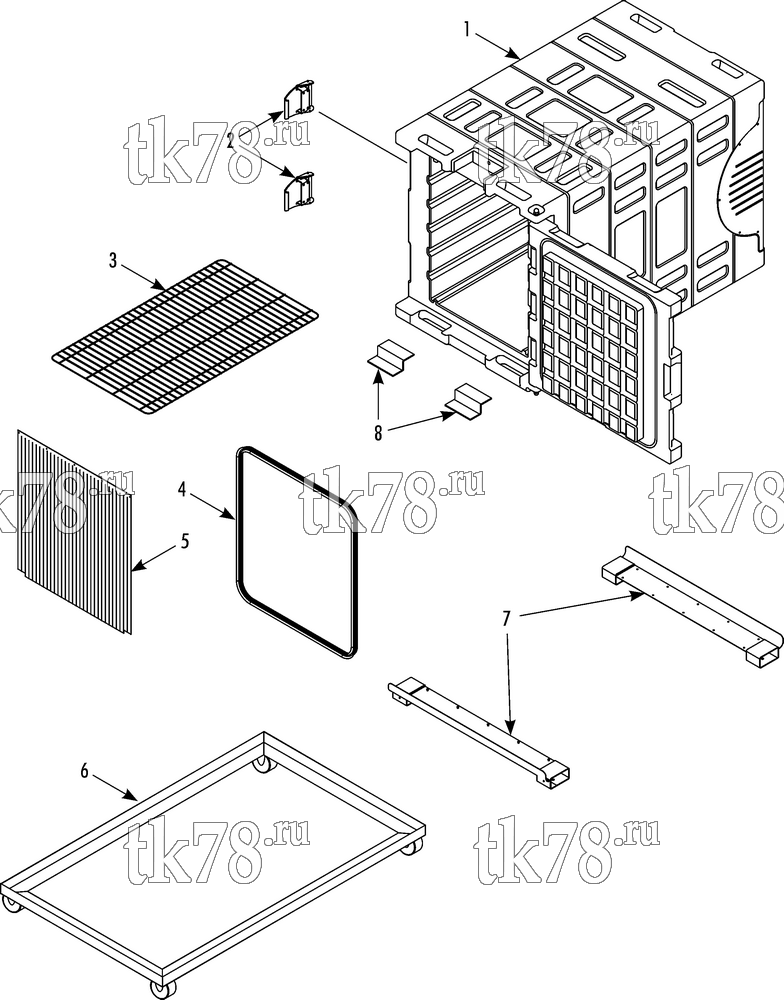

Установкa Thermo King схема 37 & 87 GALLON COMPONENTS – 255E4
Обновление от: 1/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 610-208 | COLDCUBE - 37 gallon, cooling | 1 | |
| 610-209 | COLDCUBE - 37 gallon, freezing | 1 | ||
| 610-210 | COLDCUBE - 87 gallon, cooling | 1 | ||
| 610-211 | COLDCUBE - 87 gallon, freezing | 1 | ||
| 2 | 92-9344 | LATCH - kit | 2 | |
| 3 | 610-201 | SHELF (37 gallon) | A/R | |
| 610-214 | SHELF (87 gallon) | A/R | ||
| 4 | 33-4830 | GASKET - door (37 gallon) | 1 | |
| 33-4831 | GASKET - door (87 gallon) | 1 | ||
| 5 | 610-219 | CURTAIN (37 gallon) | 1 | |
| 610-220 | CURTAIN (87 gallon) | 1 | ||
| 6 | 610-202 | BASE - w/wheels (37 gallon) | 1 | |
| 610-203 | BASE - w/wheels (87 gallon) | 1 | ||
| 7 | 610-204 | PALLET - base (87 gallon) | 1 | |
| 8 | 610-206 | BRACKET - hold down | 4 |
