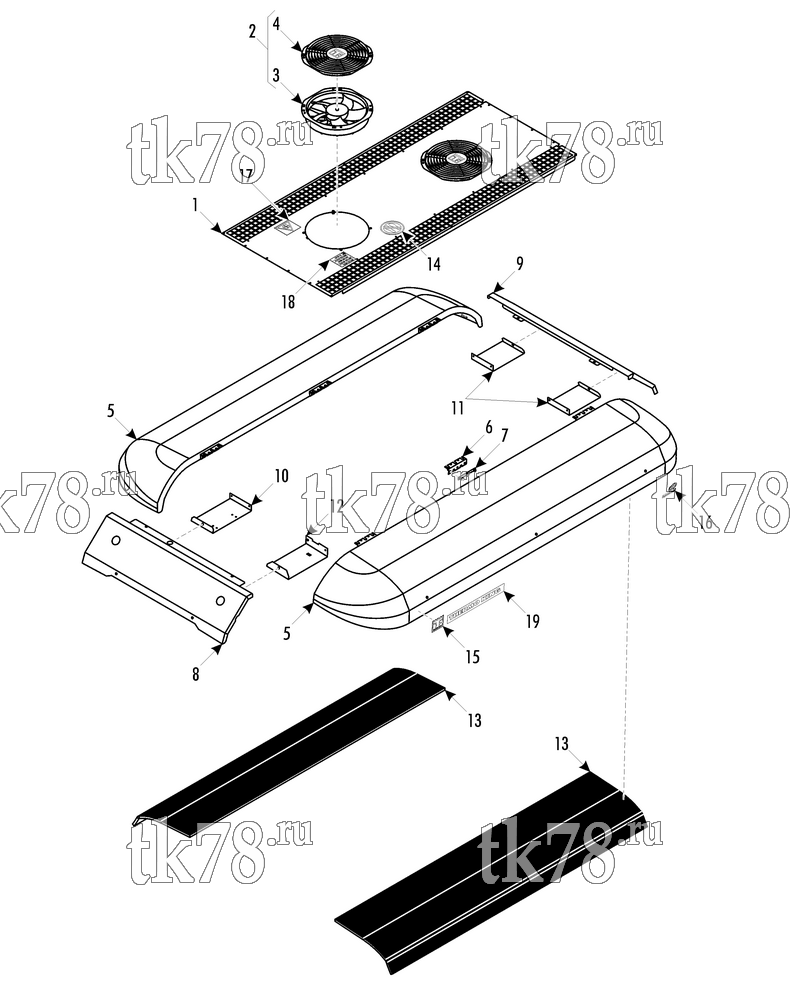

Установкa Thermo King схема COVER – 253G8
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8831 | COVER - condenser (narrow unit) | 1 | |
| 98-8835 | COVER - condenser (wide unit) | 1 | ||
| 55-7373 | NUT - captive | 12 | ||
| 2 | 78-1414 | FAN - assembly | 2 | |
| 3 | 78-1414 | FAN | 1 | |
| 4 | 78-1416 | GUARD - fan | 1 | |
| 51-1243 | SCREW - fan | 1 | ||
| 55-7372 | SCREW - fan | 8 | ||
| 55-9190 | WASHER - spring | 8 | ||
| 5 | 98-8694 | COVER - side | 2 | |
| 51-1930 | SCREW - cover | 6 | ||
| 6 | 91-7098 | HINGE - cover | 6 | |
| 55-7340 | SCREW - hinge to frame | 12 | ||
| 55-7404 | LOCKWASHER | 12 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 55-7036 | SCREW - hinge to cover | 18 | ||
| 55-7171 | LOCKWASHER | 18 | ||
| 55-7089 | FLATWASHER | 18 | ||
| 7 | 92-4019 | PLATE - nut | 6 | |
| 8 | 98-8695 | SPOILER (narrow unit) | 1 | |
| 98-8720 | SPOILER (wide unit) | 1 | ||
| 9 | 98-8696 | SPOILER (narrow unit) | 1 | |
| 98-8704 | SPOILER (wide unit) | 1 | ||
| 55-7172 | SCREW - spoiler (16 mm Length) | 6 | ||
| 55-6994 | SCREW - spoiler (20 mm Length) | 2 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 10 | 92-9053 | BRACKET | 1 | |
| 11 | 92-9054 | BRACKET | 2 | |
| 12 | 92-9055 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 13 | 92-9052 | INSULATION | 2 | |
| 14 | 92-3767 | NAMEPLATE - No Step | 1 | |
| 15 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 16 | 92-1307 | NAMEPLATE - IR (black letters) | 2 | |
| 17 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 18 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 19 | 91-1154 | NAMEPLATE - Thermo King | 2 |
