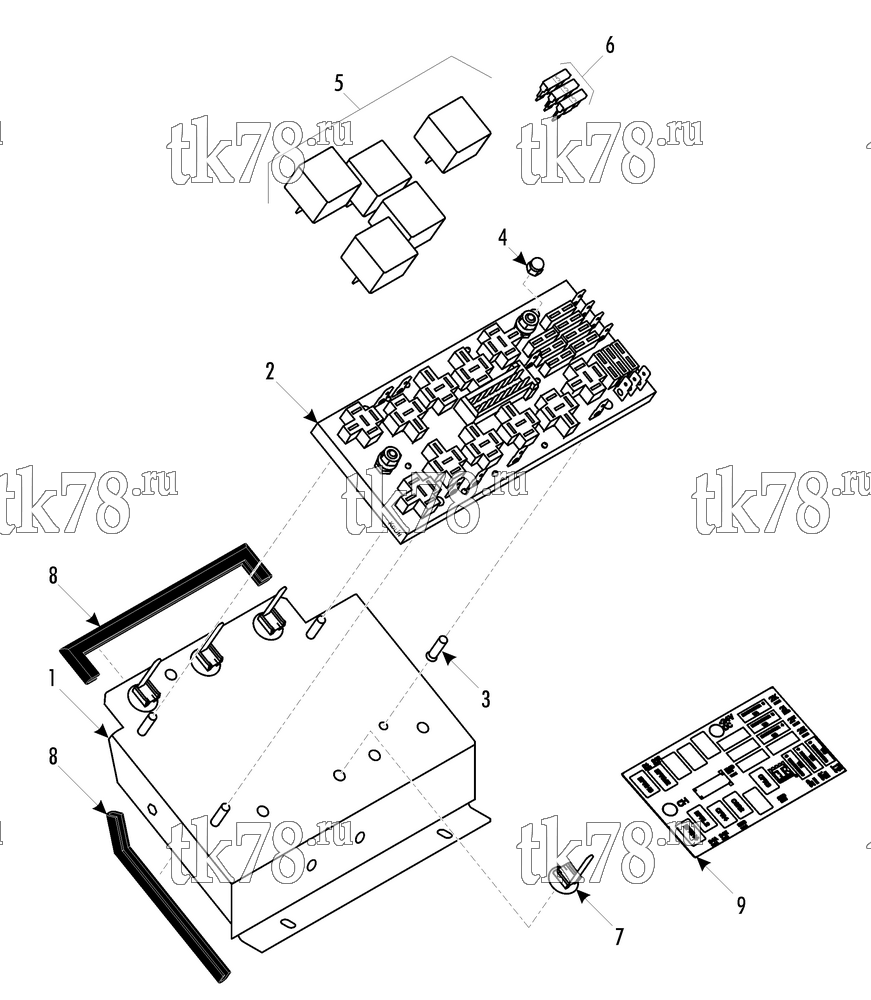

Установкa Thermo King схема CONTROLLER RIGHT – 253F9
Обновление от: 10/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-4028 | BRACKET | 1 | |
| 55-7664 | SCREW - bracket | 3 | ||
| 55-7369 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 55-7866 | NUT - captive | 3 | ||
| 2 | 41-6097 | PANEL - control | 1 | |
| 3 | 55-9623 | STUD - self clinching | 4 | |
| 55-7034 | NUT - hexstop | 3 | ||
| 4 | 51-310 | NUT - acorn (plastic) | 1 | |
| 5 | 41-896 | RELAY | 5 | |
| 6 | 44-9344 | FUSE (15 amp) | 3 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 7 | 51-1631 | STRAP - cable | 4 | |
| 8 | 92-3279 | RUBBER - profile | A/R | |
| 9 | 92-4029 | NAMEPLATE - fuse | 1 |
