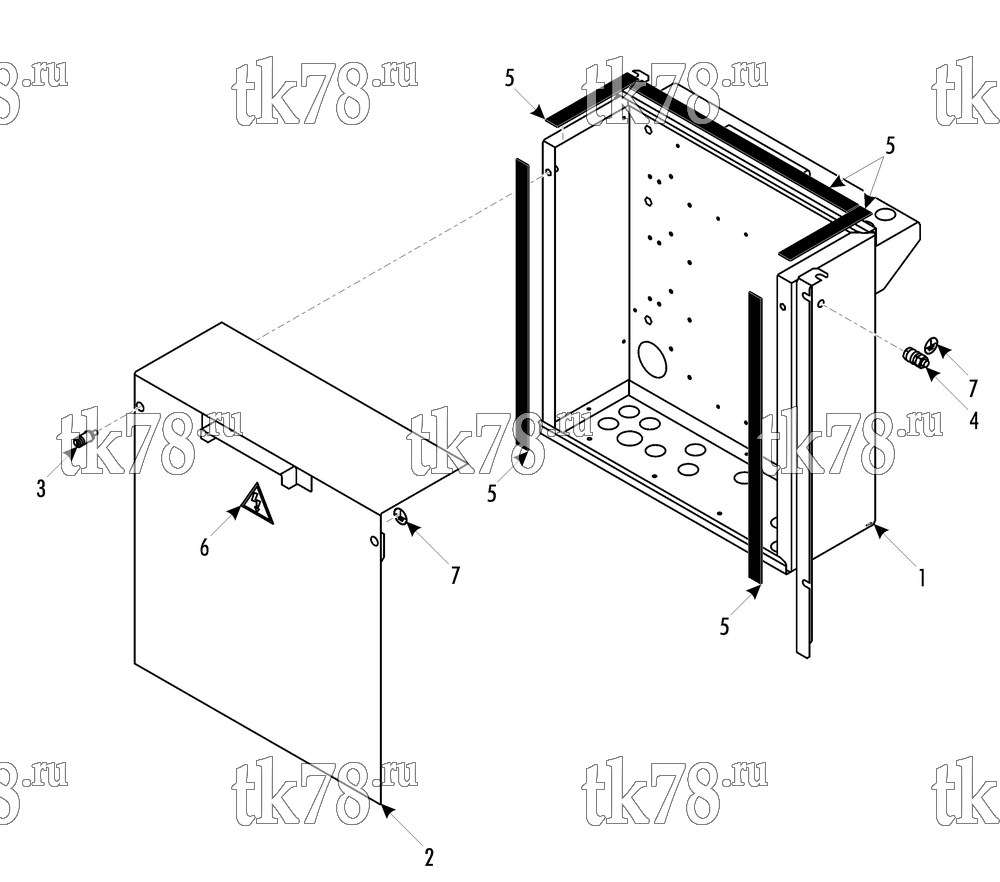

Установкa Thermo King схема ELECTRO BOX PANELS – 253E4
Обновление от: 9/20/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9329 | BOX - weld | 1 | |
| 55-6994 | SCREW - box | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 2 | 92-9330 | COVER - weld | 1 | |
| 3 | 55-9758 | SCREW - captive | 2 | |
| 55-8375 | NUT - captive | 2 | ||
| 4 | 55-6993 | SCREW - ground | 1 | |
| 55-6988 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 51-1211 | NUT (jam) | 1 | ||
| 55-7825 | NUT | 1 | ||
| 5 | 99-7336 | STRIP - neoprene | 2 | |
| 6 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 7 | 92-783 | LABEL - ground | 2 |
