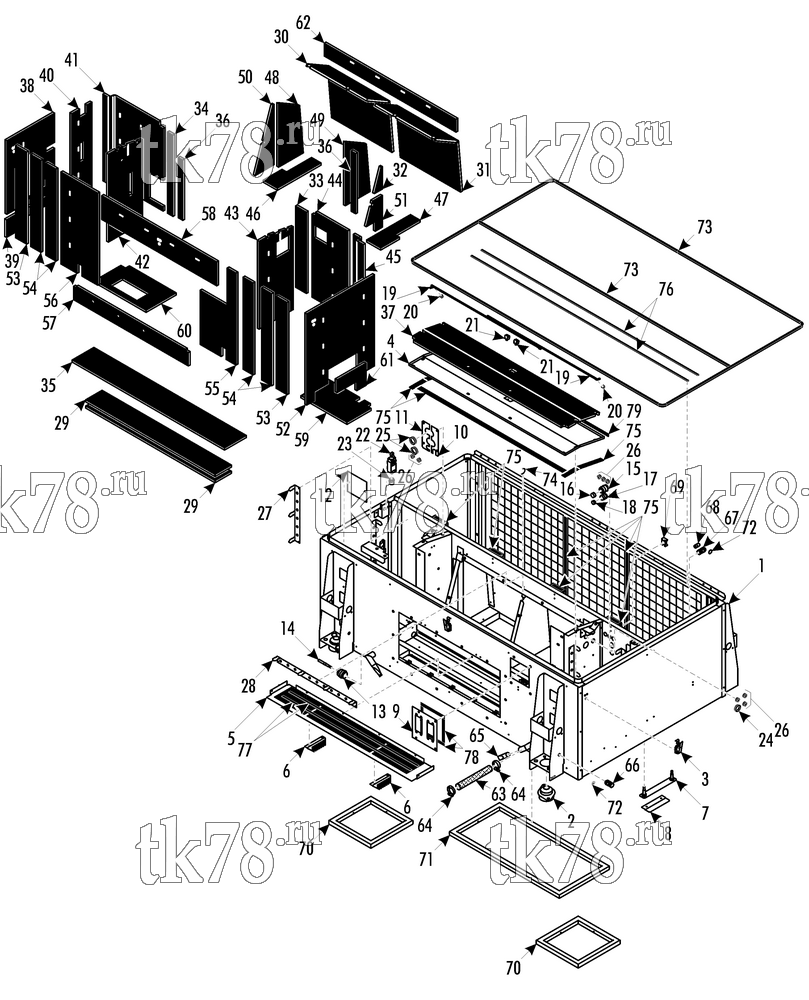

Установкa Thermo King схема FRAME – 253D3
Обновление от: 9/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8817 | FRAME - assy, sealing | 1 | |
| 2 | 92-6832 | ISOLATOR - frame | 4 | |
| 55-6987 | SCREW - isolator | 8 | ||
| 51-953 | FLATWASHER | 16 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 3 | 92-555 | LATCH | 3 | |
| 55-7663 | SCREW - latch | 9 | ||
| 51-1451 | WASHER - spring | 9 | ||
| 4 | 98-8813 | COVER | 1 | |
| 55-6994 | SCREW - cover | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 5 | 98-8818 | GRILLE | 1 | |
| 6 | 92-9300 | RIB | 2 | |
| 51-2030 | RIVET - grille & rib | A/R | ||
| 7 | 92-9301 | HOLDER - compressor | 4 | |
| 8 | 92-9302 | HOLDER | 4 | |
| 51-2030 | RIVET - holder | A/R | ||
| 9 | 92-9303 | COVER | 1 | |
| 55-6994 | SCREW - cover | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 10 | 92-9304 | COVER | 1 | |
| 11 | 92-9305 | COVER | 1 | |
| 55-6994 | SCREW - cover | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 12 | 92-9306 | PLATE | 1 | |
| 51-2030 | RIVET - plate | 2 | ||
| 13 | 55-9992 | BUSHING - temperature sensor | 2 | |
| 55-9998 | LOCKNUT | 2 | ||
| 14 | 40-974 | SENSOR - temperature (service set - connector incl.) (see 253D8) | 2 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 15 | 51-1372 | BUSHING - cable | 1 | |
| 55-9560 | LOCKNUT | 1 | ||
| 16 | 51-1486 | SEALING - bushing | 1 | |
| 17 | 51-1400 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT | 1 | ||
| 18 | 41-6682 | SEALING - bushing | 1 | |
| 19 | 92-9307 | SUPPORT - cover | 2 | |
| 20 | 83-258 | GROMMET (0.250 id) | 2 | |
| 21 | 51-1669 | CLIP - plastic | 2 | |
| 22 | 41-3917 | SWITCH - limit | 1 | |
| 55-9566 | SCREW - switch | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 23 | 55-9555 | BUSHING - cable | 1 | |
| 24 | 33-612 | GROMMET (0.875 id) | 1 | |
| 25 | 33-2023 | GROMMET (1.125 id) | 2 | |
| 26 | 33-1213 | GROMMET (0.500 id) | 9 | |
| 27 | 33-3576 | BRACKET - insulation | 9 | |
| 28 | 33-3290 | BRACKET - insulation | 2 | |
| 29 | 92-9255 | INSULATION | 2 | |
| 30 | 92-9257 | INSULATION | 1 | |
| 31 | 92-9258 | INSULATION | 1 | |
| 32 | 92-9259 | INSULATION | 1 | |
| 33 | 92-9260 | INSULATION | 1 | |
| 34 | 92-9261 | INSULATION | 1 | |
| 35 | 92-9262 | INSULATION | 1 | |
| 36 | 92-9263 | INSULATION | 2 | |
| 37 | 92-9264 | INSULATION | 1 | |
| 38 | 92-9265 | INSULATION | 1 | |
| 39 | 92-9266 | INSULATION | 1 | |
| 40 | 92-9267 | INSULATION | 1 | |
| 41 | 92-9268 | INSULATION | 1 | |
| 42 | 92-9269 | INSULATION | 1 | |
| 43 | 92-9270 | INSULATION | 1 | |
| 44 | 92-9271 | INSULATION | 1 | |
| 45 | 92-9272 | INSULATION | 1 | |
| 46 | 92-9273 | INSULATION | 1 | |
| 47 | 92-9274 | INSULATION | 1 | |
| 48 | 92-9275 | INSULATION | 1 | |
| 49 | 92-9276 | INSULATION | 1 | |
| 50 | 92-9277 | INSULATION | 1 | |
| 51 | 92-9278 | INSULATION | 1 | |
| 52 | 92-9279 | INSULATION | 1 | |
| 53 | 92-9280 | INSULATION | 2 | |
| 54 | 92-9281 | INSULATION | 4 | |
| 55 | 92-9282 | INSULATION | 1 | |
| 56 | 92-9283 | INSULATION | 1 | |
| 57 | 92-9284 | INSULATION | 1 | |
| 58 | 92-9285 | INSULATION | 1 | |
| 59 | 92-9286 | INSULATION | 1 | |
| 60 | 92-9287 | INSULATION | 1 | |
| 61 | 92-9288 | INSULATION | 1 | |
| 62 | 92-9289 | INSULATION | 1 | |
| 63 | 61-5741 | HOSE | 2 | |
| 64 | 51-840 | CLAMP - hose | 4 | |
| 65 | 66-1273 | VALVE - hose check | 2 | |
| 66 | 55-7355 | SCREW - ground | 2 | |
| 55-6999 | FLATWASHER | 4 | ||
| 55-7000 | LOCKWASHER | 2 | ||
| 55-7348 | NUT | 4 | ||
| 67 | 55-6993 | SCREW - ground | 3 | |
| 55-6988 | FLATWASHER | 6 | ||
| 55-7066 | LOCKWASHER | 3 | ||
| 51-1211 | NUT (jam) | 3 | ||
| 55-7825 | NUT | 3 | ||
| 68 | 55-6994 | SCREW - cover cord | 1 | |
| 55-6995 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 51-1820 | NUT (jam) | 1 | ||
| 55-7354 | NUT | 1 | ||
| 69 | 99-3281 | MOUNT - bandwrap | 25 | |
| 51-2030 | RIVET - mount | 25 | ||
| 56-2330 | BANDWRAP | 25 | ||
| 70 | 33-4826 | PAD - unit | 2 | |
| 71 | 33-4827 | PAD - unit | 1 | |
| 72 | 92-783 | LABEL - ground | 5 | |
| 73 | 33-4740 | RUBBER - profile | A/R | |
| 74 | 92-3279 | RUBBER - profile | A/R | |
| 75 | 92-2302 | STRIP - neoprene | A/R | |
| 76 | 99-7246 | STRIP - neoprene | A/R | |
| 77 | 99-4976 | STRIP - neoprene | A/R | |
| 78 | 99-7336 | STRIP - neoprene | A/R | |
| 79 | 99-8429 | STRIP - neoprene | A/R |
