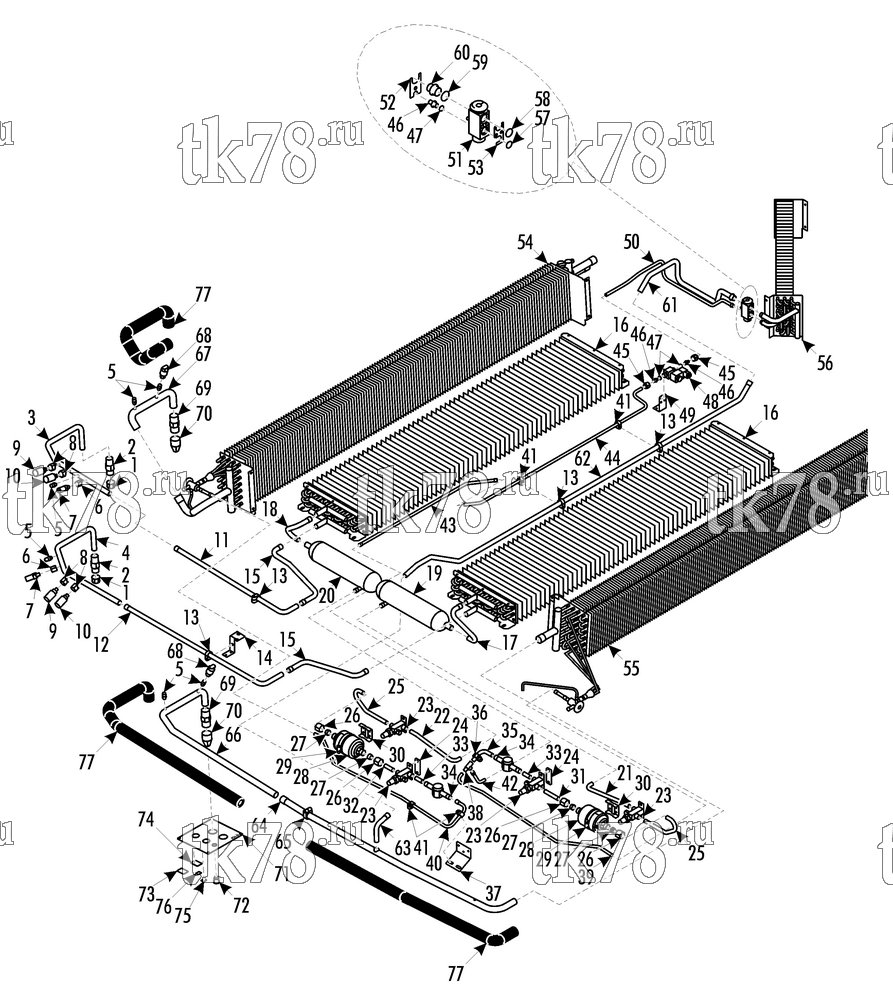

Установкa Thermo King схема TUBE COOLING – 252H3
Обновление от: 7/6/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-2552 | CAP - adapter | 2 | |
| 2 | 61-3473 | ADAPTER | 2 | |
| 3 | 61-5229 | TUBE | 1 | |
| 4 | 61-5230 | TUBE | 1 | |
| 5 | 61-2059 | VALVE | 6 | |
| 6 | 99-3060 | FITTING - saddle | 2 | |
| 7 | 66-7392 | VALVE - relief | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 8 | 66-4139 | FITTING - saddle | 4 | |
| 9 | 41-4146 | SWITCH - hpco | 2 | |
| 10 | 41-5220 | SWITCH - cps | 2 | |
| 11 | 61-5659 | TUBE | 1 | |
| 12 | 61-5660 | TUBE | 1 | |
| 13 | 91-758 | CLAMP - tube | 4 | |
| 55-9321 | SCREW - clamp (70mm length) | 1 | ||
| 55-8464 | SCREW - clamp (35mm length) | 1 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 14 | 92-9105 | BRACKET | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 15 | 61-5661 | TUBE | 2 | |
| 16 | NSS | CONDENSER (see 252H2) | 1 | |
| 17 | 61-3040 | TUBE | 1 | |
| 18 | 61-3041 | TUBE | 1 | |
| 19 | 67-2181 | TANK - receiver | 1 | |
| 20 | 67-2182 | TANK - receiver | 1 | |
| 21 | 61-5662 | TUBE | 1 | |
| 22 | 61-5663 | TUBE | 1 | |
| 23 | 66-4694 | VALVE - shut-off | 4 | |
| 55-6994 | SCREW - valve | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 24 | 51-2128 | WASHER | 2 | |
| 25 | 61-5664 | TUBE | 2 | |
| 26 | 55-6838 | NUT - shoulder | 4 | |
| 27 | 55-6837 | SHOULDER | 4 | |
| 28 | 66-8344 | FILTER - drier | 2 | |
| 29 | 55-2688 | CLAMP - filter | 2 | |
| 30 | 92-2499 | BRACKET - filter | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 31 | 61-5665 | TUBE | 1 | |
| 32 | 61-5666 | TUBE | 1 | |
| 33 | 61-3868 | TUBE | 2 | |
| 34 | 66-1188 | INDICATOR - liquid | 2 | |
| 35 | 61-5667 | TUBE | 1 | |
| 36 | 91-759 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp (35mm length) | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 37 | 92-9106 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 3 | ||
| 38 | 66-622 | TEE (1/2C x 3/8C x 1/2) | 1 | |
| 39 | 61-5668 | TUBE | 1 | |
| 40 | 61-5669 | TUBE | 1 | |
| 41 | 55-6388 | CLAMP - tube | 4 | |
| 55-8464 | SCREW - clamp (35mm length) | 2 | ||
| 55-7739 | SCREW - clamp (60mm length) | 2 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-7354 | NUT | 1 | ||
| 42 | 61-5670 | TUBE | 1 | |
| 43 | 61-5671 | TUBE | 1 | |
| 44 | 61-4695 | TUBE | 1 | |
| 45 | 92-121 | NUT | 2 | |
| 46 | 55-9544 | ADAPTER | 3 | |
| 47 | 33-3717 | O-RING | 3 | |
| 48 | 41-6348 | VALVE - solenoid | 1 | |
| 55-7843 | SCREW - valve | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 49 | 92-7346 | BRACKET - valve | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 50 | 61-4696 | TUBE | 1 | |
| 51 | 61-2546 | VALVE - thermostatic expansion | 1 | |
| 52 | 61-4697 | FLANGE - valve | 1 | |
| 55-7367 | NUT | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 53 | 92-5860 | FLANGE - valve | 1 | |
| 51-1343 | SCREW - flange | 2 | ||
| 54 | 67-2207 | COIL - evaporator/heater (see 252H4) | 1 | |
| 55 | 67-2512 | COIL - evaporator/heater (see 252H4) | 1 | |
| 56 | 67-2415 | COIL - evaporator, driver section (see 234F5) | 1 | |
| 57 | 33-2846 | O-RING | 1 | |
| 58 | 33-2848 | O-RING (9/16 id) | 1 | |
| 59 | 33-2847 | O-RING | 1 | |
| 60 | 51-1862 | ADAPTER | 1 | |
| 61 | 61-4698 | TUBE | 1 | |
| 62 | 61-5672 | TUBE | 1 | |
| 63 | 61-5673 | TUBE | 1 | |
| 64 | 61-5239 | TUBE | 1 | |
| 65 | 55-7013 | CLAMP - tube | 1 | |
| 66 | 61-5237 | TUBE | 1 | |
| 67 | 61-5238 | TUBE | 1 | |
| 68 | 41-4209 | SWITCH - lpco | 2 | |
| 69 | 61-3108 | ADAPTER | 2 | |
| 70 | 92-3542 | CAP - plastic | 2 | |
| 71 | 92-5379 | PLATE - tubes | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 72 | 33-4681 | PLUG - rubber | 1 | |
| 73 | 91-7510 | NAMEPLATE - gas in | 2 | |
| 74 | 91-8536 | NAMEPLATE - vapour out | 2 | |
| 75 | 92-1488 | NAMEPLATE | 4 | |
| 76 | 92-1489 | NAMEPLATE | 4 | |
| 77 | 91-3542 | TUBE - rubber | A/R |
