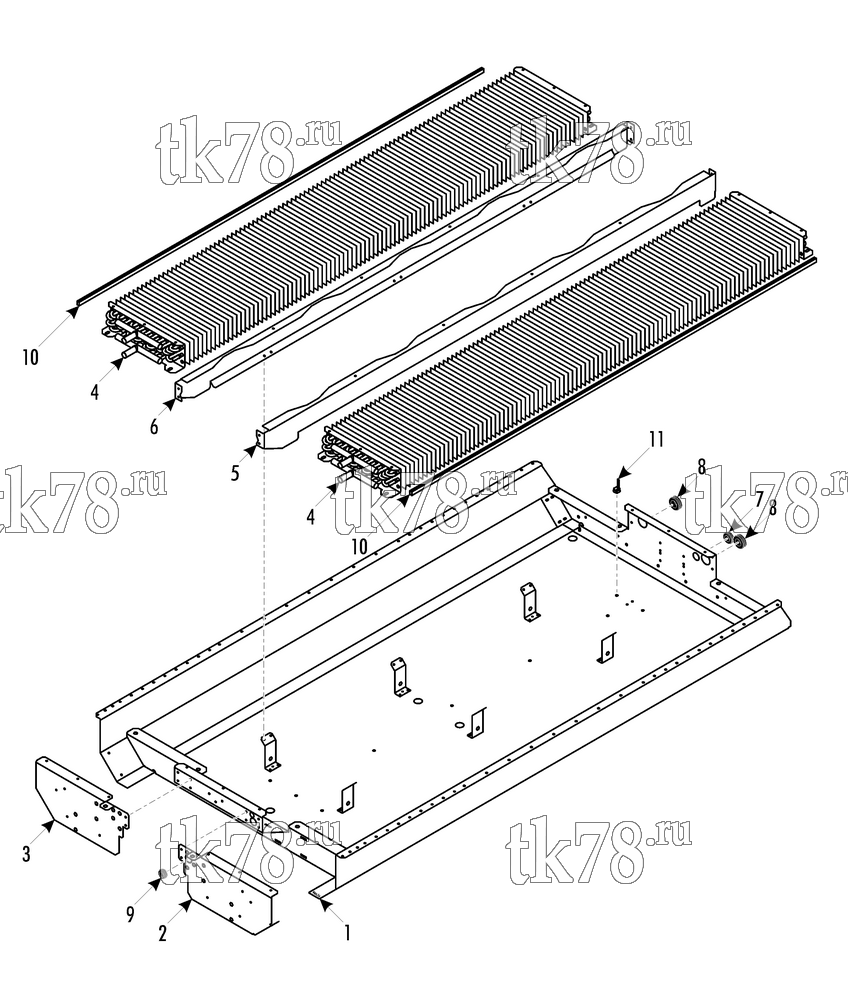

Установкa Thermo King схема CONDENSER STANDARD – 252H2
Обновление от: 6/30/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8297 | FRAME - condenser, standard | 1 | |
| 2 | 92-6374 | PANEL - front | 1 | |
| 3 | 92-6375 | PANEL - front | 1 | |
| 55-5130 | RIVET - frame & panels | A/R | ||
| 4 | 67-2314 | COIL - condenser | 2 | |
| 55-6994 | SCREW - coil | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 5 | 98-7848 | SUPPORT - cover | 1 | |
| 6 | 98-7849 | SUPPORT - cover | 1 | |
| 55-5130 | RIVET - support | A/R | ||
| 7 | 33-572 | GROMMET (0.750 id) | 1 | |
| 8 | 33-452 | GROMMET (0.875 id) | 2 | |
| 9 | 33-287 | GROMMET (0.625 id) | 1 | |
| 10 | 92-1277 | INSULATION | 2 | |
| 11 | 51-1631 | STRAP - cable | A/R |
