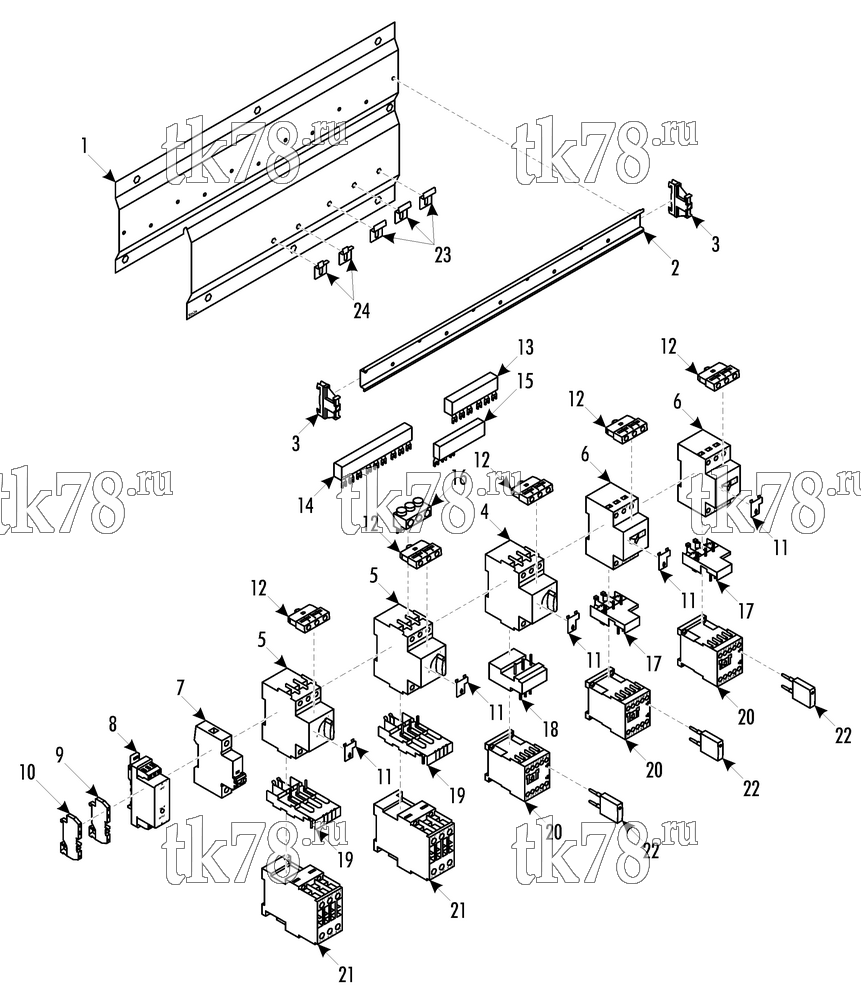

Установкa Thermo King схема CONTACTOR & CIRCUIT BREAKER GROUP – 252D1
Обновление от: 4/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9019 | PANEL - mounting | 1 | |
| 55-6994 | SCREW - panel | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 2 | 92-5205 | RAIL - din | 1 | |
| 51-2030 | RIVET - rail | 11 | ||
| 3 | 91-6465 | CLAMP | 2 | |
| 4 | 41-3510 | BREAKER - circuit (3.5 - 5.0 amp) | 1 | |
| 5 | 41-2936 | BREAKER - circuit (11 - 16 amp) | 2 | |
| 6 | 41-3805 | BREAKER - circuit (2 amp) | 2 | |
| 7 | 41-5602 | BREAKER - circuit (6 amp) | 1 | |
| 8 | 41-5727 | ARRESTER - overvoltage | 1 | |
| 9 | 41-4272 | TERMINAL | 1 | |
| 10 | 41-4273 | TERMINAL | 1 | |
| 11 | 41-4279 | COVER - scale, sealable | 5 | |
| 12 | 41-2931 | BLOCK - contact, auxiliary | 5 | |
| 13 | 41-4726 | BUSBAR (3 phase, 6-pin) | 1 | |
| 14 | 41-3889 | BUSBAR (3 phase, 9-pin) | 1 | |
| 15 | 41-4685 | BUSBAR (3 phase, 6-pin) | 1 | |
| 16 | 41-3891 | TERMINAL - input | 1 | |
| 17 | 41-3807 | ELEMENT - coupling | 2 | |
| 18 | 41-2944 | ELEMENT - coupling | 1 | |
| 19 | 41-2943 | ELEMENT - coupling | 2 | |
| 20 | 41-3887 | CONTACTOR (2.2 kW) | 3 | |
| 21 | 41-4727 | CONTACTOR (7.5 kW) | 2 | |
| 22 | 41-3812 | SUPPRESSOR | 3 | |
| 23 | 92-3615 | BRACKET - contactor | 3 | |
| 24 | 92-3616 | BRACKET - contactor | 2 | |
| 55-7663 | SCREW - bracket | 5 | ||
| 55-7369 | LOCKWASHER | 5 | ||
| 55-7697 | FLATWASHER | 5 | ||
| 55-7866 | NUT - captive | 5 |
