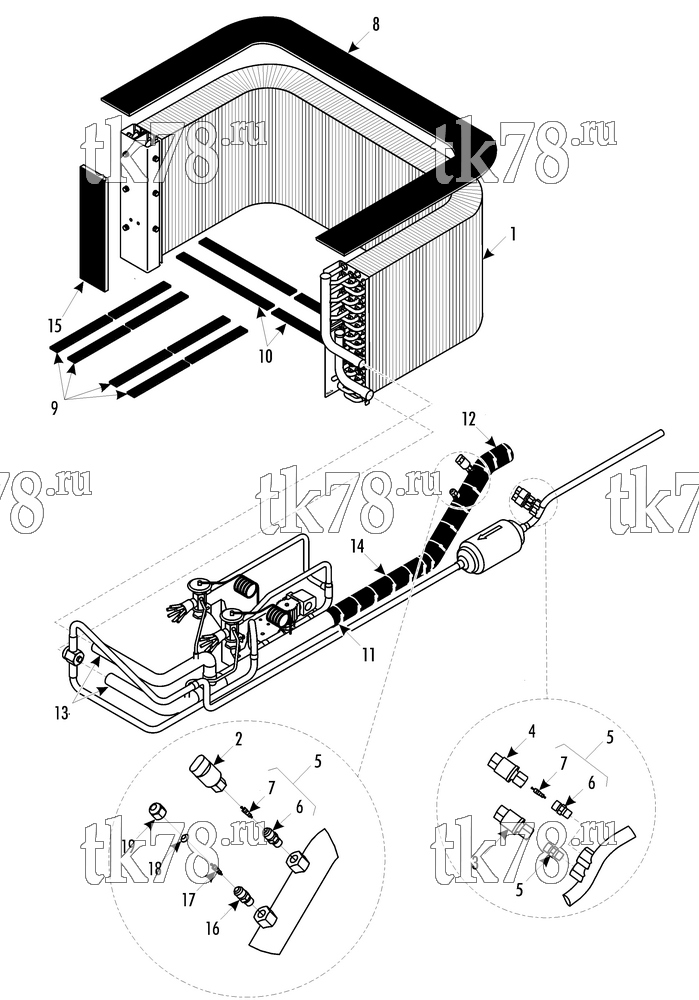

Установкa Thermo King схема EVAPORATOR COIL MOUNTING – 252C6
Обновление от: 4/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1837 | COIL - evaporator | 1 | |
| 55-6994 | SCREW - coil | 5 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-9553 | NUT - captive | 5 | ||
| 2 | 44-4258 | SWITCH - lpco | 1 | |
| 3 | 304-1921 | SWITCH - hpco | 1 | |
| 4 | 41-2588 | SWITCH - modulation | 1 | |
| 5 | 11-2886 | VALVE | 3 | |
| 6 | 55-7213 | ADAPTER - valve | 1 | |
| 7 | 11-7777 | CORE - valve | 1 | |
| 55-5672 | CAP - valve | 1 | ||
| 8 | 33-3736 | INSULATION | 1 | |
| 9 | 303-812 | INSULATION - bottom | 8 | |
| 10 | 303-813 | INSULATION - bottom | 4 | |
| 11 | 33-3578 | INSULATION - suction tube | 1 | |
| 12 | 33-3580 | INSULATION - suction tube | 1 | |
| 13 | 60-152 | TAPE - cork | 1 | |
| 14 | 55-2332 | BANDWRAP - self locking | 30 | |
| 15 | 92-9017 | INSULATION - front | 1 | |
| 16 | 55-7213 | ADAPTER - valve | 1 | |
| 17 | 11-7777 | CORE - valve | 1 | |
| 18 | 33-768 | GASKET | 1 | |
| 19 | 56-1983 | CAP | 1 |
