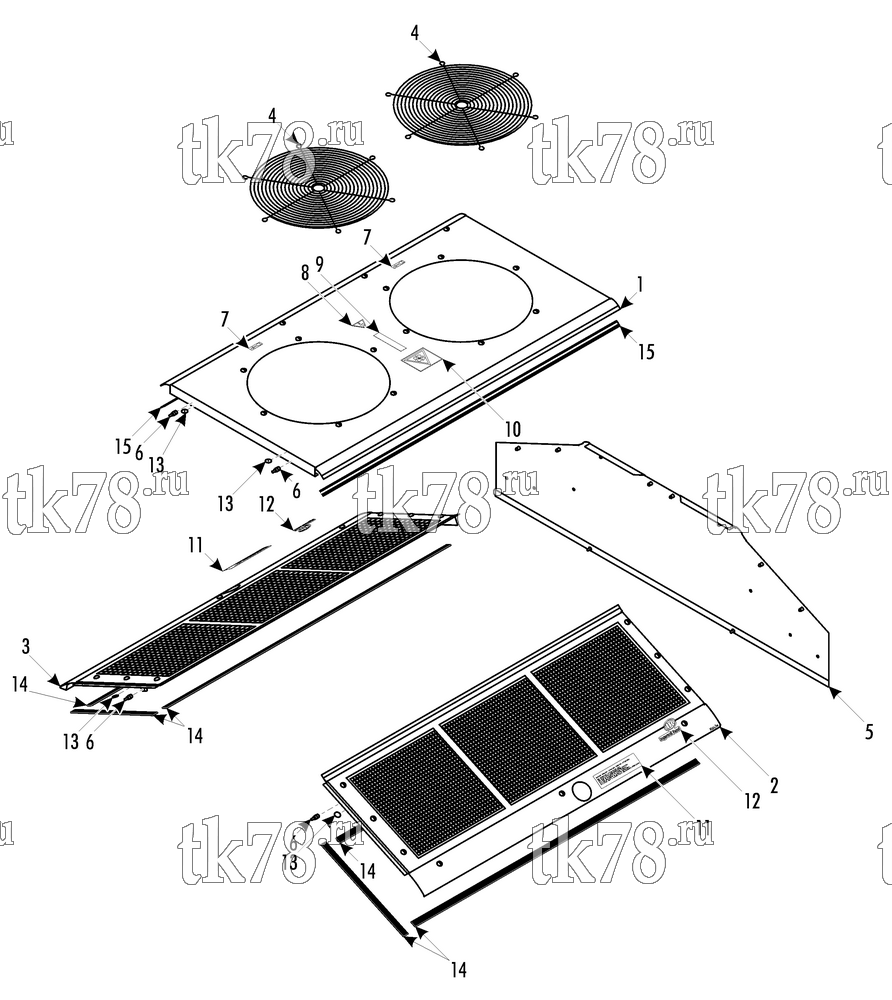

Установкa Thermo King схема CONDENSER COVERS – 252B0
Обновление от: 4/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7712 | COVER - center | 1 | |
| 2 | 98-7713 | COVER - right | 1 | |
| 3 | 98-7714 | COVER - left | 1 | |
| 51-871 | WASHER - sealing | 26 | ||
| 55-9368 | SCREW - cover | 26 | ||
| 4 | 309-3224 | GRILLE - fan (outlet) | 2 | |
| 55-9368 | SCREW - fan grille | 12 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 55-7373 | NUT - captive | 12 | ||
| 5 | 92-2822 | COVER - back | 1 | |
| 51-871 | WASHER - sealing | 10 | ||
| 55-7373 | NUT - captive | 8 | ||
| 55-9368 | SCREW - cover | 10 | ||
| 6 | 55-7035 | SCREW - ground | 4 | |
| 55-7354 | NUT | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 7 | 99-4931 | NAMEPLATE - arrow | 2 | |
| 8 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 9 | 309-3064 | NAMEPLATE - No Step | 1 | |
| 10 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 11 | 92-2823 | NAMEPLATE - lifting | 2 | |
| 12 | 92-1773 | NAMEPLATE - IR Logo | 2 | |
| 13 | 92-783 | LABEL - ground | 4 | |
| 14 | 92-2302 | STRIP - neoprene | A/R | |
| 15 | 99-6968 | STRIP - neoprene | A/R |
