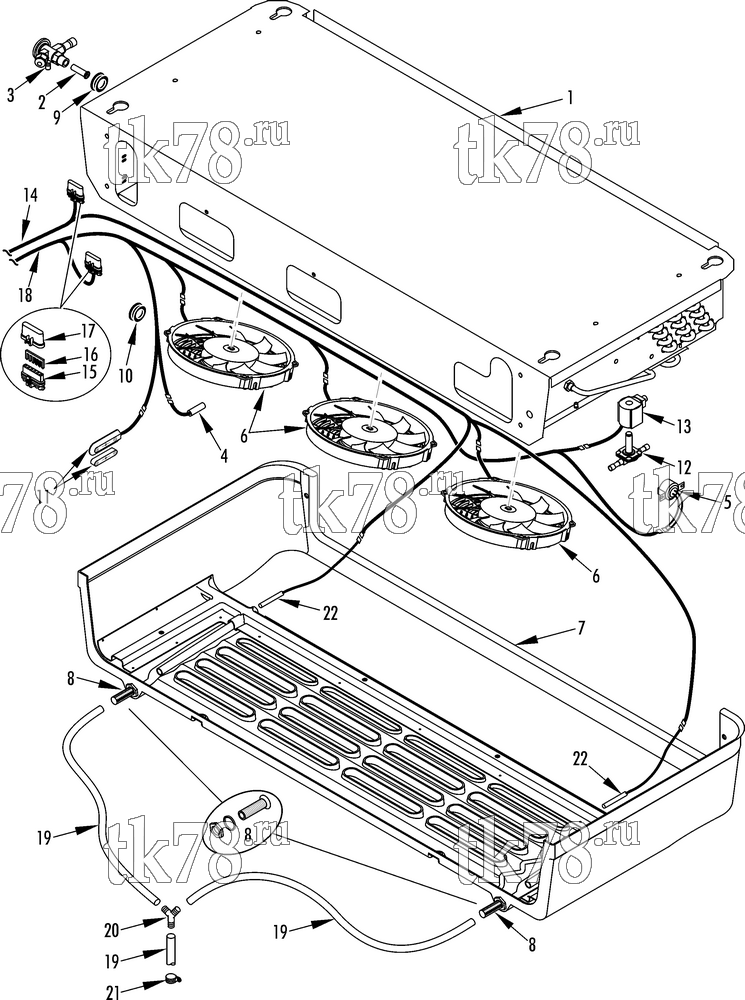

Установкa Thermo King схема EVAPORATOR GROUP (V-520 RT) – 251F4
Обновление от: 11/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2383 | COIL - evaporator | 1 | |
| 2 | 61-1416 | FILTER - expansion valve | 1 | |
| 3 | 61-3849 | VALVE - expansion (R134a) | 1 | |
| 61-3850 | VALVE - expansion (MAX units, R404a) | 1 | ||
| 4 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-7366 | SCREW - sensor | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 5 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 6 | 78-1183 | FAN - evaporator (12V) | 3 | |
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| 7 | 98-8761 | COVER - evaporator | 1 | |
| 55-7366 | SCREW - cover | 20 | ||
| 55-7404 | LOCKWASHER | 20 | ||
| 55-9826 | FLATWASHER | 20 | ||
| 8 | 92-3466 | TUBE - evaporator drain | 2 | |
| 51-791 | WASHER | 2 | ||
| 51-790 | NUT | 2 | ||
| 9 | 33-572 | GROMMET (3/4 in) | 1 | |
| 10 | 33-3135 | GROMMET (35 mm) | 1 | |
| 11 | 40-907 | SWITCH - door | 1 | |
| 51-1321 | SCREW - switch (.75 in) | 2 | ||
| 55-8421 | SCREW - switch (1.0 in) | 2 | ||
| 12 | 66-7878 | SOLENOID - defrost | 1 | |
| 13 | 41-5789 | COIL - 12VDC | 1 | |
| 14 | 42-295 | HARNESS - evaporator (see 255H5) | 1 | |
| 15 | 41-1790 | CONNECTOR - busbar | 1 | |
| 16 | 41-1788 | BUSBAR | 1 | |
| 17 | 41-1787 | COVER - connector | 1 | |
| 18 | 41-9108 | HARNESS - main (10 & 30 units, see 240C0) | 1 | |
| 42-298 | HARNESS - main (20 & 50 units, see 255D5) | 1 | ||
| 19 | 11-9223 | HOSE - drain | A/R | |
| 20 | 55-9258 | CONNECTOR - hose (Y) | 1 | |
| 21 | 55-3359 | CLAMP - hose | 5 | |
| 22 | 42-230 | HARNESS - drain tube heater (12V for MAX units) | 2 |
