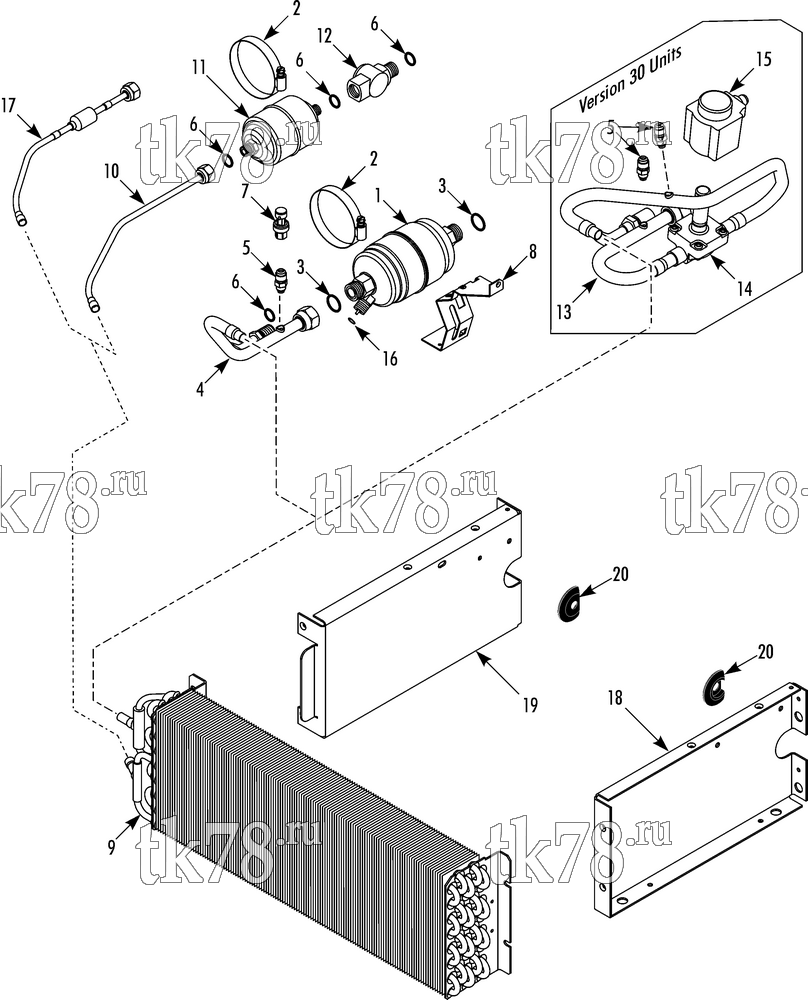

Установкa Thermo King схема REFRIGERATION CONDENSER (10 & 30, 2/11 & after) – 250D5
Обновление от: 8/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 2 | 55-6225 | CLAMP - filter | 2 | |
| 3 | 33-566 | O-RING (#8) | 2 | |
| 4 | 61-5578 | TUBE - discharge | 1 | |
| 5 | 61-2504 | VALVE - service port (Schrader) | 1 | |
| 61-468 | CAP - valve | 1 | ||
| 6 | 33-1015 | O-RING (#6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 41-5781 | TRANSDUCER - discharge | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 8 | 92-8946 | BRACKET - tube | 1 | |
| 55-9915 | RIVET - bracket | 2 | ||
| 9 | 67-2306 | COIL - condenser | 1 | |
| 55-9915 | RIVET - coil | 12 | ||
| 10 | 61-5579 | TUBE - liquid (V-100 10, also MAX 10 after 10/11) | 1 | |
| 11 | 61-3852 | DEHYDRATOR (#6) | 1 | |
|
10-61-3852 | Дегидратор, V-Series/C-Series | 1 690 ₽ |
|
| 12 | 61-5144 | SIGHT GLASS (#6) | 1 | |
| 13 | 61-5580 | TUBE - discharge (MAX 30 only) | 1 | |
| 14 | 66-9032 | VALVE - solenoid (MAX 30 only, see 193A5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 15 | 41-5789 | COIL (12V) | 1 | |
| 41-5791 | COIL (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 16 | 33-1461 | O-RING - liquid (#4) | 1 | |
| 17 | 61-5581 | TUBE - liquid line (V-100 MAX 10, units before 10/11) | 1 | |
| 66-8669 | VALVE - check | 1 | ||
| 18 | 92-8948 | SUPPORT - coil (control box side) | 1 | |
| 19 | 92-8949 | SUPPORT - coil (tube side) | 1 | |
| 20 | 33-2656 | GROMMET - harness | 2 |
