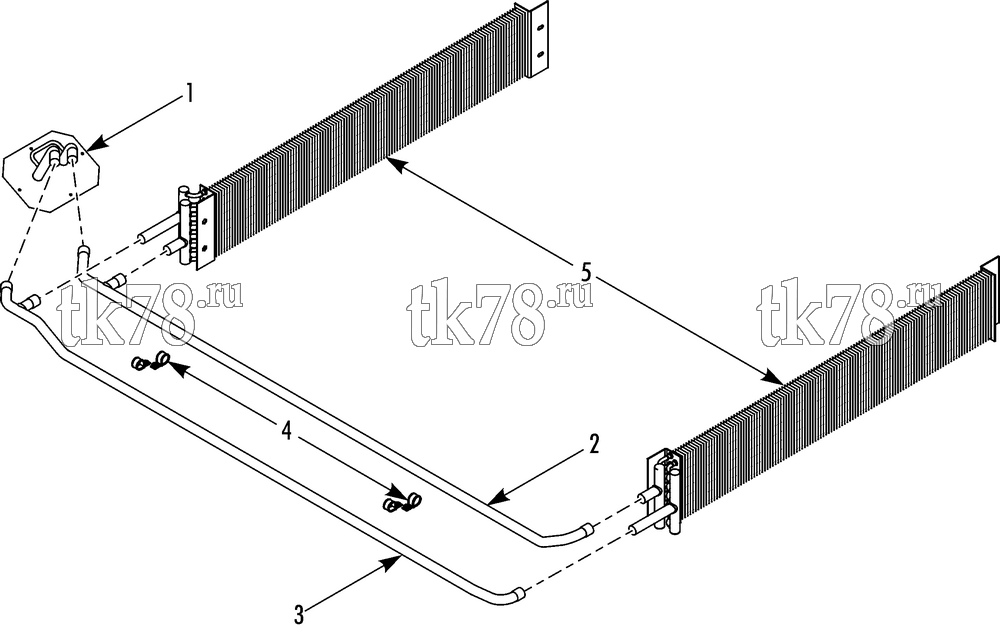

Установкa Thermo King схема HEATING COMPONENTS – 250D2
Обновление от: 4/19/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5530 | TUBE - inlet/outlet | 1 | |
| 55-5130 | RIVET - tube assembly | 4 | ||
| 2 | 61-5531 | TUBE - heating | 1 | |
| 3 | 61-5532 | TUBE - heating | 1 | |
| 4 | 55-3741 | CLAMP - tube | 4 | |
| 55-7035 | SCREW - clamp | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 5 | 67-2621 | COIL - heating | 2 | |
| 55-7035 | SCREW - coil | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 |
