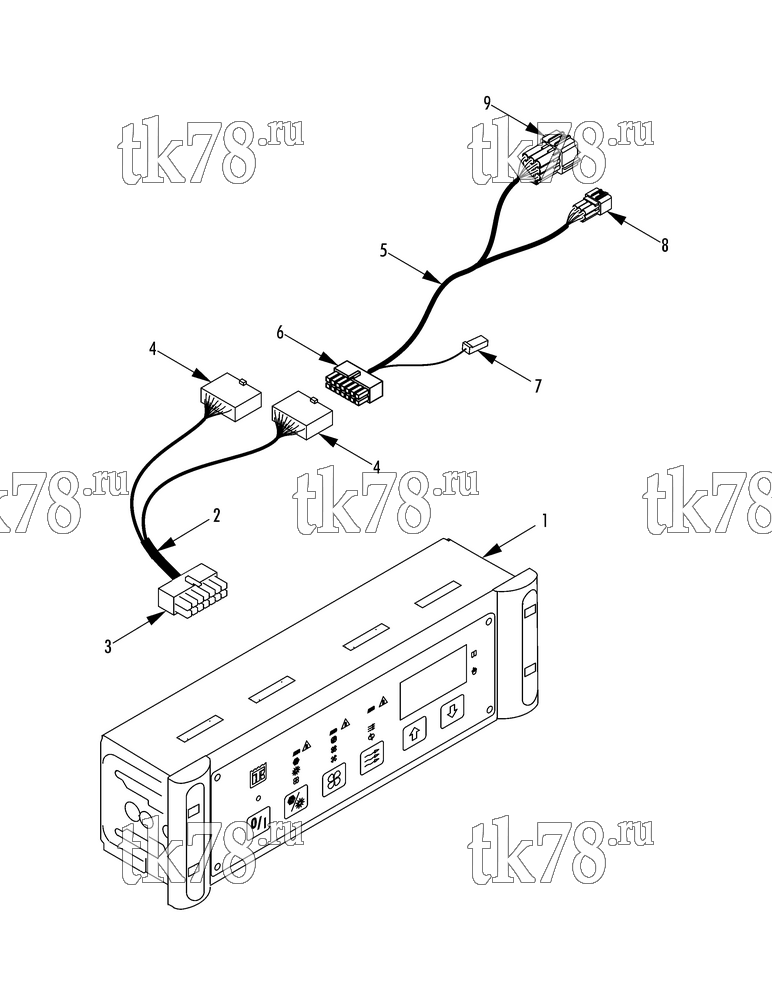

Установкa Thermo King схема SmartAIRE DRIVER PANEL – 250C9
Обновление от: 8/20/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6998 | SmartAIRE | 1 | |
| 2 | 41-9779 | HARNESS - connector to SmartAIRE | 1 | |
| 3 | 41-661 | CONNECTOR - SmartAIRE | 1 | |
| 41-1807 | SOCKET - 18 ga | 14 | ||
| 4 | 41-6160 | PLUG - 14 terminal | 2 | |
| 651-148 | PIN - 18 ga | 28 | ||
| 5 | 41-9777 | HARNESS - unit to connector (12m) | 1 | |
| 6 | 41-661 | CONNECTOR - 14-pin | 1 | |
| 7 | 44-5066 | TERMINAL - fingrip | 1 | |
| 8 | 41-8534 | CONNECTOR - 6-pin | 1 | |
| 9 | 41-8509 | CONNECTOR - 9-pin | 1 | |
| 41-8513 | TERMINAL - male | 14 | ||
| 41-8514 | SEAL | 14 |
