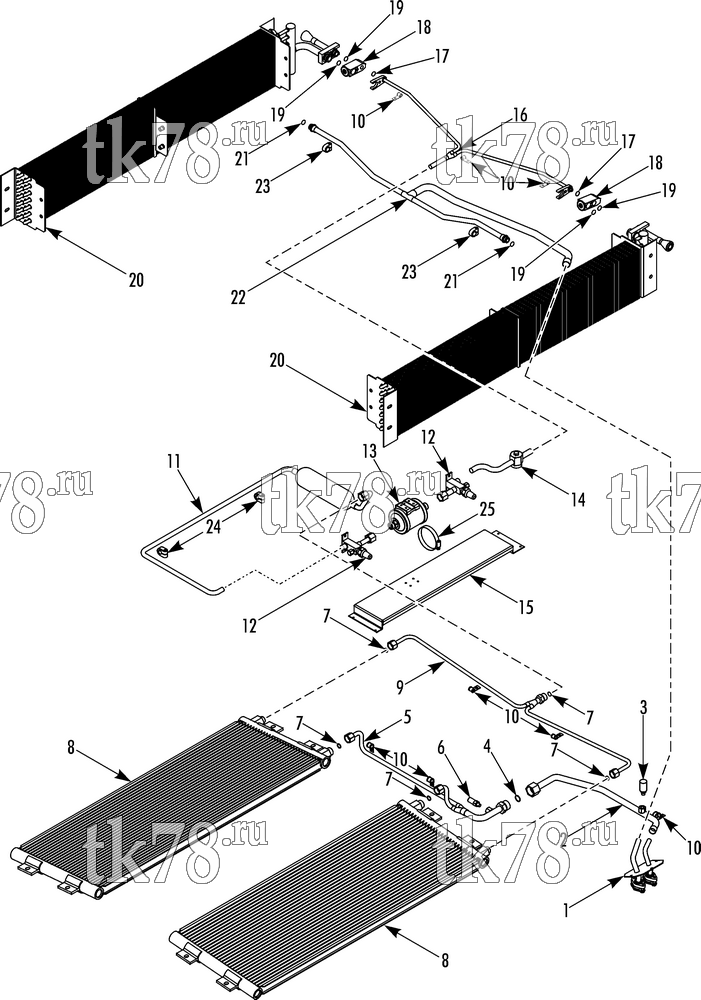

Установкa Thermo King схема REFRIGERATION COMPONENTS – 250C6
Обновление от: 4/19/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5522 | PLATE - discharge and suction | 1 | |
| 55-5130 | RIVET - plate | 8 | ||
| 2 | 61-5523 | TUBE - discharge | 1 | |
| 3 | 41-5220 | SWITCH - hpco (R407c) | 1 | |
| 41-5764 | SWITCH - hpco (R134a) | 1 | ||
| 4 | 33-1222 | O-RING - discharge | 1 | |
| 5 | 61-5524 | TUBE - coil inlet | 1 | |
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 33-566 | O-RING - condenser coil | 3 | |
| 8 | 67-2619 | COIL - condenser | 2 | |
| 55-7035 | SCREW - coil | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 9 | 61-5525 | TUBE - coil outlet | 1 | |
| 10 | 55-2239 | CLAMP - tube (.375 dia) | 5 | |
| 55-3065 | CLAMP - tube (.5 dia) | 2 | ||
| 55-7035 | SCREW - clamp | 7 | ||
| 55-6996 | LOCKWASHER | 7 | ||
| 55-6995 | FLATWASHER | 7 | ||
| 11 | 61-5526 | TANK - receiver | 1 | |
| 12 | 66-4694 | VALVE - shutoff | 1 | |
| 66-2170 | CAP | 1 | ||
| 55-7035 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 13 | 61-4676 | DEHYDRATOR | 1 | |
| 14 | 66-1188 | INDICATOR - liquid | 1 | |
| 15 | 92-8911 | SUPPORT - dehydrator | 1 | |
| 16 | 61-5527 | TUBE - indicator to evaporator | 1 | |
| 17 | 33-4778 | O-RING | 2 | |
| 18 | 61-5528 | VALVE - expansion (R407c) | 2 | |
| 61-5533 | VALVE - expansion (R134a) | 2 | ||
| 51-1343 | SCREW - valve | 4 | ||
| 19 | 33-4779 | O-RING | 3 | |
| 20 | 67-2620 | COIL - evaporator | 2 | |
| 21 | 33-4780 | O-RING | 4 | |
| 22 | 61-5529 | TUBE - suction | 1 | |
| 23 | 91-758 | CLAMP - tube (.625 id) | 2 | |
| 24 | 91-759 | CLAMP - tube (.50 id) | 2 | |
| 55-8464 | SCREW - clamp | 4 | ||
| 25 | 55-2688 | CLAMP - dehydrator | 1 |
