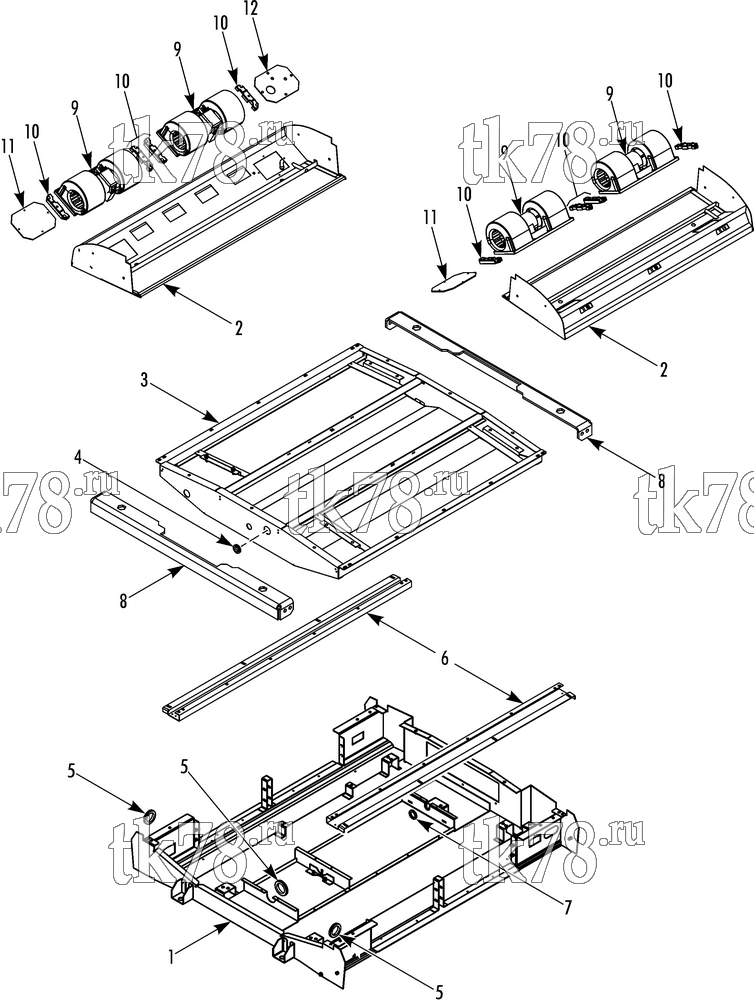

Установкa Thermo King схема FRAME AND EVAPORATOR BLOWERS – 250C5
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8684 | FRAME | 1 | |
| 2 | 98-8685 | FRAME - blowers | 2 | |
| 55-7035 | SCREW - frame (M6X25, bottom) | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-6994 | SCREW - frame (M6X20, upper) | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 3 | 98-8686 | FRAME - condenser | 1 | |
| 4 | 33-1283 | GROMMET (15/16 id) | 1 | |
| 5 | 33-1371 | GROMMET (1.703 id) | 3 | |
| 6 | 92-8907 | U-BEAM | 2 | |
| 55-5130 | RIVET - u-beam | 16 | ||
| 7 | 33-3967 | GROMMET (.875 id) | 1 | |
| 8 | 92-8908 | BRACKET - fan support | 2 | |
| 55-5130 | RIVET - bracket | 8 | ||
| 9 | 78-1531 | BLOWER - evaporator | 4 | |
| 10 | 51-259 | HOLDER - blower | 8 | |
| 55-8464 | SCREW - holder | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 11 | 92-8909 | COVER - port | 2 | |
| 12 | 92-8910 | COVER - harness port | 1 | |
| 55-5130 | RIVET - cover | 12 |
