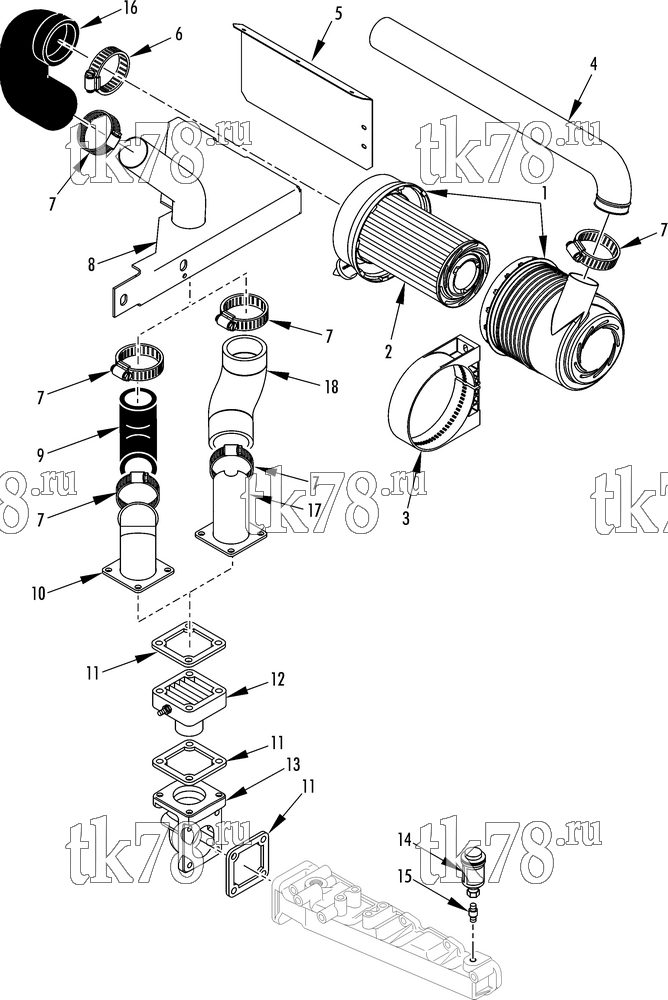

Установкa Thermo King схема AIR CLEANER GROUP (50s) – 250A7
Обновление от: 12/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9299 | FILTER - air cleaner (EMI 3000) | 1 | |
| 10-11-9299 | Фильтр воздушный в сборе, SL/SLe/SLX/SLXe | 2 700 ₽ |
|
|
| 2 | 11-9300 | ELEMENT - air cleaner (EMI 3000) | 1 | |
|
US-11-9300 | Фильтр воздушный, SL/SLe/SLX/SLXe | 4 190 ₽ |
|
|
10-11-9300 | Фильтр воздушный, SL/SLe/SLX/SLXe | 1 540 ₽ |
|
|
11-9300 OEM | Фильтр воздушный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 3 | 92-861 | CLAMP - air filter | 1 | |
| 55-4967 | NUT - clamp | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 4 | 13-313 | HOSE - inlet | 1 | |
| 5 | 90-413 | KIT - air intake shield | 1 | |
| 51-321 | RIVET - shield | 3 | ||
| 6 | 55-1636 | CLAMP - hose (1.125 to 3.00) | 1 | |
| 7 | 55-4979 | CLAMP - hose (1.560 to 2.50) | 4 | |
| 8 | 98-4331 | BRACKET - motor support (see 204D1) | 1 | |
| 98-8389 | BRACKET - motor support (w/24 hp motor, see 240D4) | 1 | ||
| 9 | 11-9275 | HOSE - air cleaner | 1 | |
| 10 | 11-9276 | TUBE - air intake | 1 | |
| 55-5424 | SCREW - intake tube (M8 x 25) | 2 | ||
| 55-5932 | SCREW - intake tube (M8 x 60) | 2 | ||
| 11 | 33-2765 | GASKET - intake elbow | 3 | |
|
33-2765 OEM | Прокладка нагревательного элемента, Yanmar 482 / 486 / 486V | 1 590 ₽ |
|
| 12 | 41-2147 | HEATER - air (see 204F7) | 1 | |
|
41-2147 OEM | Нагревательный элемент, Yanmar 482 / 486 / 486V | 17 610 ₽ |
|
| 13 | 11-9277 | ELBOW - air intake | 1 | |
| 55-6191 | SCREW - elbow | 4 | ||
| 55-4613 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 14 | 11-7757 | INDICATOR - air restrictor | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 15 | 11-7828 | FITTING - indicator | 1 | |
| 16 | 11-8037 | HOSE - air cleaner | 1 | |
| 17 | 13-1050 | TUBE - air intake (w/24 hp motor) | 1 | |
| 55-5424 | SCREW - intake tube (M8 x 25) | 2 | ||
| 55-5932 | SCREW - intake tube (M8 x 60) | 2 | ||
| 18 | 13-1051 | HOSE - air cleaner (w/24 hp motor) | 1 |
