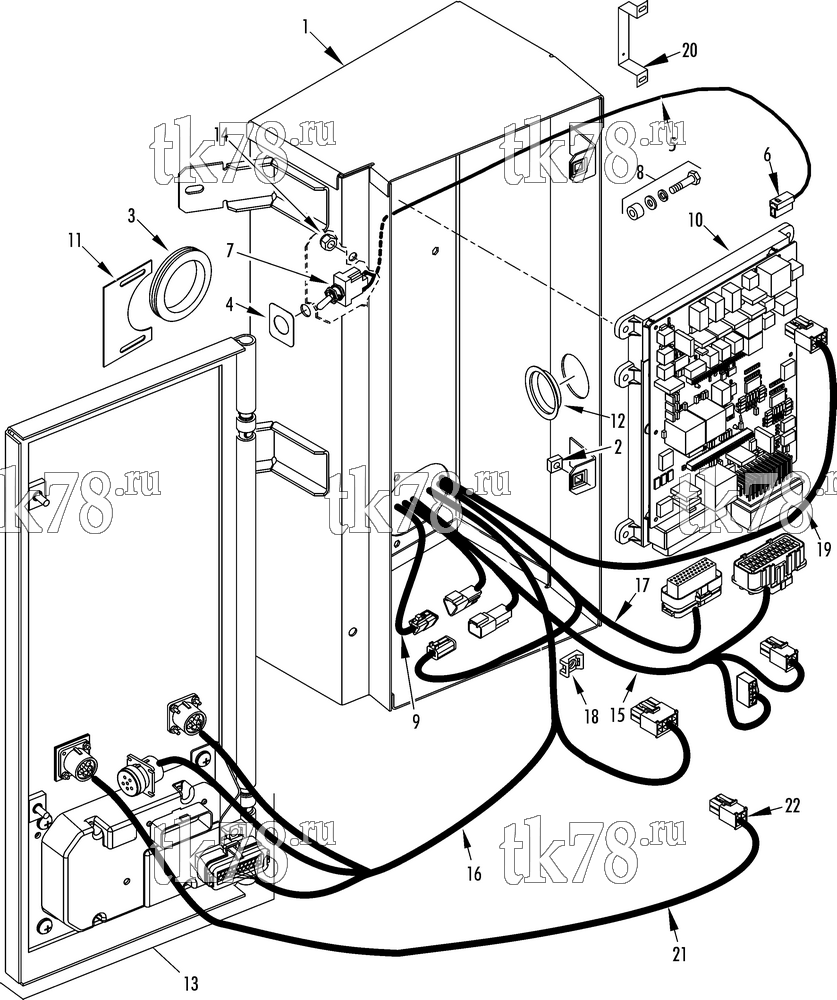

Установкa Thermo King схема CONTROL BOX (50s) – 250A6
Обновление от: 12/2/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6448 | BOX - control | 1 | |
| 2 | 55-3059 | NUT - captive (cover) | 2 | |
| 3 | 33-628 | GROMMET (2-1/8 id) | 1 | |
| 4 | 93-554 | NAMEPLATE - microprocessor (on/off) | 1 | |
| 5 | 41-5487 | HARNESS - switch | 1 | |
| 6 | 44-5219 | CONNECTOR (2-pin) | 1 | |
| 7 | 41-7419 | SWITCH | 1 | |
| 33-4134 | RING - sealing | 1 | ||
| 8 | 55-538 | SCREW - box (1/4-20 x 5/8) | 3 | |
| 55-731 | SCREW - box (1/4-20 x 1-3/4) | 1 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-9688 | WASHER - special | 1 | ||
| 9 | 41-9703 | HARNESS - alternator | 1 | |
| 10 | 45-2361 | BOARD & CONTROLLER (SR-3) | 1 | |
| 55-2269 | SCREW - controller | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-8752 | INSERT - threaded | 6 | ||
| 11 | 91-9860 | BRACKET - control box | 1 | |
| 55-165 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 12 | 55-6474 | PLUG - hole | 1 | |
| 13 | NSS | COVER - box (see 247F4) | 1 | |
| 14 | 55-2114 | NUT - cover (hexagon) | 2 | |
| 55-4954 | NUT - cover (lock) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 15 | 41-9692 | HARNESS - main (see 247F8) | 1 | |
| 16 | 41-9701 | HARNESS - HMI (see 250B6) | 1 | |
| 17 | 41-9696 | HARNESS - sensor (see 247F9) | 1 | |
| 18 | 99-6093 | MOUNT - cable tie | A/R | |
| 55-3136 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | A/R | ||
| 19 | 41-7297 | HARNESS - low voltage to high voltage | 1 | |
| 44-8920 | PLUG (6 terminal) | 1 | ||
| 20 | 91-5726 | BRACKET - main harness | 1 | |
| 21 | 41-5484 | CABLE - controller download | 1 | |
| 21 | 41-5710 | PLUG (4-pin, J10) | 2 |
