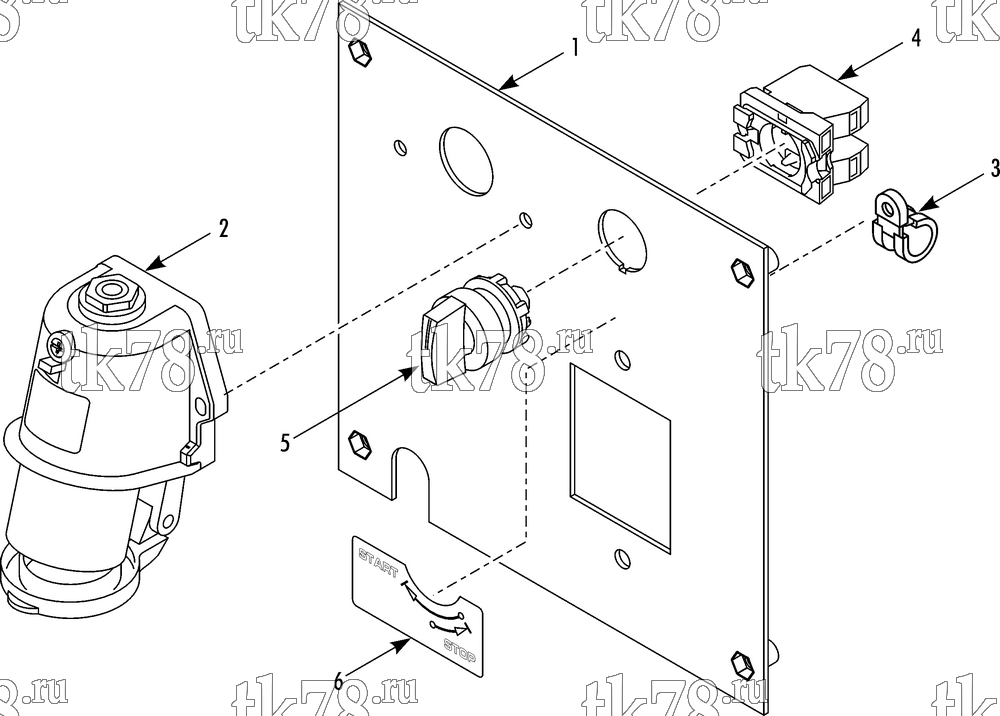

Установкa Thermo King схема MAIN POWER PLATE – 248E8
Обновление от: 9/30/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8675 | PLATE - main power | 1 | |
| 55-7172 | SCREW - plate | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-8893 | WASHER | 4 | ||
| 2 | 41-3667 | RECEPTACLE - power (220/1/50, mates w/ 41-972) | 1 | |
| 55-7036 | SCREW - plug | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7034 | NUT | 2 | ||
| 3 | 92-1501 | CLAMP | 1 | |
| 55-7036 | SCREW - plug & clamp | 3 | ||
| 55-7034 | NUT | 3 | ||
| 4 | 41-7415 | SWITCH | 1 | |
| 5 | 41-7416 | CONTROL - head | 1 | |
| 6 | 92-5973 | NAMEPLATE - Start/Stop | 1 |
