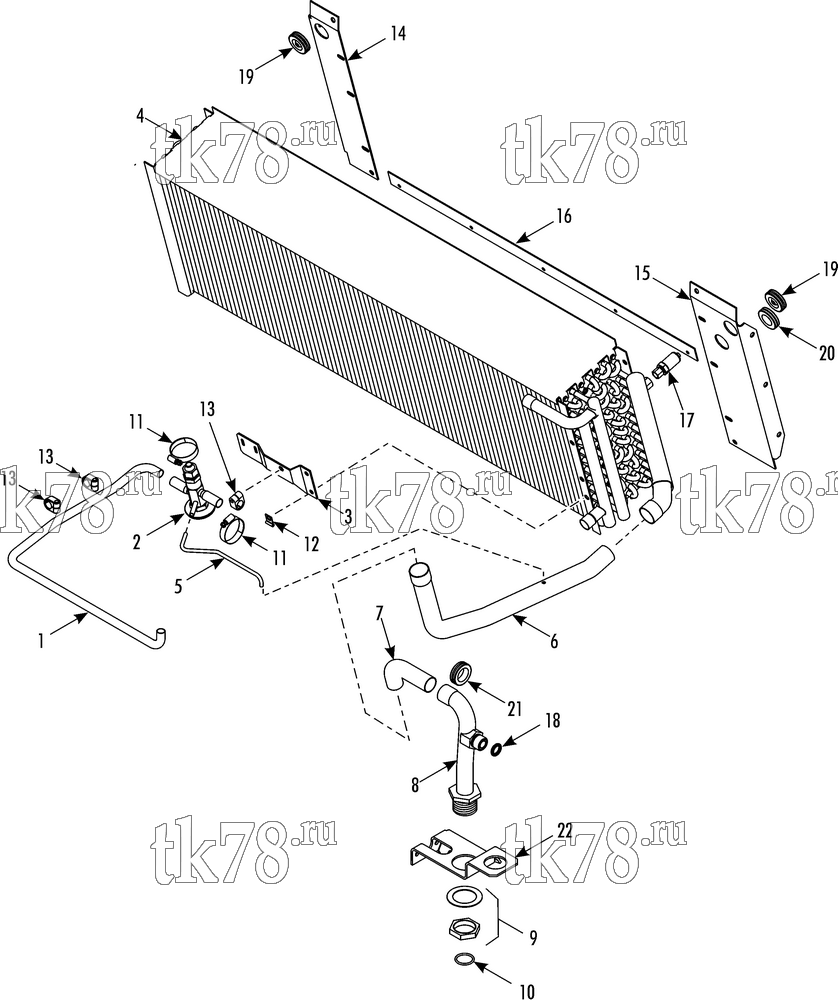

Установкa Thermo King схема REFRIGERATION EVAPORATOR – 248E0
Обновление от: 8/30/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5186 | TUBE - liquid, sightglass to valve | 1 | |
| 2 | 61-5185 | VALVE - expansion (R134a) | 1 | |
| 3 | 92-8467 | BRACKET - valve | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 4 | 67-2541 | COIL - evaporator | 1 | |
| 55-2957 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-8711 | INSERT | 6 | ||
| 5 | 61-5323 | TUBE - equalizer | 1 | |
| 6 | 61-5324 | TUBE - suction, coil to tube | 1 | |
| 7 | 61-5325 | TUBE - suction, elbow (90 degree) | 1 | |
| 8 | 61-5326 | TUBE - suction, tube to bulkhead | 1 | |
| 61-5327 | ADAPTER - saddle (auxiliary hookup) | 1 | ||
| 51-1292 | ADAPTER - bulkhead (# 24) | 1 | ||
| 9 | 55-5999 | LOCKWASHER (2.01 id) | 1 | |
| 55-9422 | NUT - bulkhead | 1 | ||
| 10 | 33-920 | O-RING (1-1/2 id) | 1 | |
| 11 | 55-3402 | CLAMP - valve | 2 | |
| 12 | 51-2031 | CLAMP - equalizer tube (.125 id) | 1 | |
| 13 | 91-758 | CLAMP - tube (.625 id) | 2 | |
| 55-2977 | SCREW - clamp | 2 | ||
| 55-4953 | NUT | 2 | ||
| 14 | 92-8464 | BRACKET - coil, roadside | 1 | |
| 15 | 92-8689 | BRACKET - coil, curbside | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 16 | 92-8466 | PLATE - cover (evaporator bottom) | 1 | |
| 17 | 41-9044 | TRANSDUCER - suction | 1 | |
| 18 | 33-2193 | O-RING (11/16 id) | 1 | |
| 19 | 33-2110 | GROMMET (1.00 id x .125 groove) | 2 | |
| 20 | 33-1084 | GROMMET (1.00 id x .06 groove) | 1 | |
| 21 | 33-1217 | GROMMET (1.375 id) | 1 | |
| 22 | 92-8686 | BRACKET - support | 1 |
