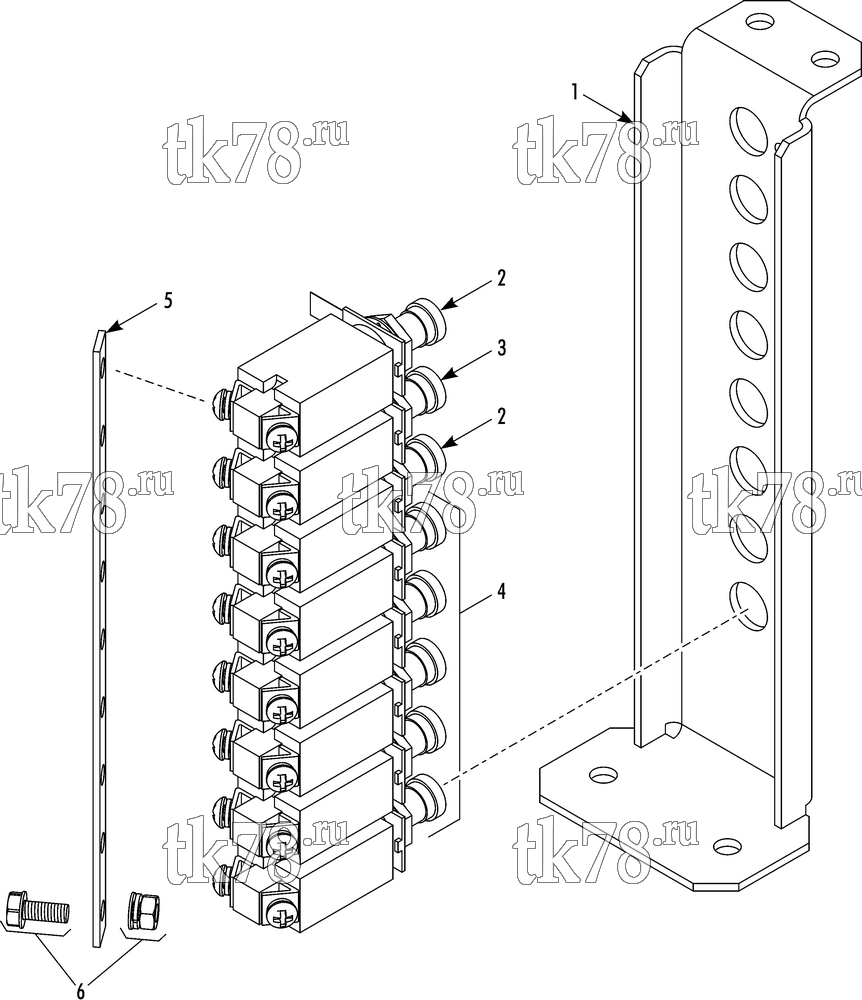

Установкa Thermo King схема CIRCUIT BREAKERS – 248D9
Обновление от: 10/4/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8672 | SUPPORT - breakers | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 2 | 41-7408 | BREAKER - circuit (3 amp) | 2 | |
| 3 | 41-7409 | BREAKER - circuit (5 amp) | 1 | |
| 4 | 41-7410 | BREAKER - circuit (10 amp) | 5 | |
| 5 | 41-9576 | STRIP - breaker switch | 1 | |
| 6 | 55-9348 | SCREW | 1 | |
| 55-7368 | FLATWASHER | 2 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7698 | NUT | 1 |
