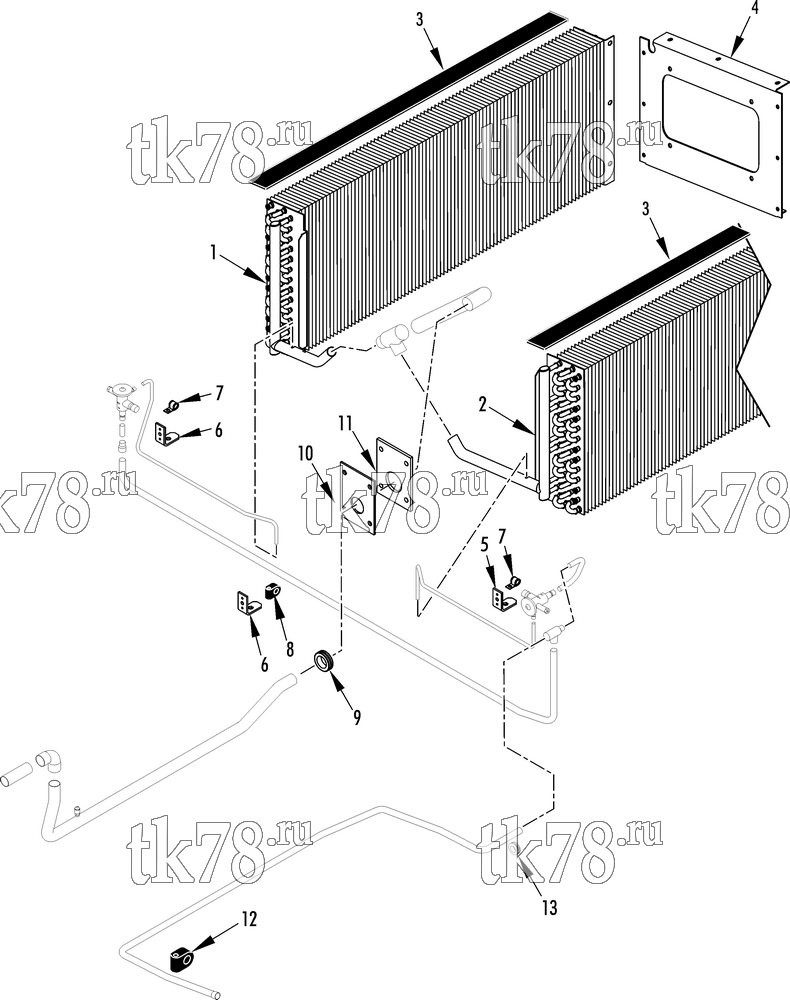

Установкa Thermo King схема EVAPORATOR MOUNTING & CLAMPS – 248B3
Обновление от: 9/17/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2526 | COIL - evaporator (curbside) | 1 | |
| 2 | 67-2527 | COIL - evaporator (roadside) | 1 | |
| 55-1587 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-4414 | WASHER - special | 6 | ||
| 55-8711 | INSERT - threaded | 6 | ||
| 3 | 33-4715 | INSULATION - coil | 2 | |
| 4 | 92-8615 | BRACKET - mount | 1 | |
| 55-1587 | SCREW - bracket (3/4 inch lg) | 6 | ||
| 55-2957 | SCREW - bracket (7/8 inch lg) | 3 | ||
| 55-1800 | LOCKWASHER | 9 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-8711 | INSERT | 13 | ||
| 5 | 92-6980 | BRACKET - support | 1 | |
| 6 | 92-4046 | BRACKET - support | 2 | |
| 55-2957 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 7 | 55-9423 | CLAMP - valve | 2 | |
| 8 | 91-759 | CLAMP - tube | 1 | |
| 55-2957 | SCREW - clamp | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8979 | INSERT | 3 | ||
| 9 | 33-489 | GROMMET (1-1/4 id) | 1 | |
| 10 | 92-4045 | PLATE - suction tube | 1 | |
| 55-2977 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 11 | 33-3963 | GASKET - plate | 1 | |
| 12 | 91-758 | CLAMP - tube | 1 | |
| 55-3675 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 13 | 33-367 | GROMMET (625 id) | 1 |
