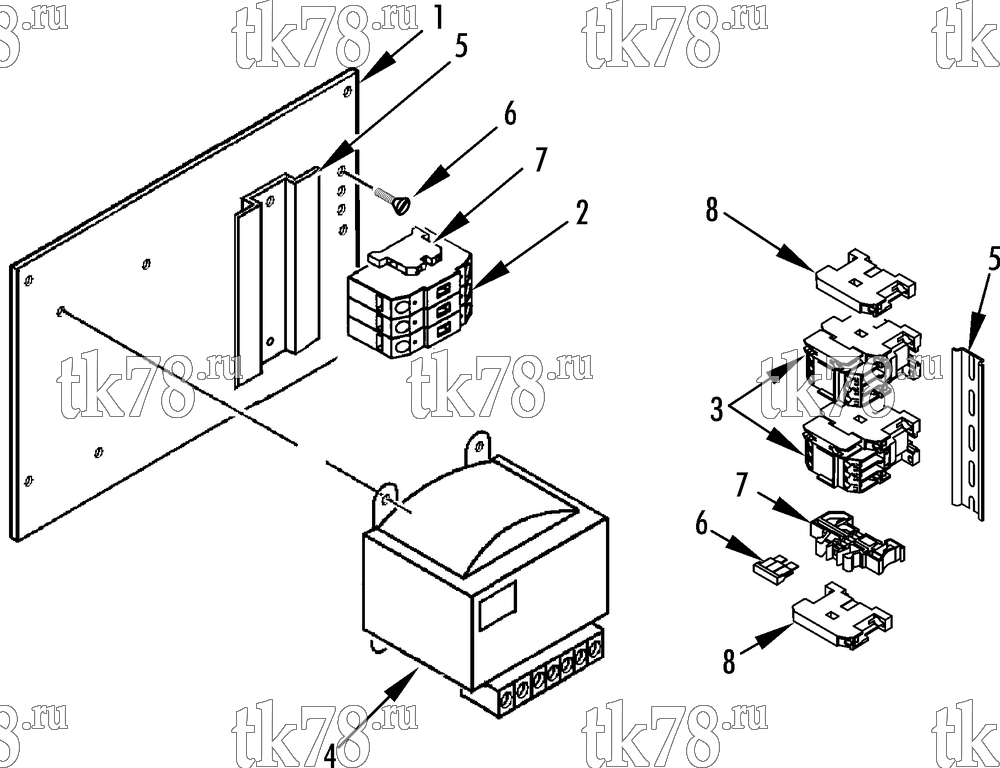

Установкa Thermo King схема HIGH VOLTAGE TRAY – 247E2
Обновление от: 10/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3445 | PLATE - bottom | 1 | |
| 51-336 | SCREW - plate to box | 4 | ||
| 2 | 41-9592 | BREAKER - circuit (32 amp) | 1 | |
| 3 | 41-3605 | CONTACTOR (AC, 50/60, CI 25) | 2 | |
| 4 | 41-3317 | TRANSFORMER | 1 | |
| 55-9396 | SCREW - transformer | 4 | ||
| 5 | 91-9915 | RAIL - din (120 mm) | 1 | |
| 51-336 | SCREW - rail | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 6 | 44-9359 | FUSE 7.5 amp | 1 | |
| 7 | 41-5105 | BLOCK - terminal | 1 | |
| 8 | 91-8737 | BLOCK - ground | 2 |
