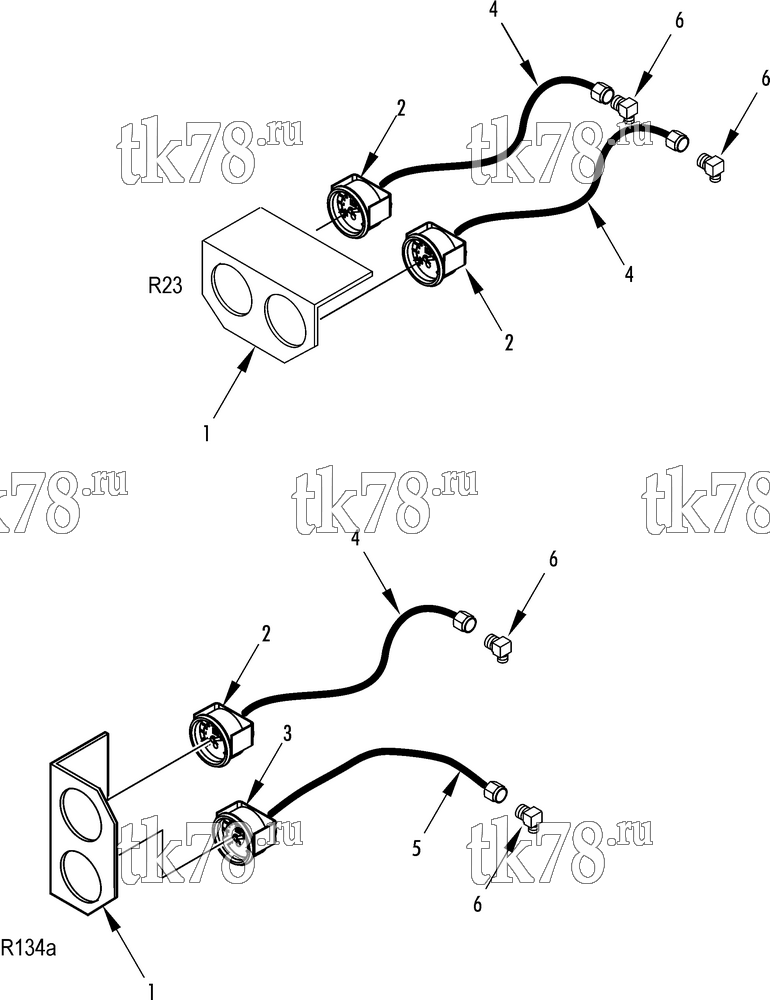

Установкa Thermo King схема GAUGE GROUP – 247D7
Обновление от: 9/21/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8637 | BRACKET - gauge | 2 | |
| 51-1442 | SCREW - bracket | 4 | ||
| 51-1464 | FLATWASHER | 4 | ||
| 55-9054 | WASHER - insulator | 4 | ||
| 2 | 66-9890 | GAUGE - pressure (R134a & R23, 400 psi) | 3 | |
| 3 | 506-413 | GAUGE - pressure (R134a only, 150 psi) | 1 | |
| 33-3212 | GASKET - gauge | 4 | ||
| 55-8382 | SCREW - gauge | 6 | ||
| 55-7830 | FLATWASHER | 6 | ||
| 55-9086 | WASHER - insulator | 6 | ||
| 55-7864 | NUT | 12 | ||
| 4 | 61-154 | TUBE - gauge (R134a & R23) | 3 | |
| 5 | 61-5352 | TUBE - gauge (R134a only) | 1 | |
| 6 | 55-9615 | ELBOW | 4 |
