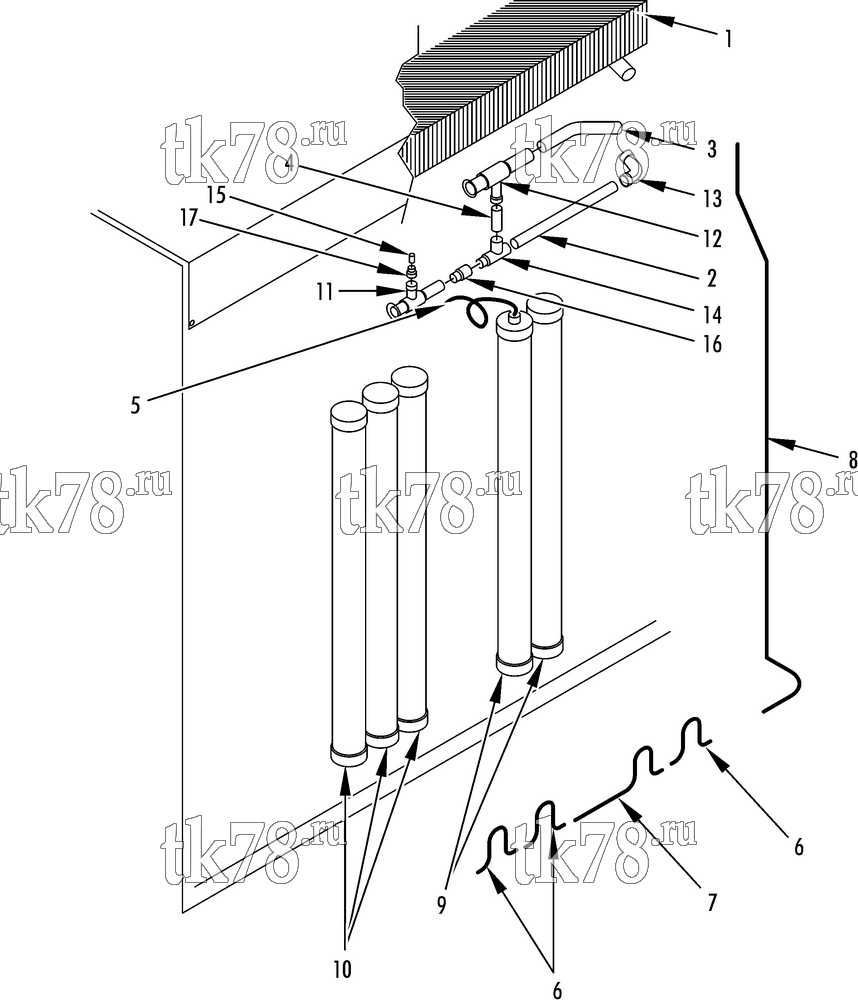

Установкa Thermo King схема REFRIGERATION EVAPORATOR (R23) – 247D6
Обновление от: 9/21/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1591 | COIL - evaporator | 1 | |
| 2 | 66-9110 | TUBE - suction | 1 | |
| 3 | 66-9109 | TUBE - suction | 1 | |
| 4 | 66-9111 | TUBE - cpr valve | 1 | |
| 5 | 66-9881 | TUBE - tank to receiver | 1 | |
| 6 | 66-9882 | TUBE - tee to tee (short) | 3 | |
| 7 | 61-5349 | TUBE - tee to tee (long) | 1 | |
| 8 | 66-9889 | TUBE - joint to tee | 1 | |
| 9 | 67-1506 | TANK - receiver (2 tanks) | 1 | |
| 10 | 67-1505 | TANK - receiver (3 tanks) | 1 | |
| 11 | 61-5350 | VALVE - discharge pressure regulator | 1 | |
| 12 | 61-5351 | VALVE - suction pressure regulator | 1 | |
| 13 | 55-6506 | ELBOW - evaporator to KVR | 1 | |
| 14 | 55-5616 | TEE | 1 | |
| 15 | 55-9305 | REDUCER (1/2 ftg 1/4 sld) | 1 | |
| 16 | 55-1292 | REDUCER (1-1/8 ftg 7/8 sld) | 1 | |
| 17 | 55-4935 | REDUCER (7/8 ftg 1/2 sld) | 1 |
