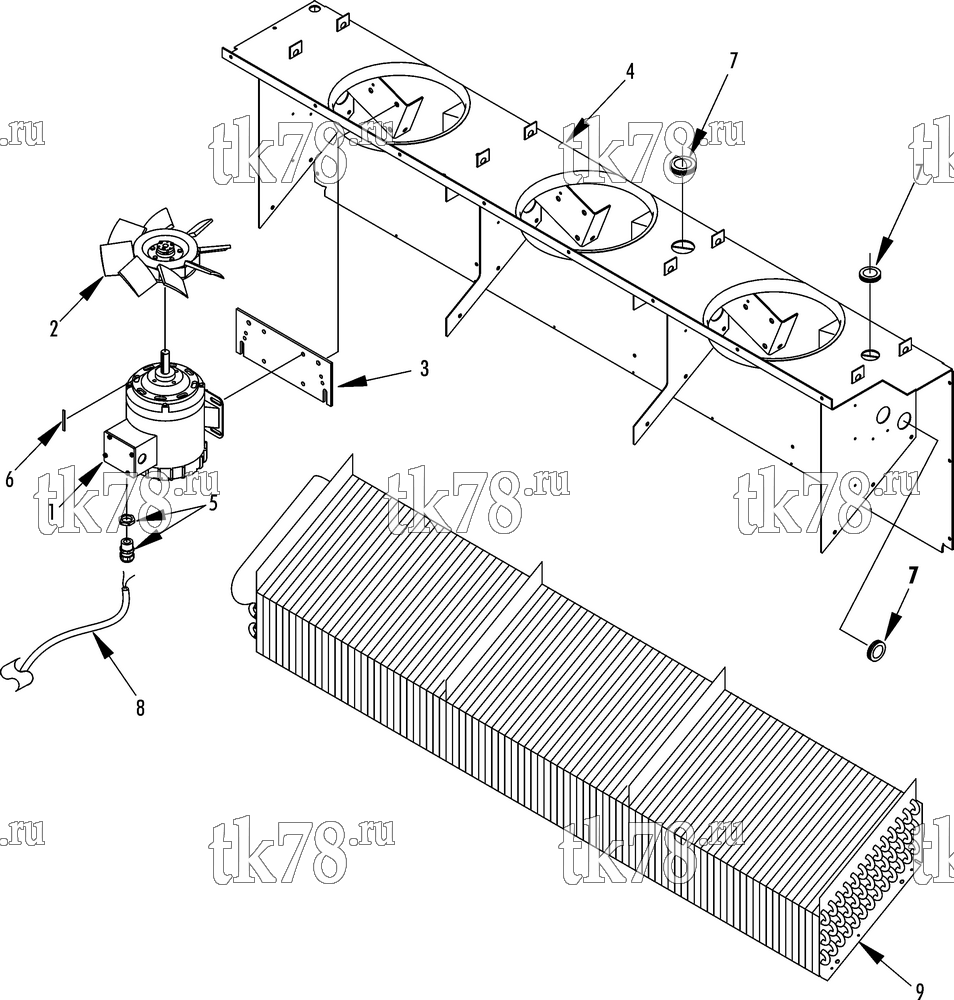

Установкa Thermo King схема EVAPORATOR FAN GROUP – 247D3
Обновление от: 10/10/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-691 | MOTOR - evaporator (two speed, low temp, see 150B11) | 3 | |
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1401 | BEARING - opposite end | 1 | ||
| 44-8340 | TERMINAL | 20 | ||
| 99-4931 | NAMEPLATE - arrow | 3 | ||
| 51-1443 | SCREW - motor | 12 | ||
| 51-1444 | FLATWASHER | 12 | ||
| 51-1429 | LOCKWASHER | 12 | ||
| 55-9152 | INSERT - threaded | 12 | ||
| 2 | 78-1268 | FAN - evaporator (22 deg pitch) | 3 | |
| 3 | 91-8466 | BRACKET - evaporator motor | 3 | |
| 51-1443 | SCREW - bracket | 12 | ||
| 51-1444 | FLATWASHER | 6 | ||
| 4 | 509-1780 | SHROUD - evaporator | 1 | |
| 51-1447 | SCREW - section | 20 | ||
| 5 | 55-5900 | GRIP - harness & sensor | 4 | |
| 6 | 55-2324 | KEY - fan | 3 | |
| 7 | 33-2946 | GROMMET (37 mm) | 4 | |
| 8 | 41-9595 | HARNESS - evaporator motor | 1 | |
| 41-9249 | TERMINAL - fork | 4 | ||
| 9 | 67-1591 | COIL - evaporator (see 146E10) | 1 |
