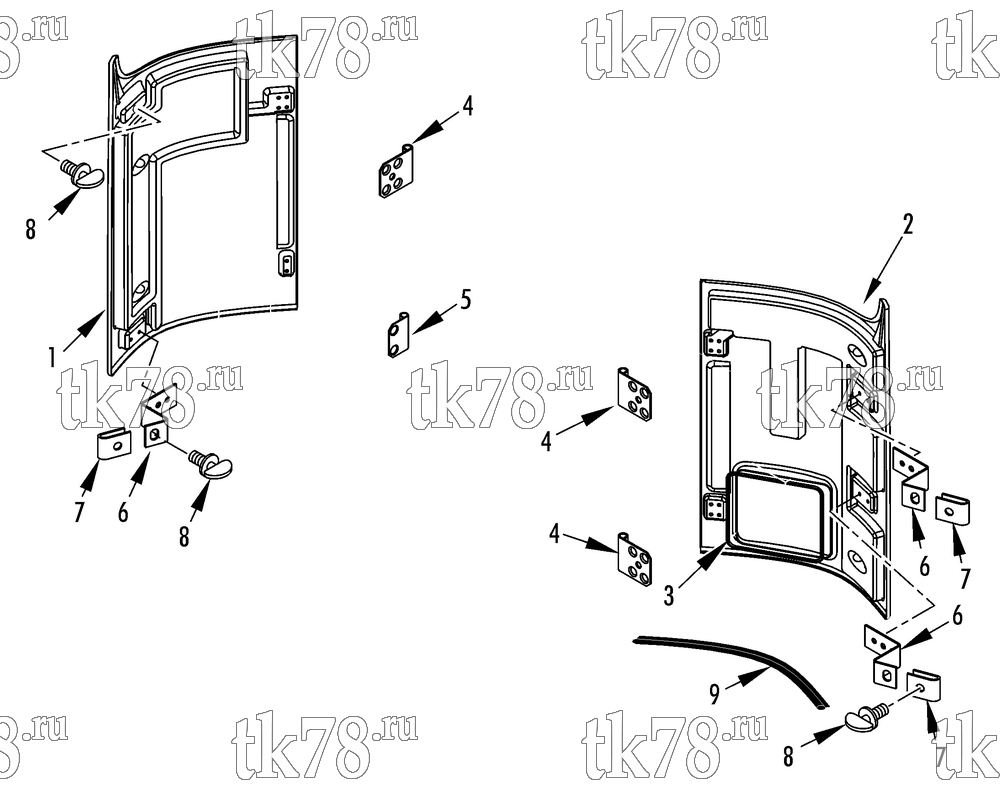

Установкa Thermo King схема LOWER PANELS – 247B7
Обновление от: 7/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5762 | PANEL - curbside (std white) | 1 | |
|
10-98-5762 | Панель | 56 730 ₽ |
|
| 2 | 98-7078 | PANEL - roadside (SR-2 controller, std white) | 1 | |
|
10-98-7078 | Панель | 60 260 ₽ |
|
| 3 | 33-4161 | GASKET - SR-2 door | 1 | |
| 4 | 92-1137 | HINGE - panel | 3 | |
|
10-92-1137 | Петля | 1 590 ₽ |
|
| 5 | 92-1136 | HINGE - panel | 1 | |
|
10-92-1136 | Петля | 1 590 ₽ |
|
| 55-538 | SCREW - hinge | 6 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 6 | ||
| 6 | 92-396 | PLATE - panel fastener | 3 | |
|
20-92-396 | Кронштейн | 2 800 ₽ |
|
| 55-145 | SCREW - plate | 6 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 6 | ||
| 7 | 55-4318 | NUT - U, speed | 3 | |
|
20-55-4318 | Крепеж | 1 730 ₽ |
|
| 55-538 | SCREW - plate | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 8 | 55-3369 | FASTENER - wing screw | 4 | |
|
10-55-3369 | Винт | 1 520 ₽ |
|
| 55-7112 | WASHER - special | 4 | ||
| 9 | 33-3261 | GASKET (cut to length) | A/R |
